基于核磁共振陀螺仪内嵌原子磁强计的三轴剩余磁场测量

doi:10.3969/j.issn.1000-5641.2025.03.010

摘要/Abstract

摘要：

为保证惰性气体原子核拉莫尔进动频率仅由施加的主磁场决定, 必须消除背景剩余磁场, 从而为获得高精度的核磁共振陀螺仪(nuclear magnetic resonance gyroscopes, NMRG)提供保障; 而对剩余磁场的精确测量成了实现这一目标的关键技术之一. 利用内嵌于核磁共振陀螺仪的碱金属原子磁强计, 实现了系统三轴剩余磁场的测量, 得到了相应实验条件下$ x,y,z $轴方向剩余磁场大小, 为最终实现陀螺仪中三轴剩余磁场的有效补偿创造了条件. 此外, 当在$ z $轴方向施加主磁场后, 由于碱金属原子与惰性气体原子发生自旋交换碰撞, 惰性气体原子会极化产生沿$ z $轴方向的等效磁场, 通过利用内嵌原子磁强计可测得该等效磁场. 这将为分析气室内碱金属原子与惰性气体原子自旋交换碰撞、获取费米接触相互作用增强因子等提供重要信息.

关键词: 核磁共振陀螺仪, 磁强计, 剩余磁场, 极化等效磁场

Abstract:

To ensure that the Larmor precession frequency of noble gas nuclei is solely determined by the applied main magnetic field, one must eliminate the residual background magnetic field, thereby providing the foundation for achieving high-precision nuclear magnetic resonance gyroscopes (NMRGs). Hence, accurate measurement of the residual magnetic field is critical for realizing this objective. In this study, the three-axis residual magnetic field is measured using the alkali-metal atomic magnetometer embedded within the NMRG system. Under specific experimental conditions, the magnitudes of the residual magnetic field in the x, y, and z axes are determined, respectively, which create the conditions necessary for effective three-axis residual field compensation in the gyroscope. Furthermore, when the main magnetic field is applied along the z-axis, the noble gas atoms are polarized due to spin-exchange collisions with alkali-metal atoms, thus generating an equivalent magnetic field along the z-axis. This equivalent magnetic field can be measured by using the embedded atomic magnetometer. These findings provide essential insights into spin-exchange collisions between alkali-metal and noble gas atoms, thereby enabling an analysis of the Fermi-contact-interaction enhancement factor and other critical parameters within the cell.

Key words: nuclear magnetic resonance gyroscope(NMRG), magnetometer, residual magnetic field, polarized equivalent magnetic field

中图分类号:

O439

余文彬, 徐信业. 基于核磁共振陀螺仪内嵌原子磁强计的三轴剩余磁场测量[J]. 华东师范大学学报（自然科学版）, 2025, 2025(3): 80-89.

Wenbin YU, Xinye XU. Three-axis residual-magnetic-field measurement based on atomic magnetometer embedded in nuclear magnetic resonance gyroscope[J]. J* E* C* N* U* N* S*, 2025, 2025(3): 80-89.

图/表 11

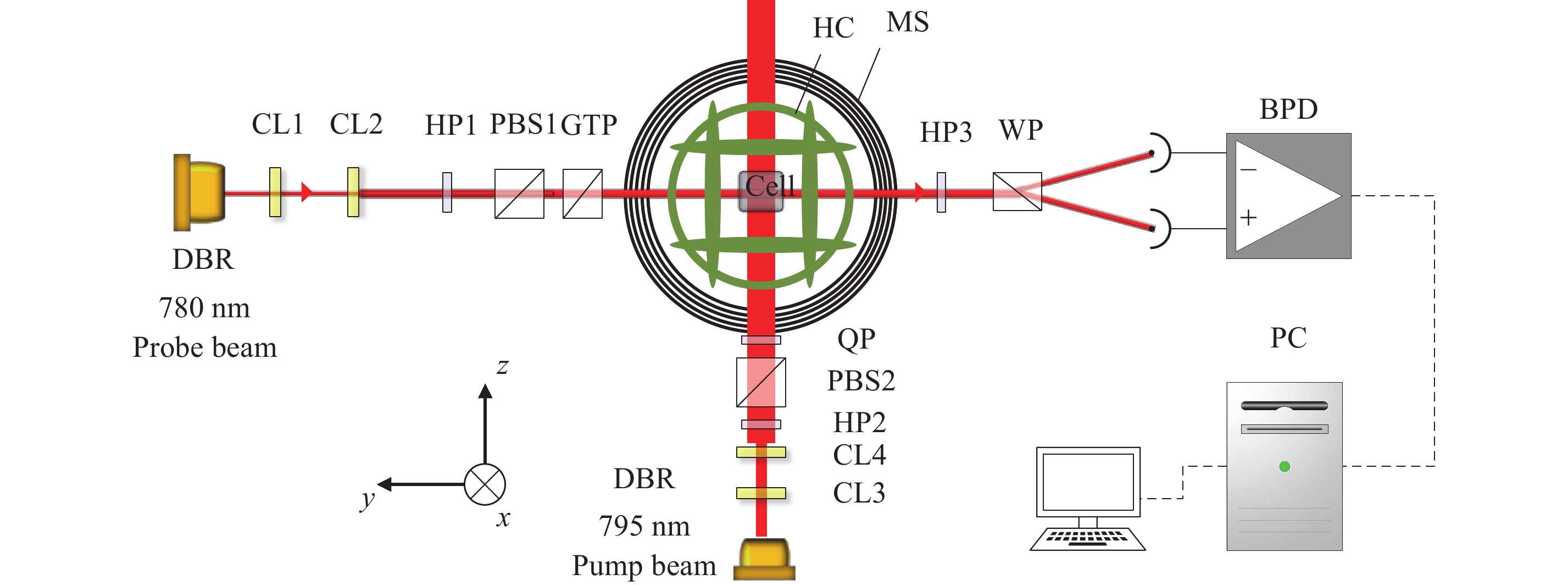

图1

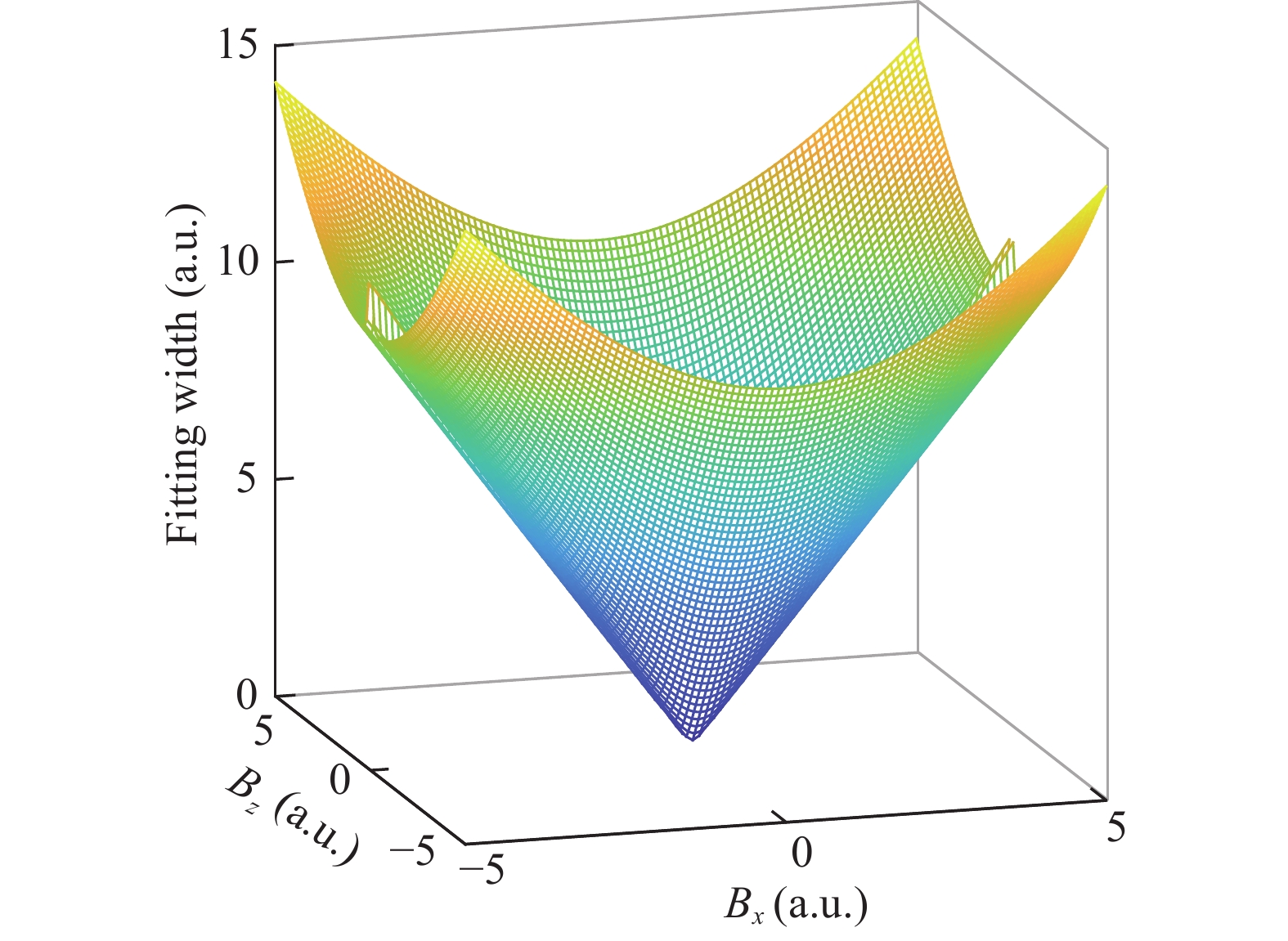

图2

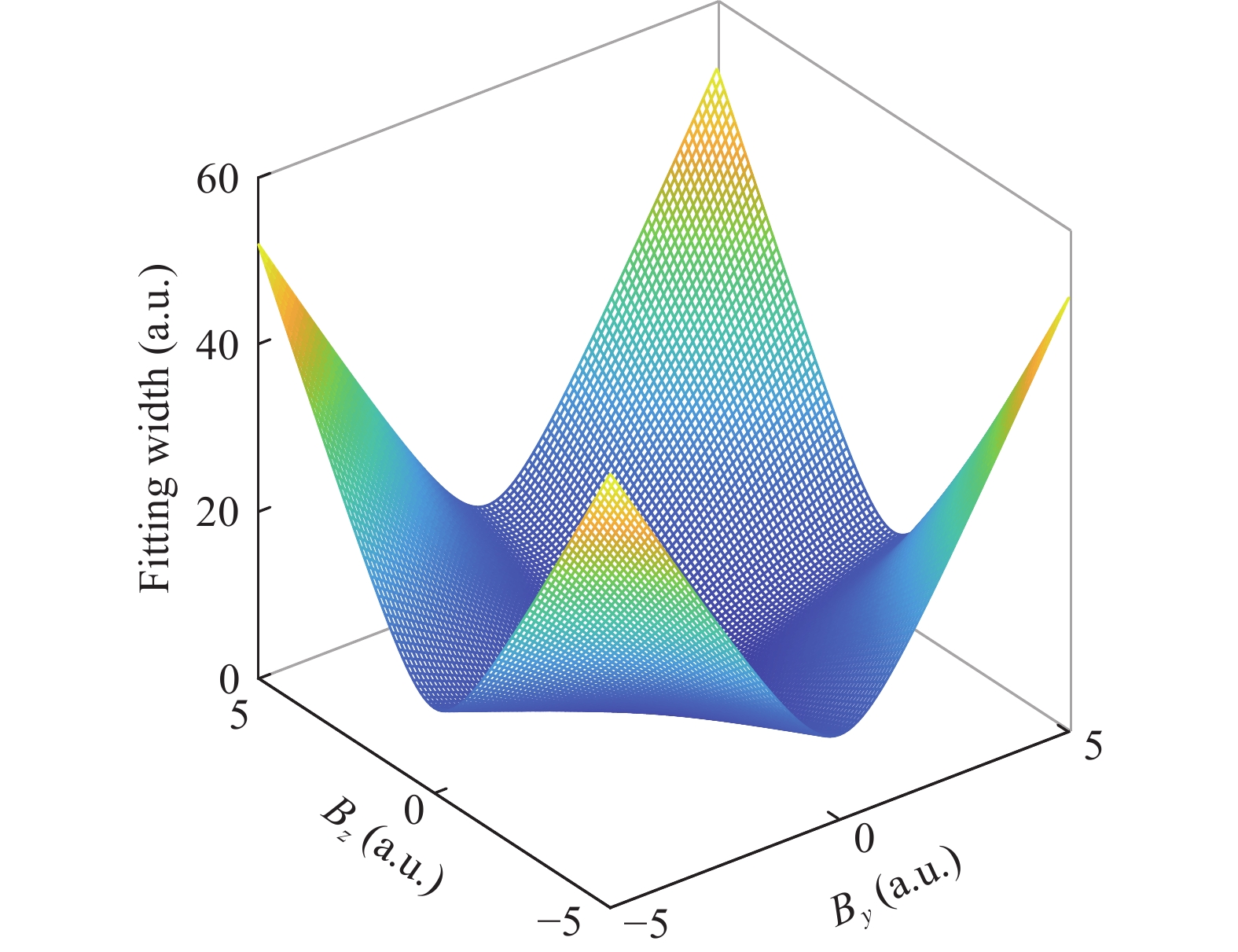

图3

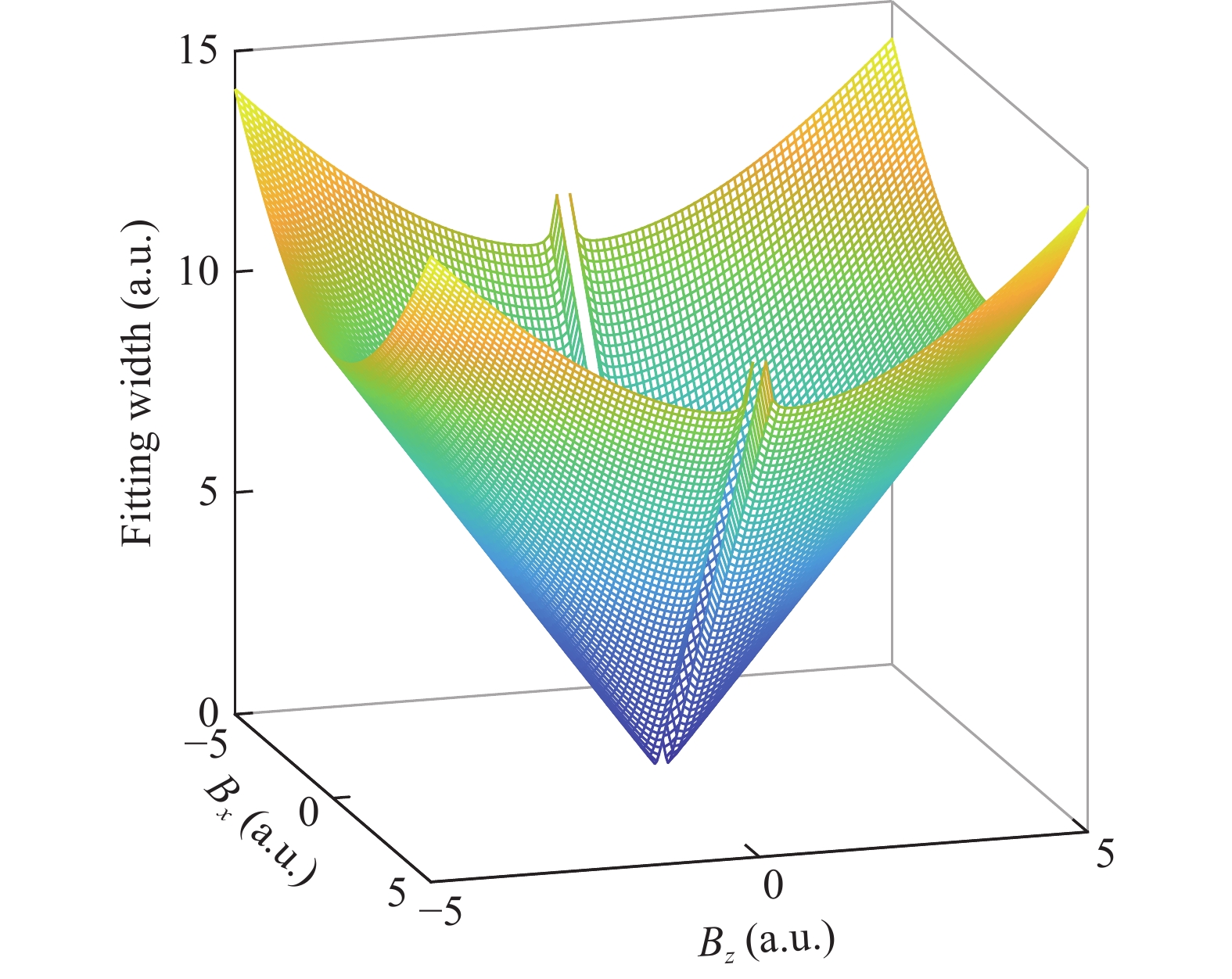

图4

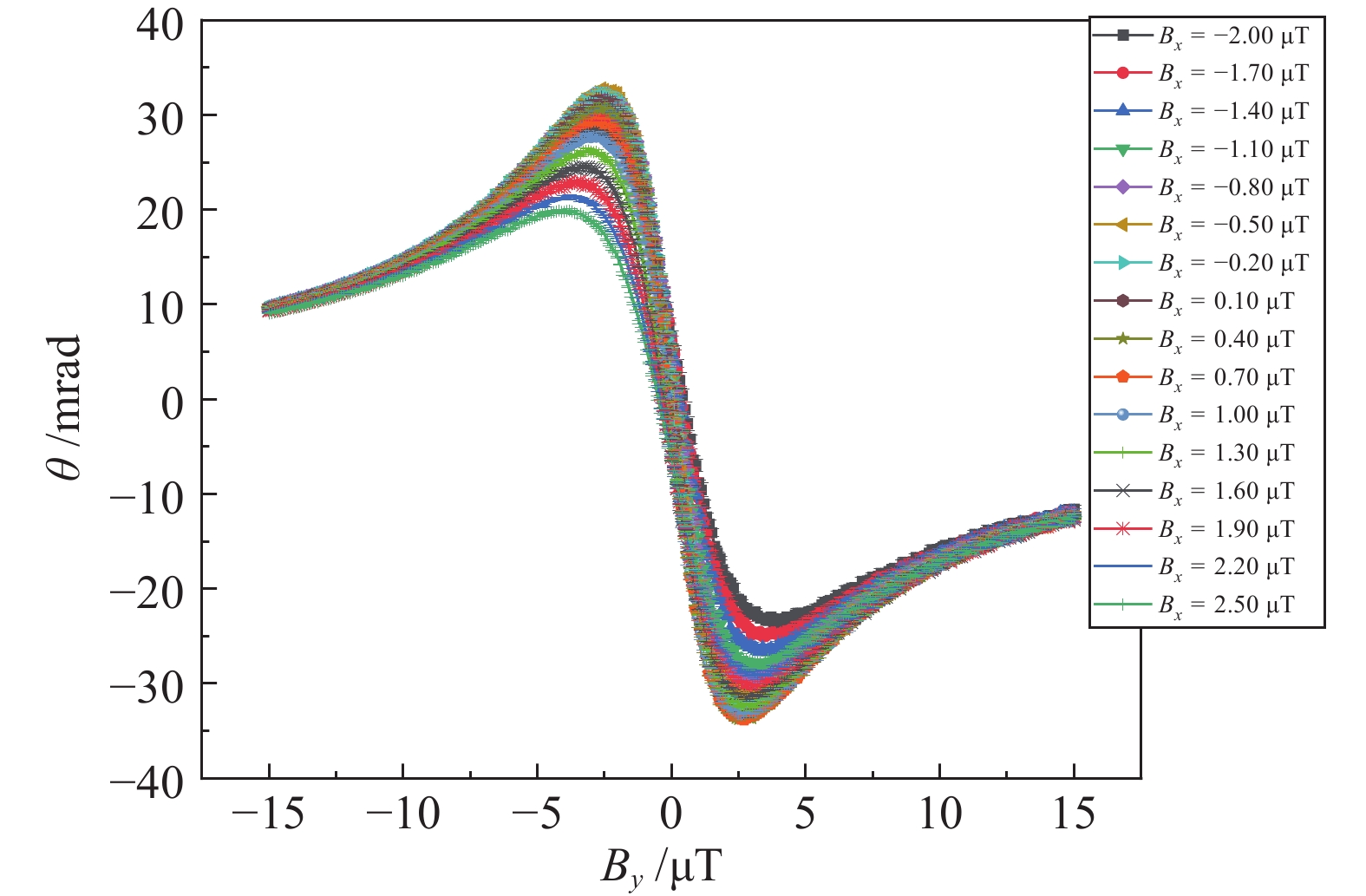

图5

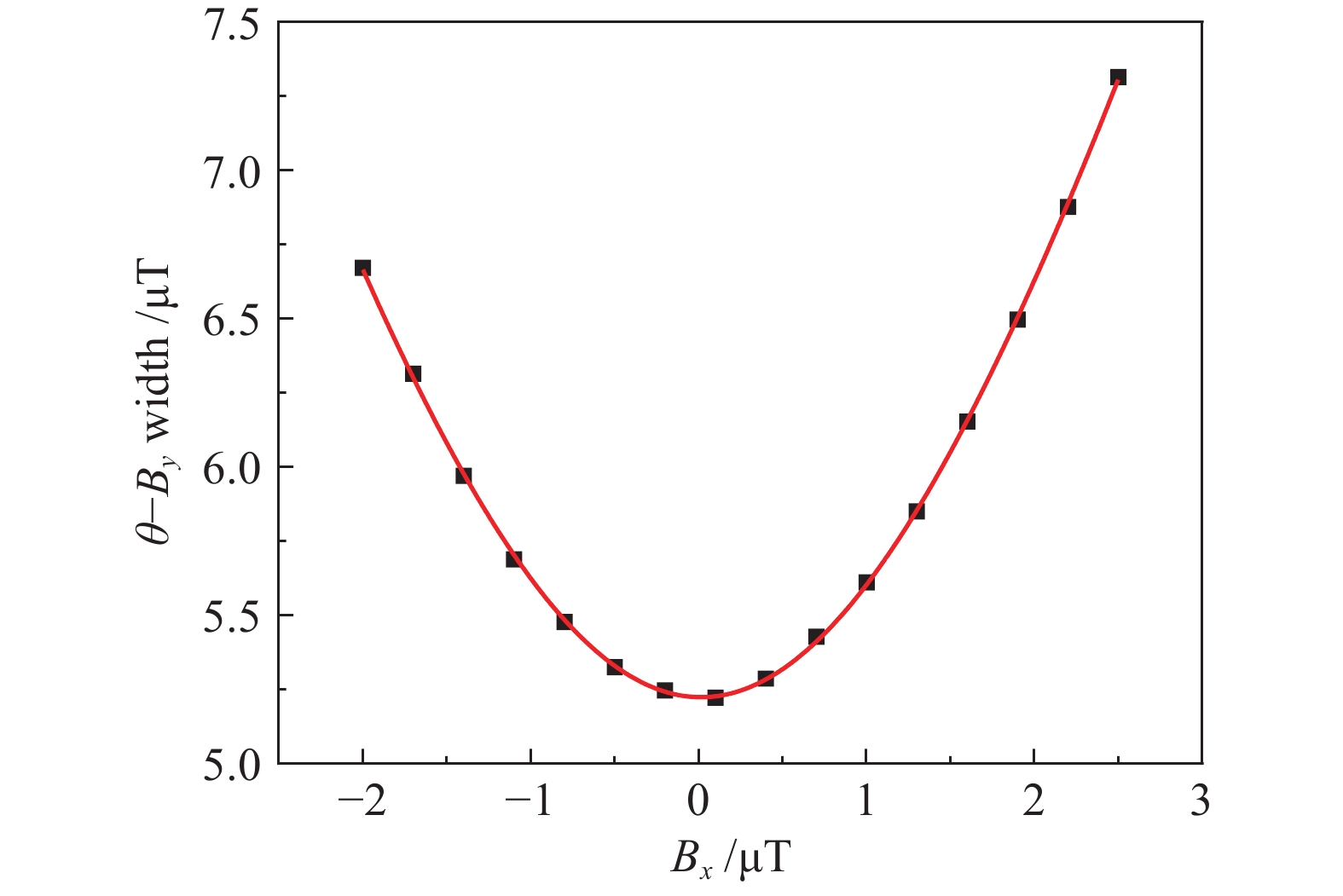

图6

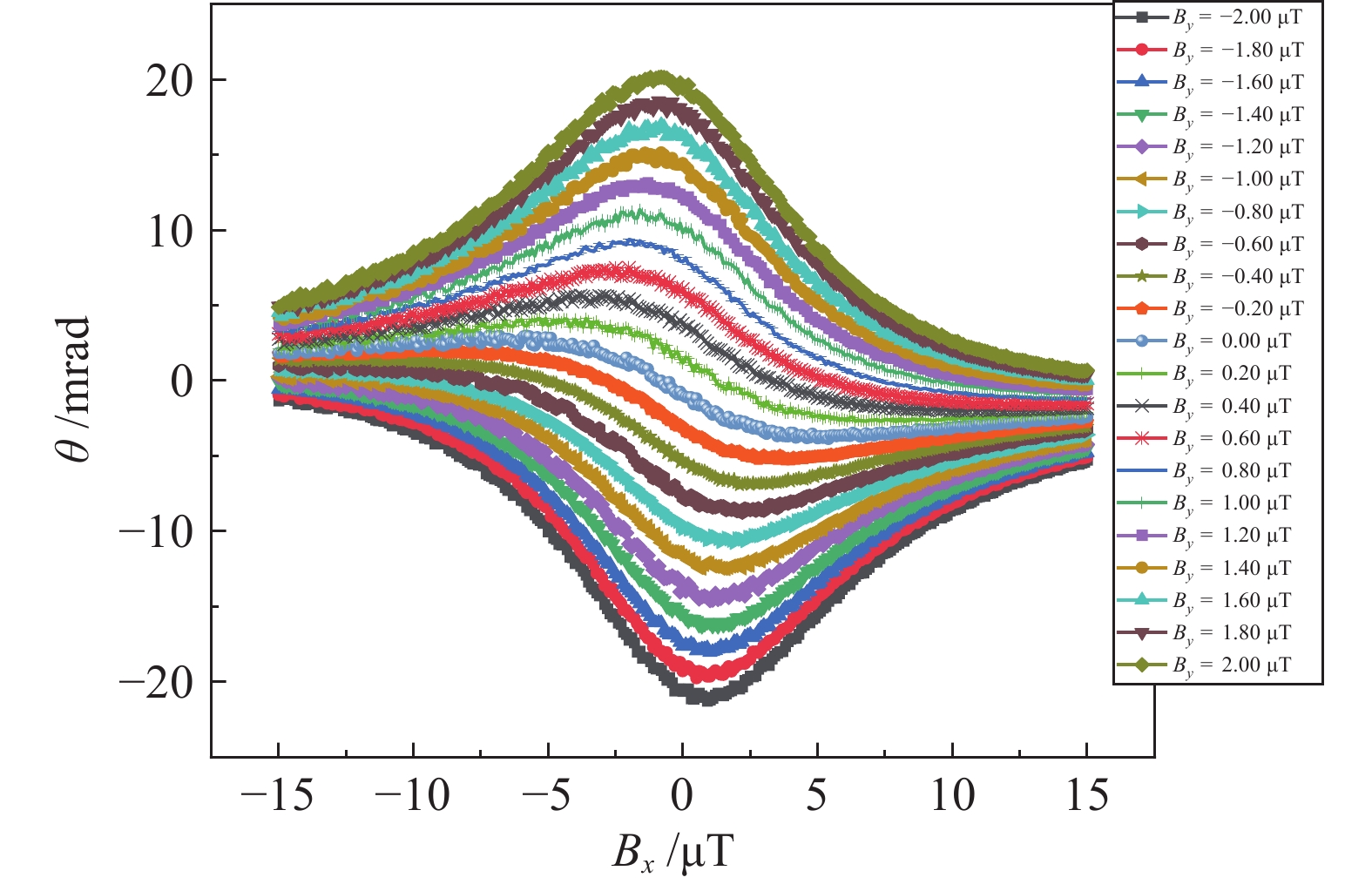

图7

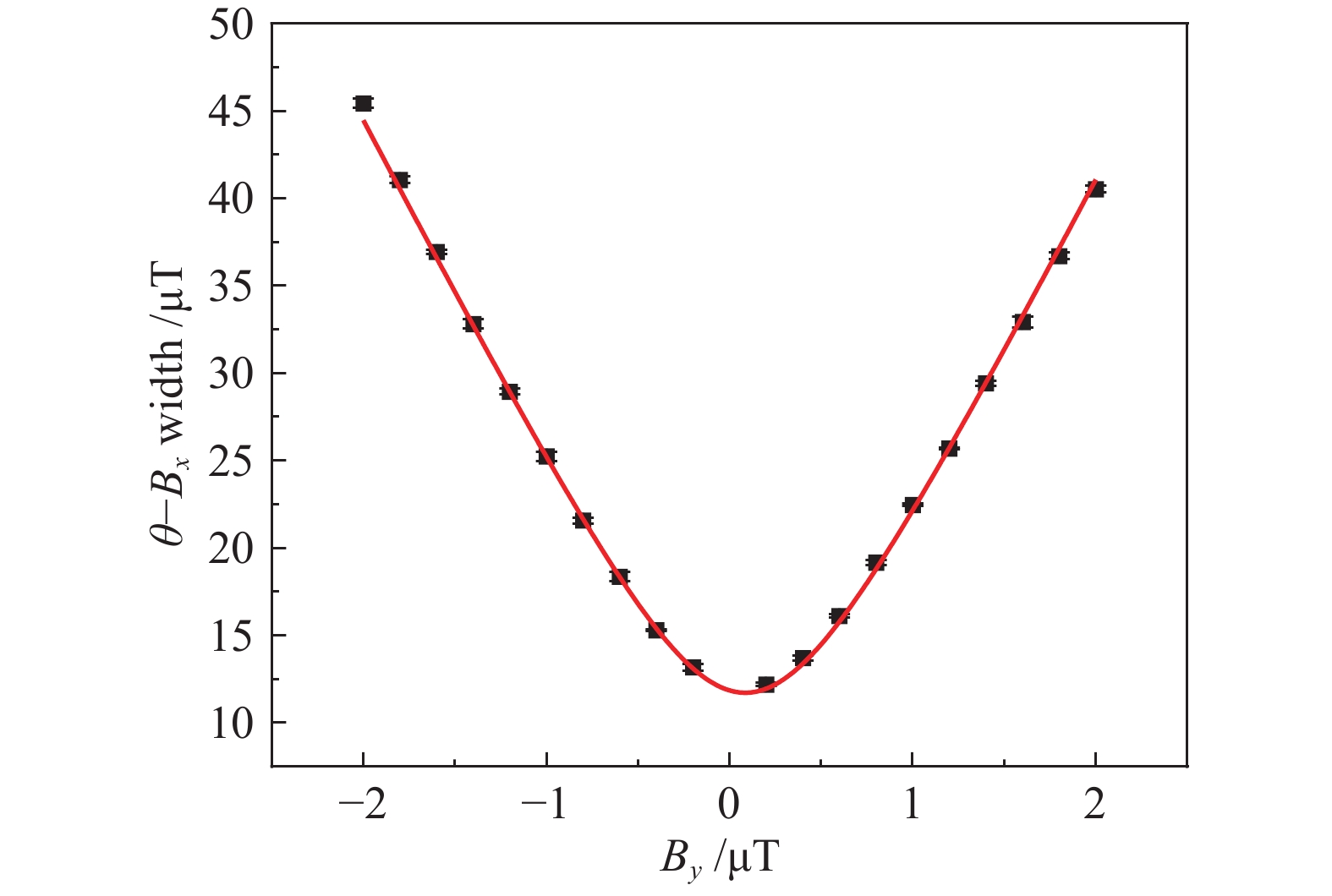

图8

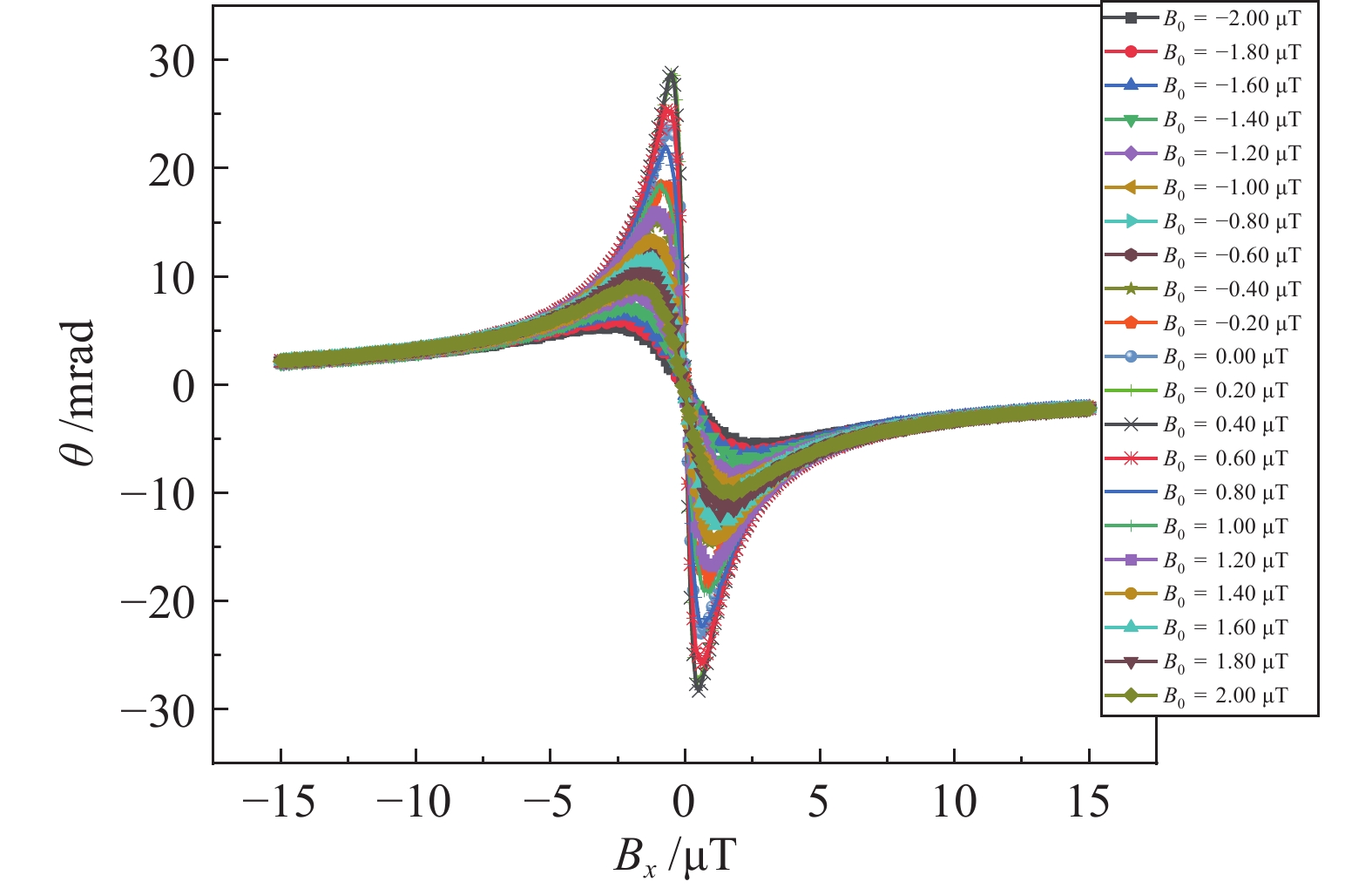

图9

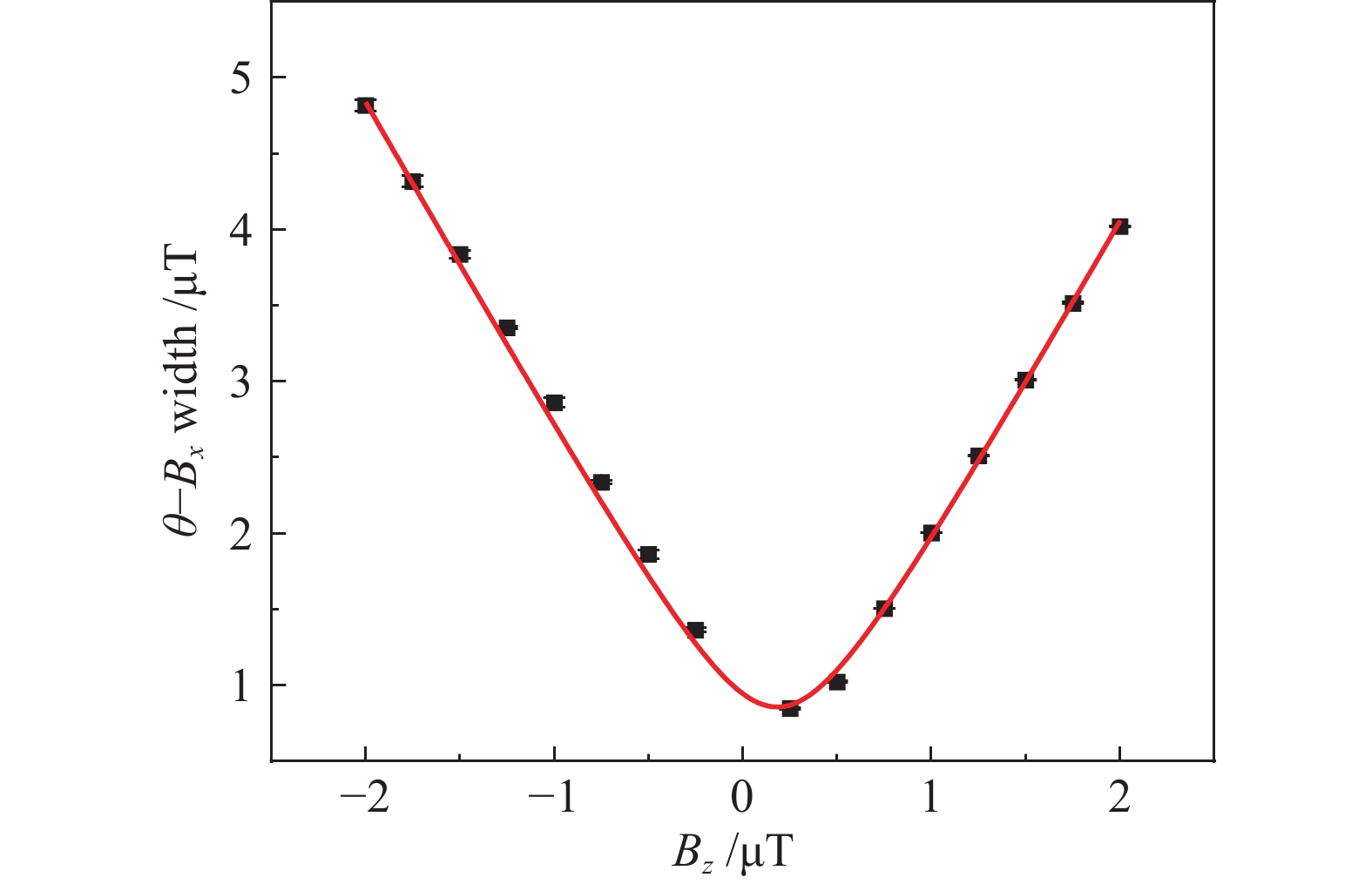

图10

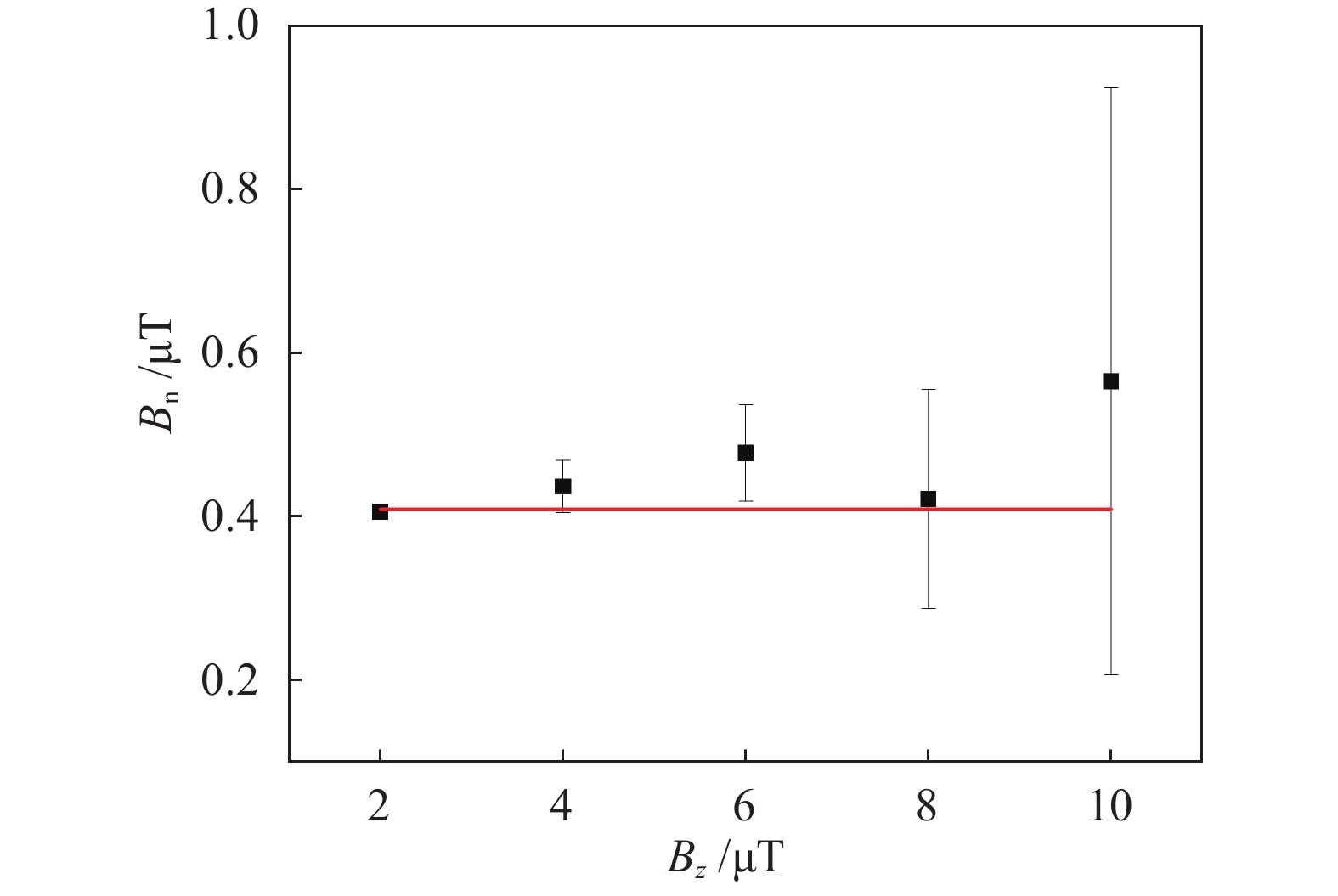

图11

参考文献 25

1	LU Y, ZHAO T, ZHU W, et al.. Recent progress of atomic magnetometers for geomagnetic applications. Sensors, 2023, 23 (11): 5318.
2	KOMINIS I K, KORNACK T W, ALLRED J C, et al.. A subfemtotesla multichannel atomic magnetometer. Nature, 2003, 422 (6932): 596- 599.
3	BOTO E, HOLMES N, LEGGETT J, et al.. Moving magnetoencephalography towards real-world applications with a wearable system. Nature, 2018, 555 (7698): 657- 661.
4	SANDER T H, PREUSSER J, MHASKAR R, et al.. Magnetoencephalography with a chip-scale atomic magnetometer. Biomedical Optics Express, 2012, 3 (5): 981- 990.
5	XIA H, BEN-AMAR BARANGA A, HOFFMAN D, et al.. Magnetoencephalography with an atomic magnetometer. Applied Physics Letters, 2006, 89 (21): 211104.
6	PEI H Y, YU W B, FAN W F, et al.. Bandwidth expansion of atomic spin gyroscope with transient response. IEEE Transactions on Instrumentation and Measurement, 2022, 71 1502308.
7	LIU Y, FAN W F, FU Y, et al.. Suppression of low-frequency magnetic drift based on magnetic field sensitivity in K-Rb-²¹Ne atomic spin comagnetometer. IEEE Transactions on Instrumentation and Measurement, 2022, 71 1501708.
8	ZOU S, ZHANG H, CHEN X, et al.. In-situ triaxial residual magnetic field measurement based on optically-detected electron paramagnetic resonance of spin-polarized potassium. Measurement, 2022, 187, 110338.
9	GAO G, HU J, TANG F, et al.. Stability improvement of nuclear magnetic resonance gyroscope with self-calibrating parametric magnetometer. Physical Review Applied, 2024, 21 (1): 014042.
10	LIMES M E, SHENG D, ROMALIS M V.. ³He-¹²⁹Xe comagnetometery using ⁸⁷Rb detection and decoupling. Physical Review Letters, 2018, 120 (3): 033401.
11	CHU P H, KIM Y J, SAVUKOV I.. Search for an axion-induced oscillating electric dipole moment for electrons using atomic magnetometers. Physical Review D, 2019, 99 (7): 075031.
12	ZHANG X, HU J, ZHAO N.. Stable atomic magnetometer in parity-time symmetry broken phase. Physical Review Letters, 2023, 130 (2): 023201.
13	KORNACK T W. A test of CPT and Lorentz symmetry using a potassium-helium-3 co-magnetometer [D]. Princeton, NJ, USA: Princeton University, 2005.
14	HAO C P, YU Q Q, YUAN C Q, et al.. Herriott-cavity-assisted closed-loop Xe isotope comagnetometer. Physical Review A, 2021, 103 (5): 053523.
15	BULATOWICZ M, GRIFFITH R, LARSEN M, et al.. Laboratory search for a long-range T-odd, P-odd interaction from axionlike particles using dual-species nuclear magnetic resonance with polarized ¹²⁹Xe and ¹³¹Xe gas. Physical Review Letters, 2013, 111 (10): 102001.
16	QIU X, XU Z, PENG X, et al.. Three-axis atomic magnetometer for nuclear magnetic resonance gyroscopes. Applied Physics Letters, 2020, 116 (3): 034001.
17	KORNACK T W, GHOSH R K, ROMALIS M V.. Nuclear spin gyroscope based on an atomic comagnetometer. Physical Review Letters, 2005, 95 (23): 230801.
18	BUDKER D, GAWLIK W, KIMBALL D F, et al.. Resonant nonlinear magneto-optical effects in atoms. Reviews of Modern Physics, 2002, 74 (4): 1153- 1201.
19	GHOSH R K, ROMALIS M V.. Measurement of spin-exchange and relaxation parameters for polarizing ²¹Ne with K and Rb. Physical Review A, 2010, 81 (4): 043415.
20	TORREY H C.. Bloch equations with diffusion terms. Physical Review, 1956, 104 (3): 563- 565.
21	DING Z, YUAN J, LU G, et al.. Three-axis atomic magnetometer employing longitudinal field modulation. IEEE Photonics Journal, 2017, 9 (5) 5300209.
22	SELTZER S J, ROMALIS M V.. Unshielded three-axis vector operation of a spin-exchange-relaxation-free atomic magnetometer. Applied Physics Letters, 2004, 85 (20): 4804- 4806.
23	WU Z, LIU G, LIU Z, et al.. Enhanced transverse nuclear magnetization of an atomic co-magnetometer at the optimal oscillating magnetic field. Measurement, 2023, 217, 113013.
24	WALKER T G, HAPPER W.. Spin-exchange optical pumping of noble-gas nuclei. Reviews of Modern Physics, 1997, 69 (2): 629- 642.
25	SCHAEFER S R, CATES G D, CHIEN T R, et al.. Frequency shifts of the magnetic-resonance spectrum of mixtures of nuclear spin-polarized noble gases and vapors of spin-polarized alkali-metal atoms. Physical Review A, 1989, 39 (11): 5613- 5623.
