Portable high-frequency radar antenna pattern calibration and multiple data quality control methods

doi:10.3969/j.issn.1000-5641.2025.06.014

Abstract

Abstract:

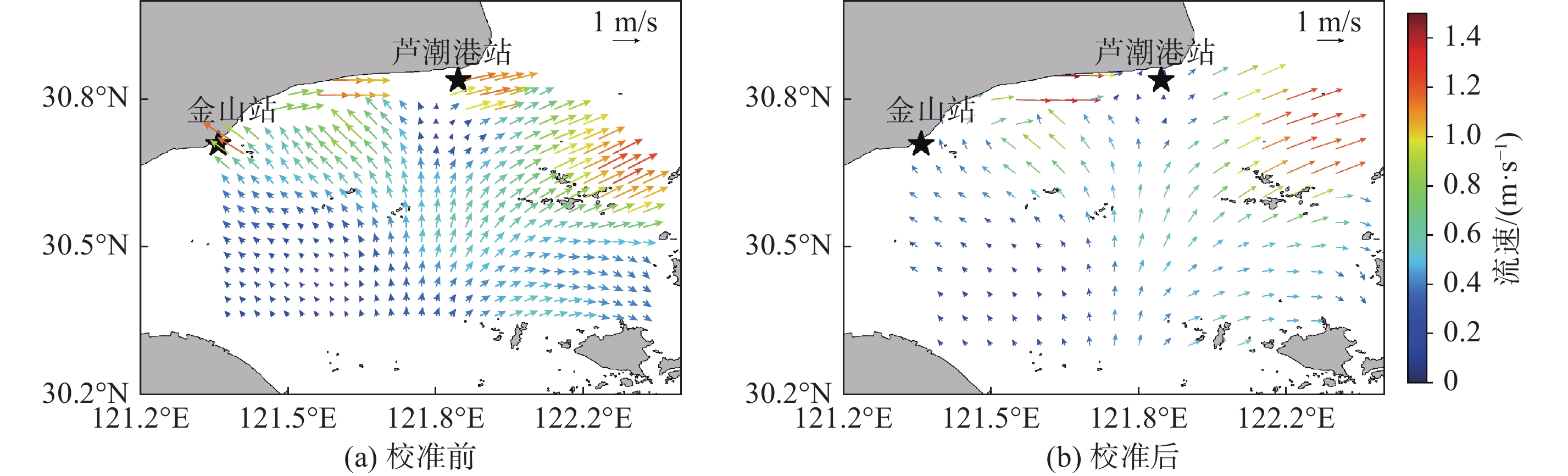

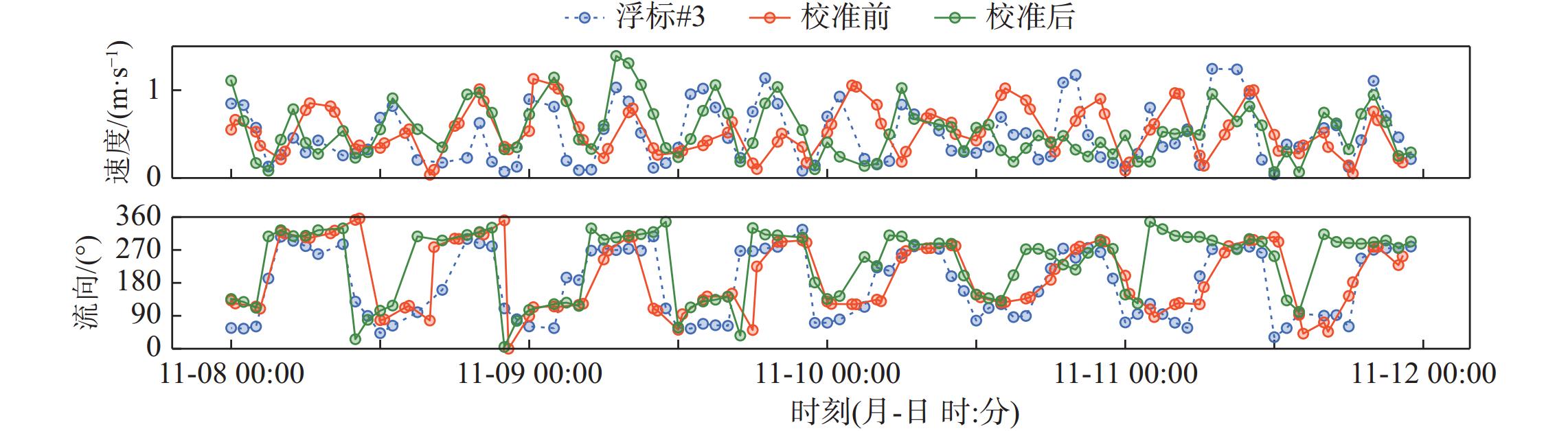

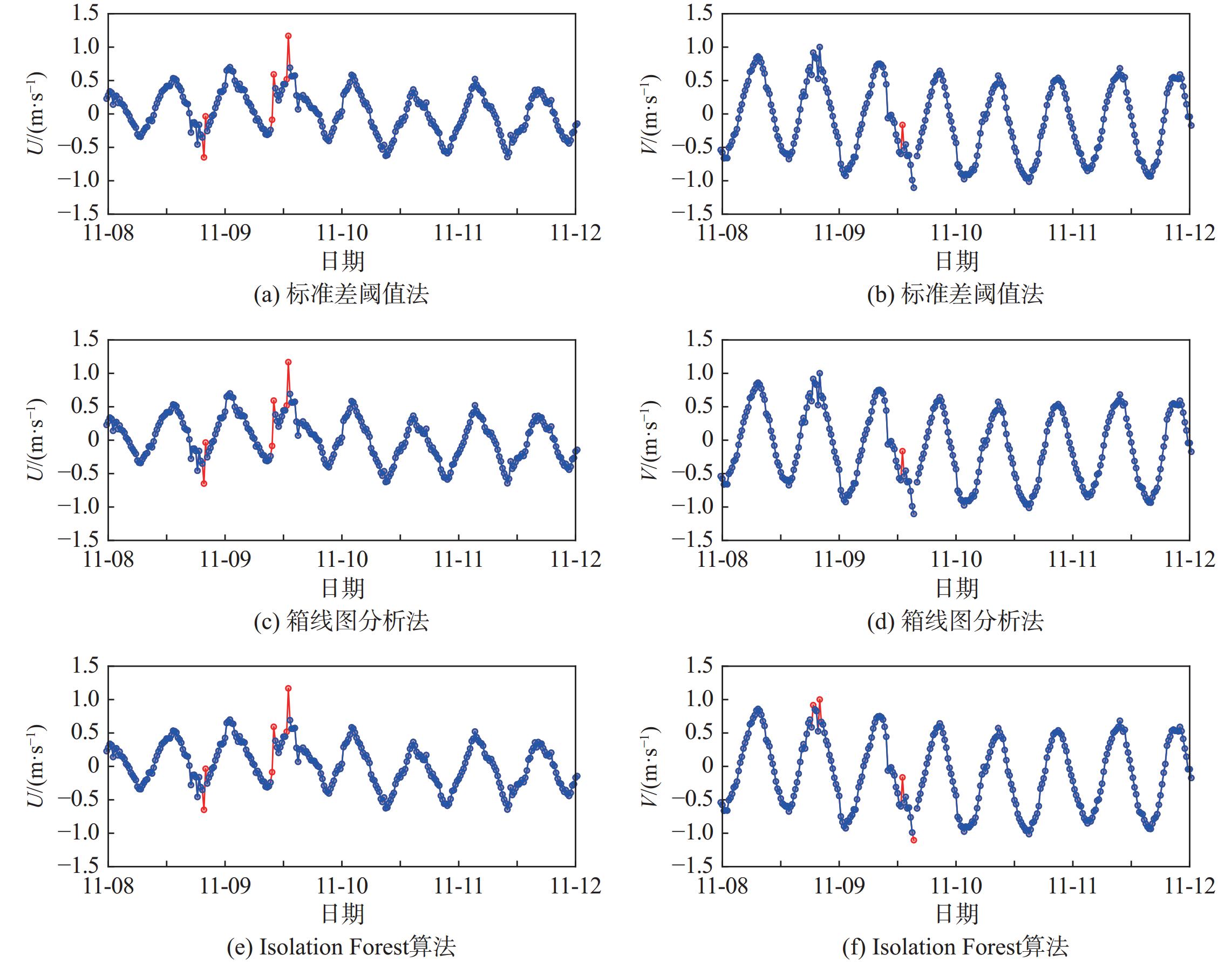

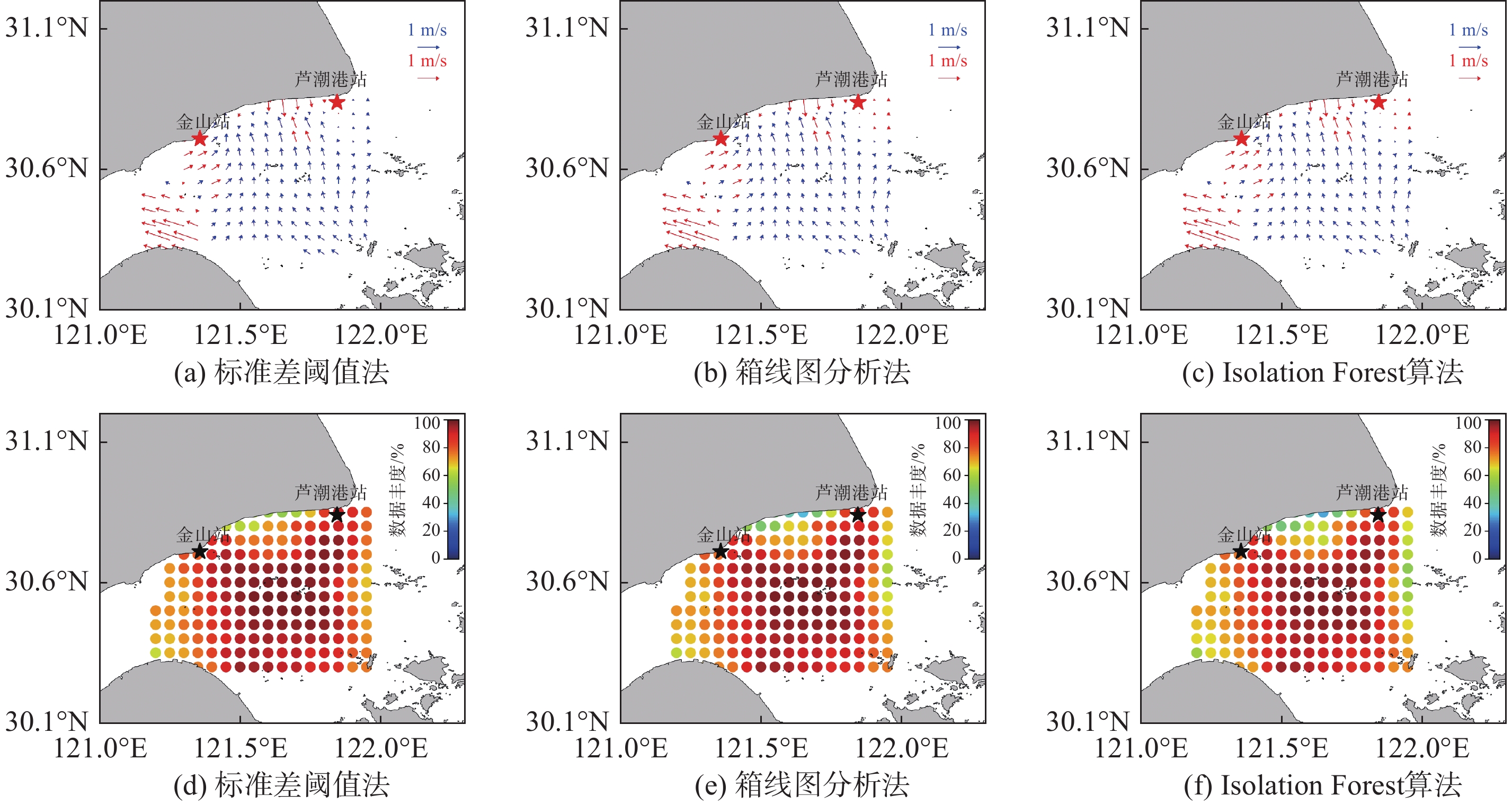

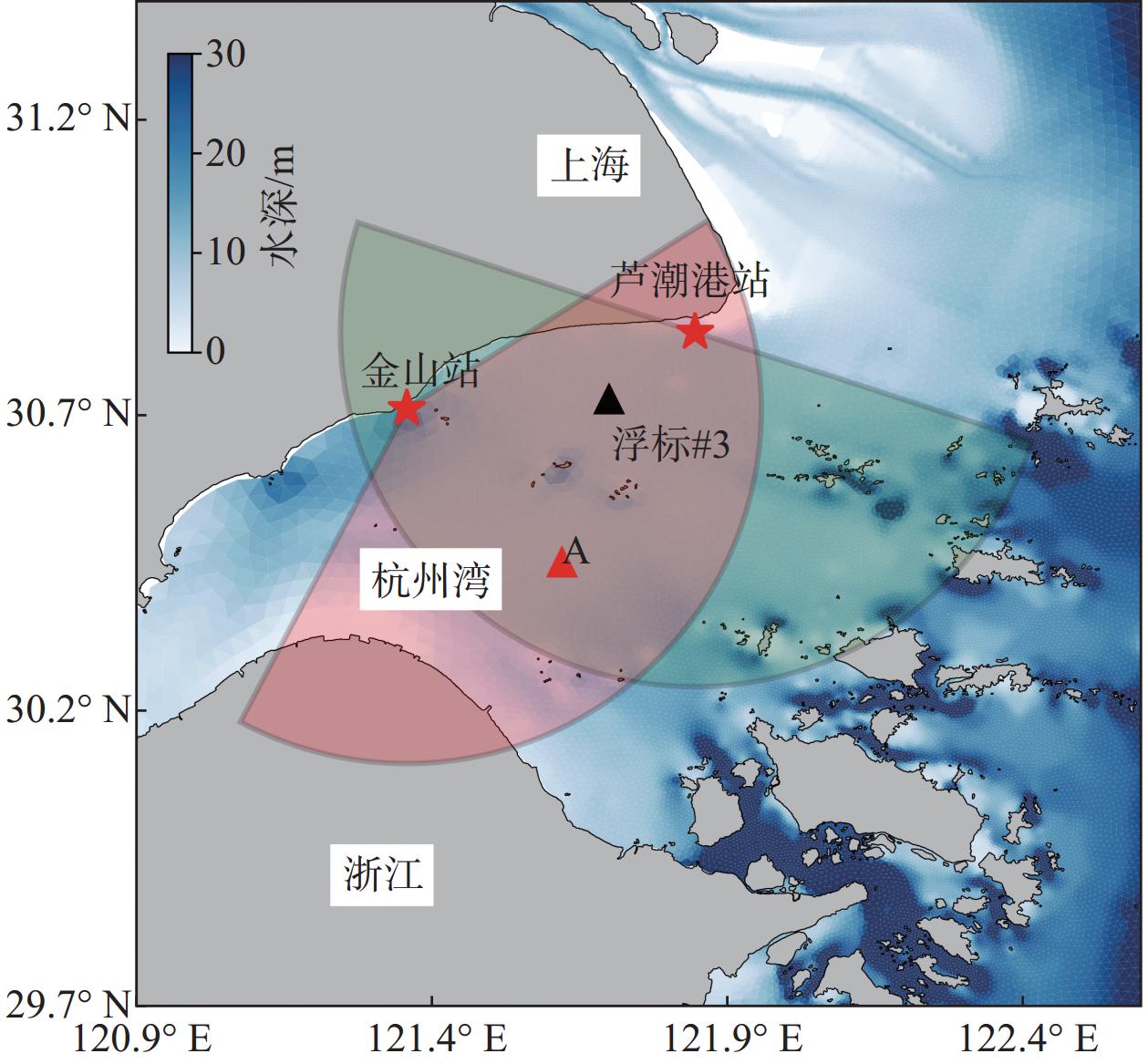

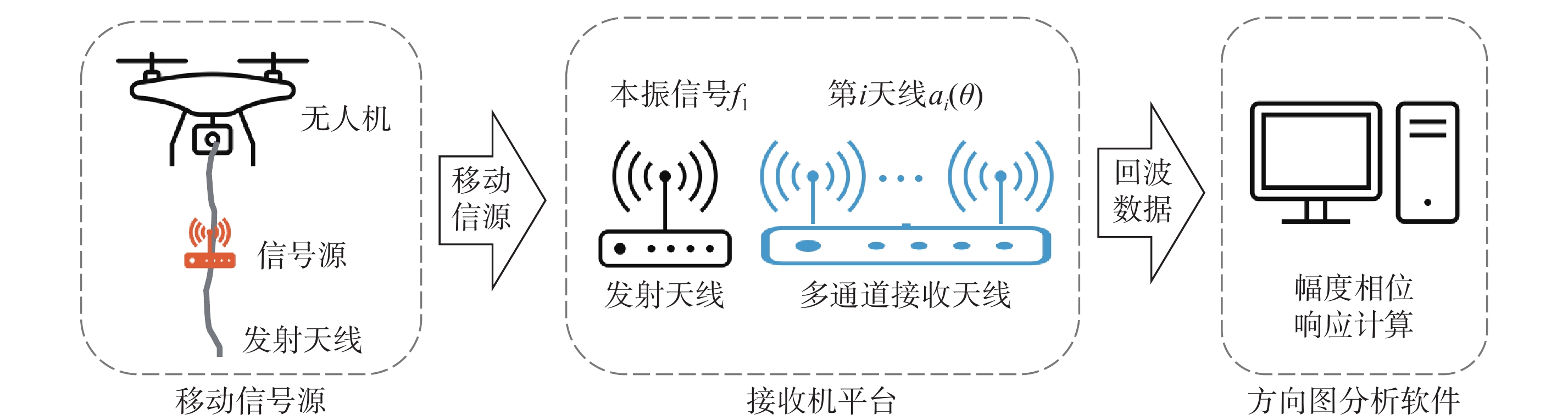

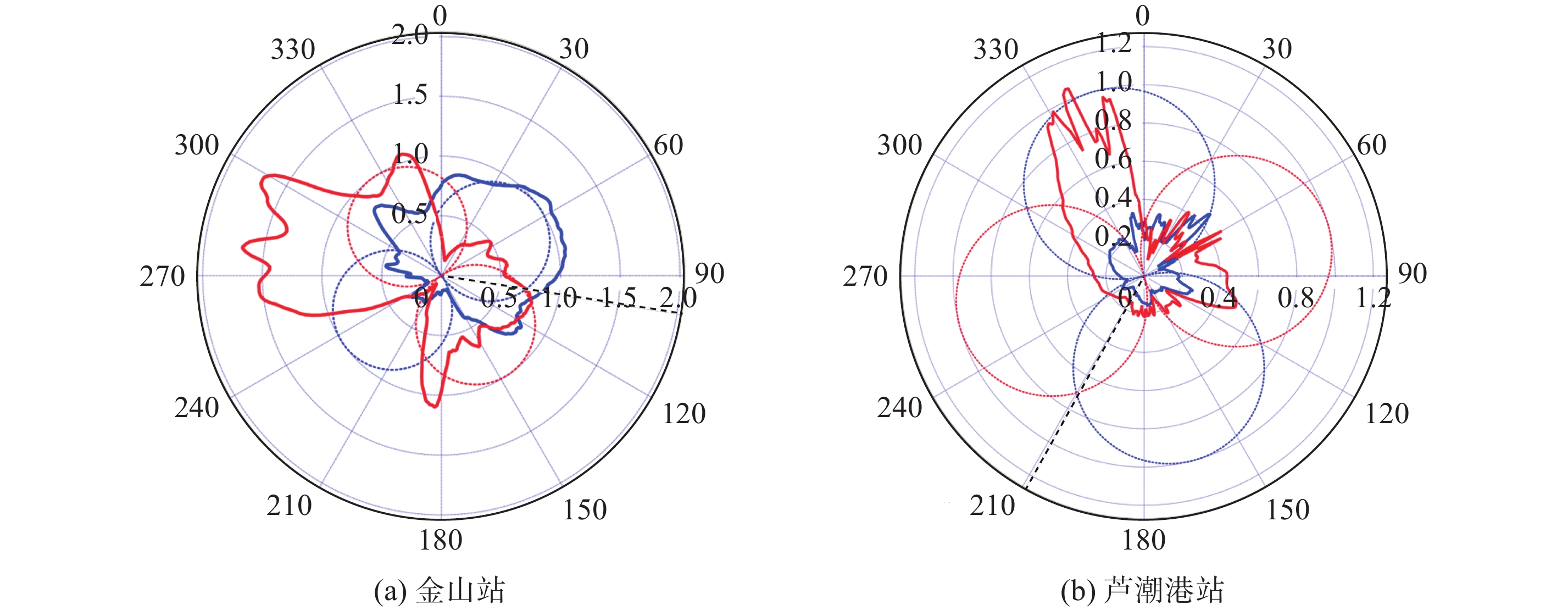

Given their wide coverage, high resolution, and all-weather observational capabilities, high-frequency radars hold considerable potential for ocean current observation and forecasting. In this study, we address two key steps in the radar data processing chain, namely, antenna pattern calibration using an unmanned aerial vehicle (UAV) and anomaly detection using multiple algorithms. A UAV equipped with a beacon–global positioning system was employed for radar antenna pattern calibration. Experiments were conducted at the Jinshan–Luchaogang radar station in Shanghai, China. Following calibration, the root-mean-square errors of current direction and speed decreased by 17.76° and 0.04 m/s, respectively, with corresponding improvements in the correlation coefficients of 0.11 and 0.23. Furthermore, quality control of the radar-derived current data from the Jinshan–Luchaogang area was implemented using three methods: the standard deviation threshold method, boxplot analysis, and Isolation Forest algorithm. All three methods effectively identified anomalies in the marginal and nearshore regions of the observed current fields. Among them, the Isolation Forest algorithm exhibited superior spatiotemporal sensitivity and a broader detection range. These results indicate that combining improvements in the high-frequency radar data quality control with UAV-based antenna calibration can substantially enhance data quality and improve the reliability of high-frequency radar-derived data for ocean dynamic monitoring. Based on these findings, future research is recommended to incorporate multi-source observations and physical constraints to further improve high-frequency radar data quality control and calibration.

Key words: high-frequency radar, antenna pattern calibration, data quality control method, surface current

CLC Number:

TN958.95

Xuyun WU, Pixue LI, Yuqi WANG. Portable high-frequency radar antenna pattern calibration and multiple data quality control methods[J]. J* E* C* N* U* N* S*, 2025, 2025(6): 128-140.

Figures/Tables 9

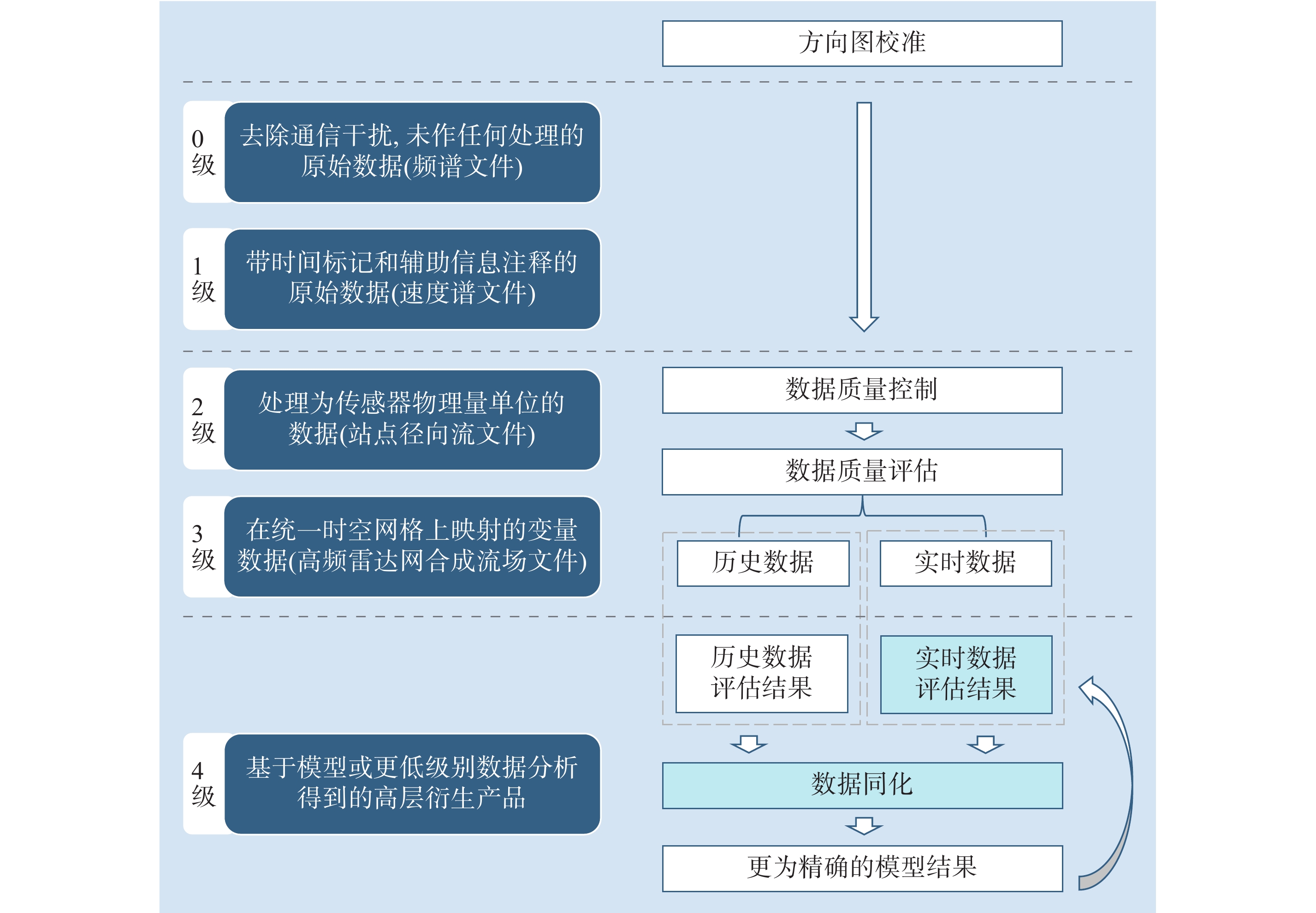

Fig.1

Fig.2

Fig.3

Table 1

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

References 54

1	刘玉龙, 李程, 杨扬, 等.. 舟山海域高频地波雷达表层流探测试验. 海洋通报, 2023, 42 (2): 121- 127.
2	唐诚, 郑向阳, 李艳芳, 等.. 山东半岛北部海洋动力环境的高频地波雷达观测. 海洋科学, 2017, 41 (5): 85- 92.
3	张文雅, 潘广维, 丘仲锋, 等.. 基于高频地波雷达观测的连云港近岸海表流时空特征分析. 人民珠江, 2021, 42 (5): 57- 66.
4	张景思, 吴伦宇, 葛建忠, 等.. 基于高频地波雷达的多时间尺度海流研究. 海洋学报, 2022, 44 (6): 128- 139.
5	许张柳, 吴伦宇, 焦阳, 等.. 高频地波雷达在海洋学中的应用综述. 海洋预报, 2023, 40 (4): 122- 129.
6	赖叶平. 基于紧凑型高频雷达的海洋表面流场探测及海流特性分析 [D]. 武汉: 武汉大学, 2018.
7	COSOLI S, DRAGO A, CIRAOLO G, et al.. Tidal currents in the Malta–Sicily Channel from high-frequency radar observations. Continental Shelf Research, 2015, 109, 10- 23.
8	MANSO-NARVARTE I, CABALLERO A, RUBIO A, et al.. Joint analysis of coastal altimetry and high-frequency (HF) radar data: Observability of seasonal and mesoscale ocean dynamics in the Bay of Biscay. Ocean Science, 2018, 14 (5): 1265- 1281.
9	ZHANG W, EBUCHI N, FUKAMACHI Y, et al.. Sea ice observation with oceanographic HF radar. IEEE Transactions on Geoscience and Remote Sensing, 2020, 58 (1): 378- 390.
10	徐全军, 吴雄斌, 周恒, 等.. OSMAR071G地波雷达对“莫兰蒂” 台风风眼的观测. 海洋技术学报, 2017, 36 (5): 99- 103.
11	ROARTY H, SMITH M, EVANS C, et al. Quality control for a network of SeaSonde HF radars [C]// OCEANS 2014 – TAIPEI, Taipei, China. IEEE, 2014: 1-5.
12	MANTOVANI C, CORGNATI L, HORSTMANN J, et al.. Best practices on high frequency radar deployment and operation for ocean current measurement. Frontiers in Marine Science, 2020, 7, 210.
13	FUJII S, HERON M L, KIM K, et al.. An overview of developments and applications of oceanographic radar networks in Asia and Oceania countries. Ocean Science Journal, 2013, 48 (1): 69- 97.
14	ROARTY H, UPDYKE T, NAZZARO L, et al.. Real-time quality assurance and quality control for a high frequency radar network. Frontiers in Marine Science, 2024, 11, 1352226.
15	赖叶平, 王玉皞, 周浩, 等.. 便携式近程高频地波雷达海流对比试验. 华中科技大学学报(自然科学版), 2020, 48 (5): 32- 36.
16	BARRICK D E, LIPA B J. Using antenna patterns to improve the quality of SeaSonde HF radar surface current maps [C]// Proceedings of the IEEE Sixth Working Conference on Current Measurement, San Diego, CA, USA. IEEE, 1999: 5-8.
17	COSOLI S, MAZZOLDI A, GAČIĆ M.. Validation of surface current measurements in the northern adriatic sea from high-frequency radars. Journal of Atmospheric and Oceanic Technology, 2010, 27 (5): 908- 919.
18	BARRICK D.. First-order theory and analysis of MF/HF/VHF scatter from the sea. IEEE Transactions on Antennas and Propagation, 1972, 20 (1): 2- 10.
19	黄朝. 高频地波雷达阵列DOA估计与幅相误差校正研究 [D]. 广西桂林: 广西师范大学, 2022.
20	KOHUT J T, GLENN S M.. Improving HF radar surface current measurements with measured antenna beam patterns. Journal of Atmospheric and Oceanic Technology, 2003, 20 (9): 1303.
21	PADUAN J D, KIM K C, COOK M S, et al.. Calibration and validation of direction-finding high-frequency radar ocean surface current observations. IEEE Journal of Oceanic Engineering, 2006, 31 (4): 862- 875.
22	EMERY B M, WASHBURN L, WHELAN C, et al.. Measuring antenna patterns for ocean surface current HF radars with ships of opportunity. Journal of Atmospheric and Oceanic Technology, 2014, 31 (7): 1564- 1582.
23	SHI X Z, XU X J, SHI Z H, et al.. Measurements of the cross-loop antenna patterns in high-frequency surface wave radars. IEEE Geoscience and Remote Sensing Letters, 2015, 12 (6): 1272- 1276.
24	WASHBURN L, ROMERO E, JOHNSON C, et al.. Measurement of antenna patterns for oceanographic radars using aerial drones. Journal of Atmospheric and Oceanic Technology, 2017, 34 (5): 971- 981.
25	WHELAN C, EMERY B, TEAGUE C, et al. Automatic calibrations for improved quality assurance of coastal HF radar currents [C]// 2012 Oceans. IEEE, 2012: 1-4.
26	廖一迁, 岳显昌, 吴雄斌, 等.. 基于AIS和Canopy + Kmeans算法的高频雷达阵列幅相校准. 现代雷达, 2023, 45 (9): 9- 15.
27	张东亮, 王心鹏, 王斌, 等.. 高频地波雷达天线方向图校准方法研究. 海洋技术学报, 2022, 41 (5): 53- 59.
28	张苗苗. 高频地波雷达海洋信息反演及质量评估技术研究 [D]. 哈尔滨: 哈尔滨工业大学, 2023.
29	方今, 刘京城.. 基于向量自回归模型的高频地波雷达海流异常值的识别算法研究. 海洋技术学报, 2021, 40 (4): 30- 36.
30	肖江洪, 陈泽宗, 赵晨, 等.. 基于数据同化的高频地波雷达海流数据质量分析方法. 武汉大学学报(理学版), 2017, 63 (3): 213- 218.
31	高玉斌, 岳显昌, 周庆, 等.. 高频地波雷达射频干扰慢时域抑制方法. 雷达科学与技术, 2023, 21 (1): 53- 63.
32	XIE J R, JIANG H, SONG W, et al.. A novel quality control method of time-series ocean wave observation data combining deep-learning prediction and statistical analysis. Journal of Sea Research, 2023, 195, 102439.
33	LE GUEN R. Machine Learning applied to Argo floats temperature and salinity Delayed-Mode Quality Control (Core-Argo DMQC) [R/OL]. French Research Institute for Exploitation of the Sea (IFREMER), 2019.
34	ZHOU Y S, QIN R F, XU H P, et al.. A data quality control method for seafloor observatories: The application of observed time series data in the East China Sea. Sensors, 2018, 18 (8): 2628.
35	RAHMAN A, SMITH D V, TIMMS G. Multiple classifier system for automated quality assessment of marine sensor data [C]// 2013 IEEE Eighth International Conference on Intelligent Sensors, Sensor Networks and Information Processing. IEEE, 2013: 362-367.
36	RAHMAN A, SMITH D V, TIMMS G.. A novel machine learning approach toward quality assessment of sensor data. IEEE Sensors Journal, 2014, 14 (4): 1035- 1047.
37	TIMMS G P, DE SOUZA P A, REZNIK L, et al.. Automated data quality assessment of marine sensors. Sensors, 2011, 11 (10): 9589- 9602.
38	SMITH D, TIMMS G, DE SOUZA P, et al.. A Bayesian framework for the automated online assessment of sensor data quality. Sensors, 2012, 12 (7): 9476- 9501.
39	PETKOVSKI A, SHEHU V. Anomaly detection on univariate sensing time series data for smart aquaculture using K-means, isolation forest, and local outlier factor [C]// 2023 12th Mediterranean Conference on Embedded Computing (MECO). IEEE, 2023: 1-5.
40	魏国妹, 商少平, 贺志刚, 等.. OSMAR-S100便携式高频地波雷达海浪和海面风探测性能分析. 海洋与湖沼, 2016, 47 (1): 52- 60.
41	索炜, 宋旸.. 天线阵方向图无人机测试系统研究. 宇航计测技术, 2018, 38 (1): 42- 47.
42	WASHBURN L, ROMERO E, JOHNSON C, et al. Antenna calibration for oceanographic radars using aerial drones [C]// 2016 IEEE Conference on Antenna Measurements & Applications (CAMA). IEEE, 2016: 1-4.
43	PARKINSON C, WARD A, KING M. Earth Science Reference Handbook: A guide to NASA's earth science program and earth observing satellite missions [R]. Washington, DC: National Aeronautics and Space Administration, 2006.
44	ROARTY H, SMITH M, KERFOOT J, et al. Automated quality control of high frequency radar data [C]// 2012 Oceans. IEEE, 2012: 1-7.
45	LORENTE P, PIEDRACOBA S, FANJUL E A.. Validation of high-frequency radar ocean surface current observations in the NW of the Iberian Peninsula. Continental Shelf Research, 2015, 92, 1- 15.
46	LORENTE P, PIEDRACOBA S, SOTO-NAVARRO J, et al.. Evaluating the surface circulation in the Ebro delta (northeastern Spain) with quality-controlled high-frequency radar measurements. Ocean Science, 2015, 11 (6): 921- 935.
47	LIU F T, TING K M, ZHOU Z H. Isolation forest [C]// 2008 Eighth IEEE International Conference on Data Mining. IEEE, 2008: 413-422.
48	LIU F T, TING K M, ZHOU Z H. On detecting clustered anomalies using SCiForest [C]// Machine Learning and Knowledge Discovery in Databases. Berlin, Heidelberg: Springer, 2010: 274-290.
49	HARIRI S, KIND M C. Batch and online anomaly detection for scientific applications in a Kubernetes environment [C]// Proceedings of the 9th Workshop on Scientific Cloud Computing. ACM, 2018: 1-7.
50	SUSTO G A, BEGHI A, MCLOONE S. Anomaly detection through on-line isolation forest: An application to plasma etching [C]// 2017 28th Annual SEMI Advanced Semiconductor Manufacturing Conference (ASMC). IEEE, 2017: 89-94.
51	张景思. 基于高频地波雷达的海流多时间尺度数据分析与同化研究 [D]. 上海: 华东师范大学, 2022.
52	FERNANDEZ D M, MEADOWS L A, VESECKY J F, et al.. Surface current measurements by HF radar in freshwater lakes. IEEE Journal of Oceanic Engineering, 2000, 25 (4): 458- 471.
53	TAN Y H, TIAN H, JIANG R Z, et al. A comparative investigation of data-driven approaches based on one-class classifiers for condition monitoring of marine machinery system [J]. Ocean Engineering, 2020, 201: 107174.
54	XU H Z, PANG G S, WANG Y J, et al. Deep isolation forest for anomaly detection [J]. IEEE Transactions on Knowledge and Data Engineering, 2023, 35(12): 12591-12604.

参数名	取值	含义及设定依据
树数量	100	100 棵被证明可兼顾效率与稳定性
子样本大小$ \boldsymbol{\psi } $	/	取样本总数与 256 的最小值, 每棵树的最大深度$ h_{\mathrm{m}\mathrm{a}\mathrm{x}}=\lceil\mathrm{l}\mathrm{o}\mathrm{g}_2\left(\mathit{ \boldsymbol{\psi } }\right)\rceil $
异常点比例	/	算法根据训练数据自动推断
特征子集比例	1.0	使用全部特征
随机种子	None	不固定种子
