黄河口海上光伏场区潮位高精度预报

doi:10.3969/j.issn.1000-5641.2025.04.016

摘要/Abstract

摘要：

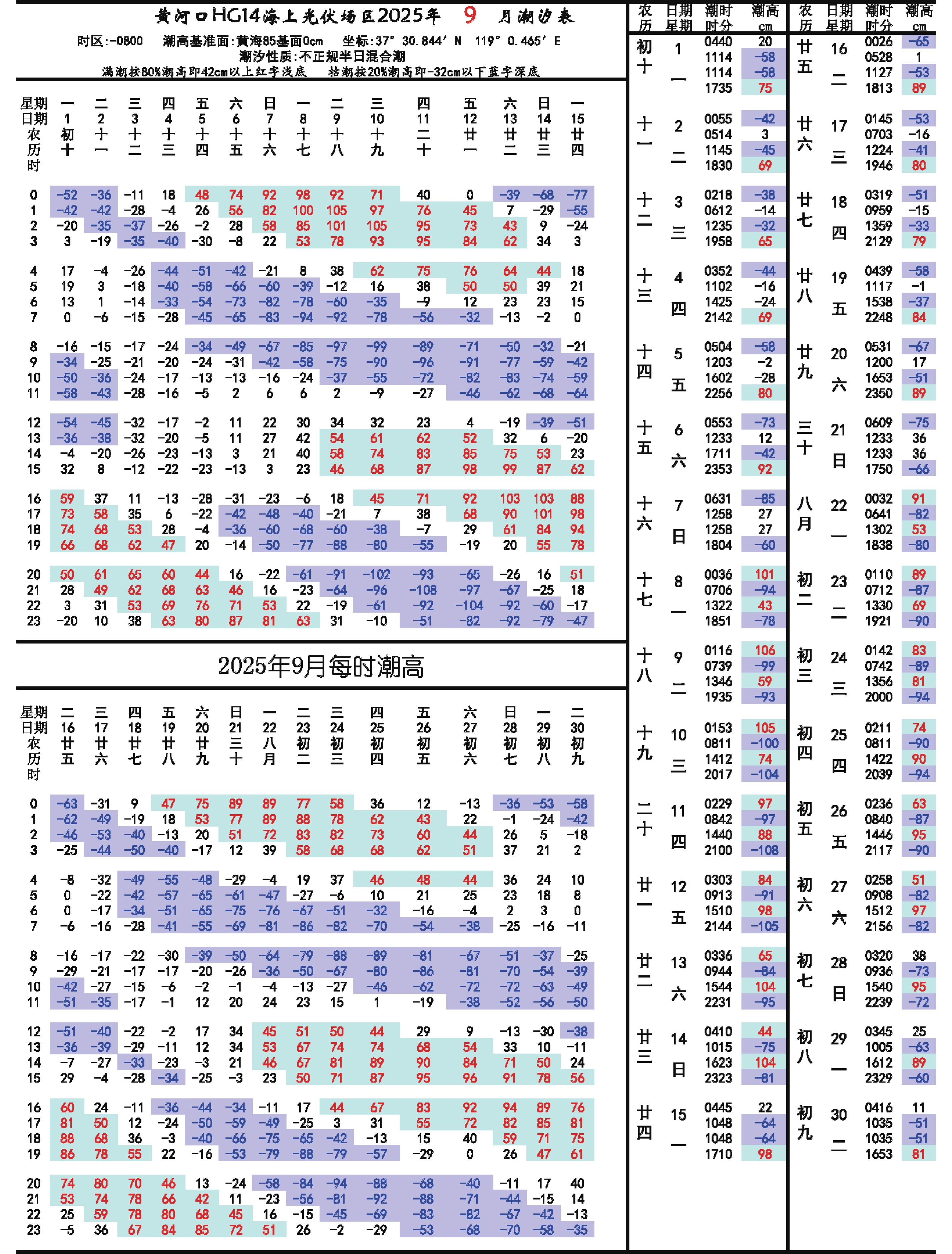

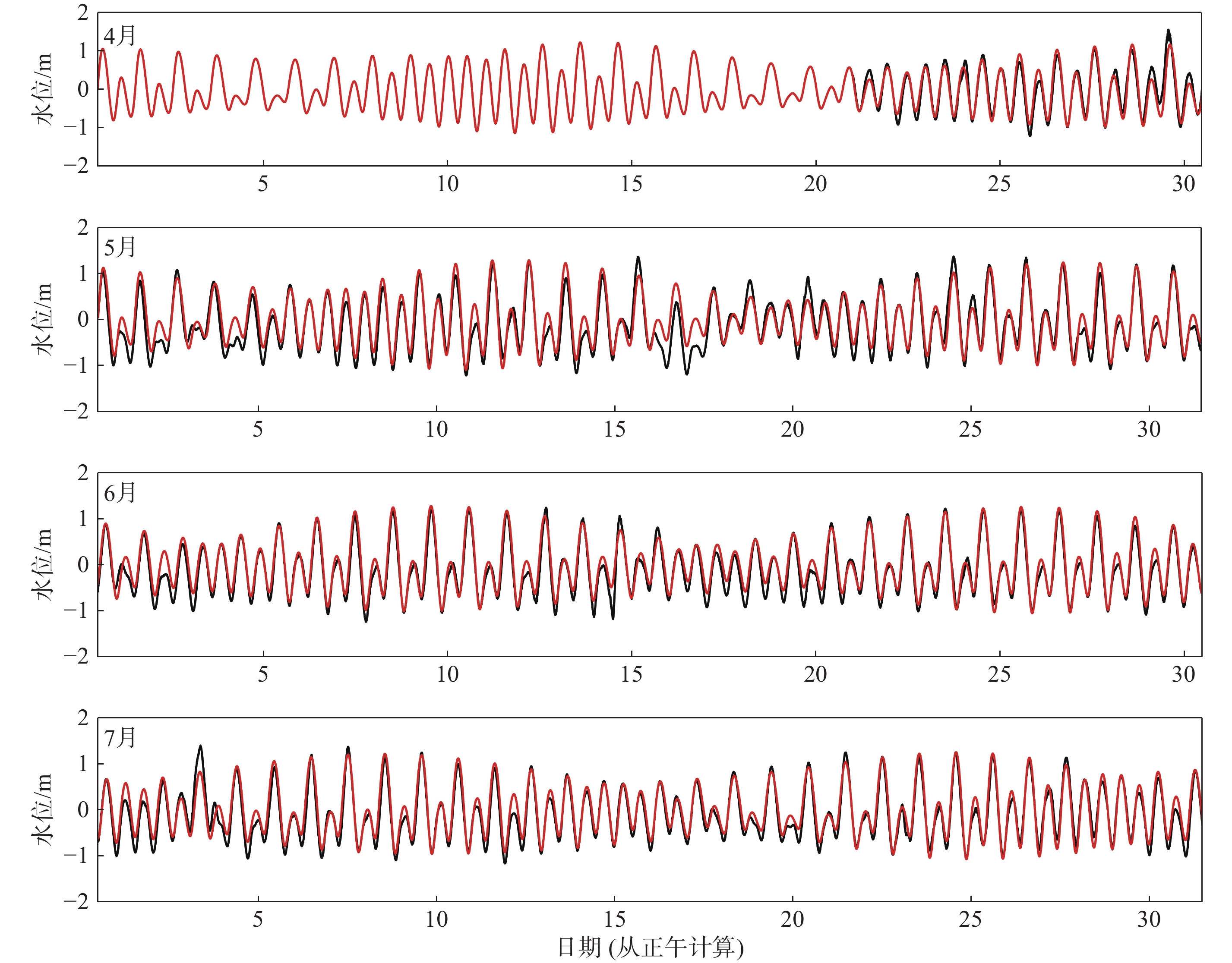

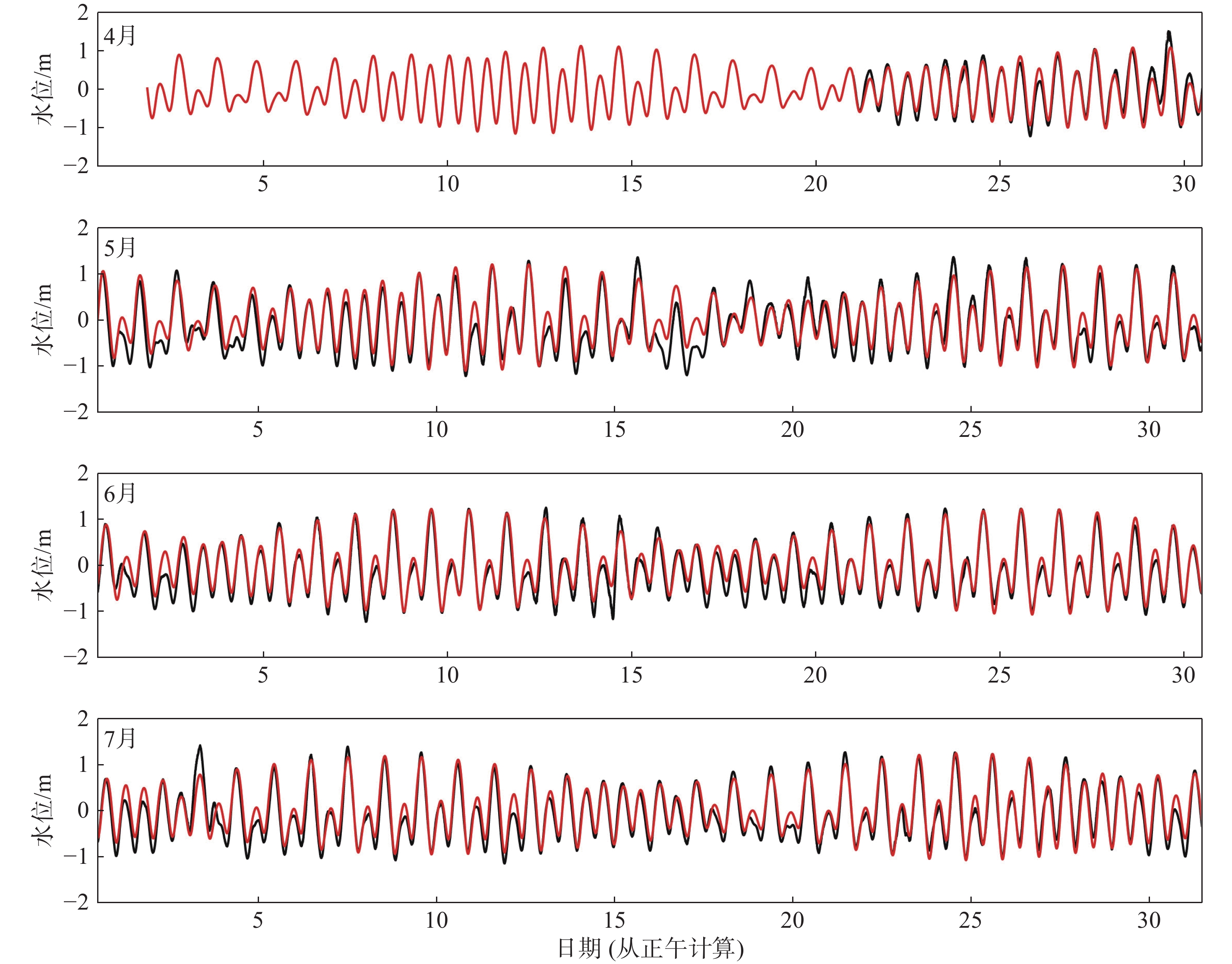

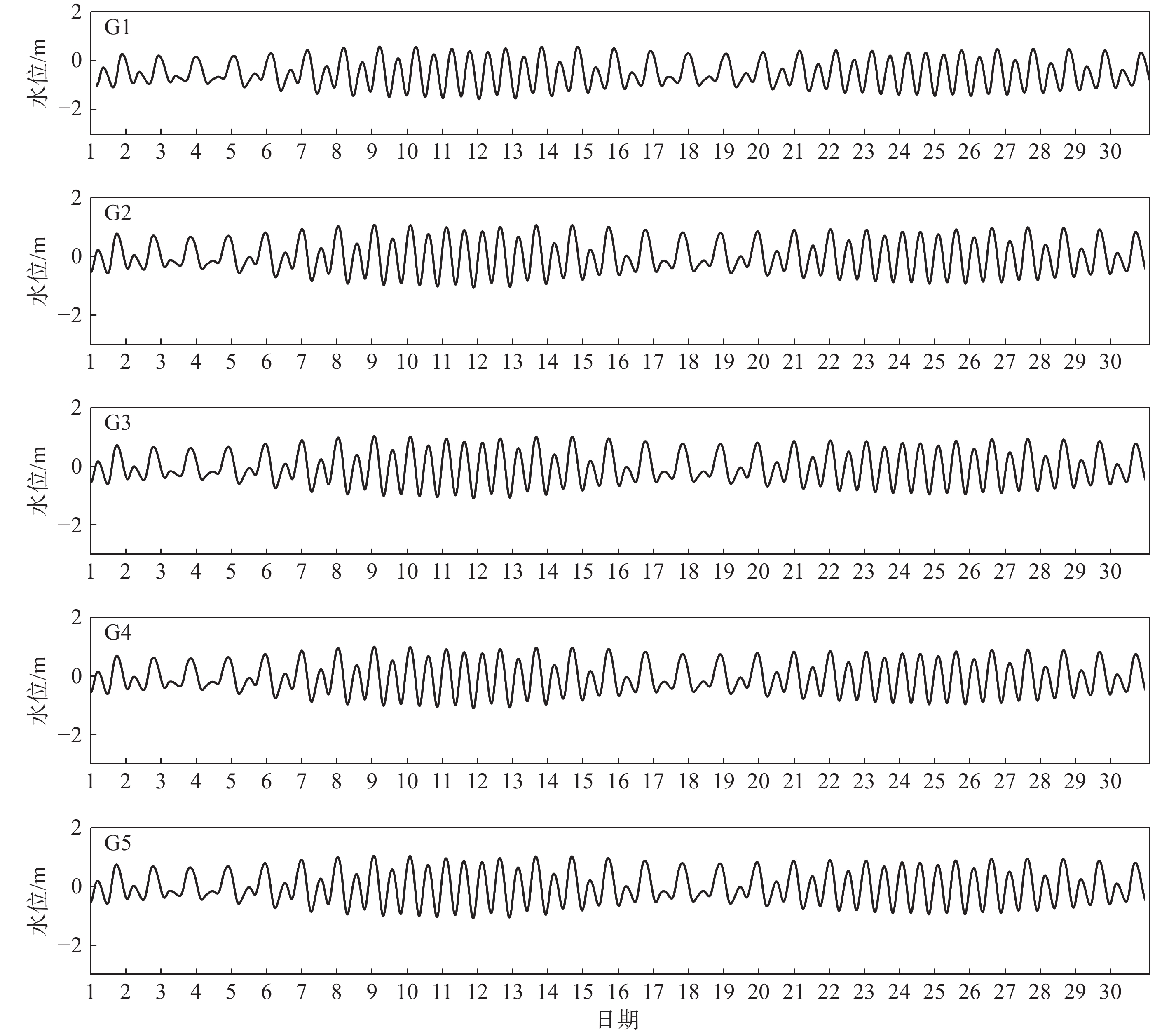

在超浅海建造海上光伏场区, 需要开展潮位预报以保障施工船只的安全和工程顺利进行. 在黄河口HG14海上光伏场区开展了连续3个多月的潮位观测, 基于实测潮位数据, 进行潮汐调和分析, 开展测站潮汐调和分析预报, 以及建立渤海水动力模型, 并在模型验证的基础上开展潮位数值预报. 实测潮位资料表明, 光伏场区潮汐为不规则半日混合潮, 潮汐日不等明显, 最大潮差约为2.0 m. 经11个主要分潮的调和分析, 振幅从大到小的次序为M₂、K₁、O₁、S₂、K₂、P₁、N₂、M₄、Q₁、MS₄、M₆, 振幅分别为62.28、26.27、22.06、20.87、7.49、6.64、6.36、5.11、4.28、1.47、0.65 cm. 其中, M₂分潮振幅最大, 为62.28 cm, 是第二大K₁振幅(26.27 cm)的约2.4倍, 半日分潮S₂振幅20.87 cm比全日潮K₁、O₁小. 在3个浅水分潮中, M₄最大, MS₄和M₆小得多. 在得到主要分潮调和常数后, 给出了测站的调和分析潮汐预报. 结果表明, 调和分析预报潮位与实测潮位吻合良好, 调和分析预报潮位和数值模拟潮位与实测潮位的对比技术分数分别为0.96、0.97, 两者均能高精度预报潮位. 应用验证的数值模型模拟和预报了光伏场区模型输出点潮位, 给出了各月潮位随时间变化图和潮汐表. 光伏场区潮汐日不等小潮期间十分明显, 低潮位比大潮期间明显偏高. 潮汐表给出了输出点公历、农历、星期共3种日期每天每小时的潮位, 以及每日两次的高潮位、低潮位及其对应的时间. 研究得出了HG14海上光伏场区潮汐特征, 预报潮位可为施工船只避免搁浅提供技术指导.

关键词: 黄河口, 光伏场区, 潮汐调和分析, 潮位预报, 潮汐表

Abstract:

For the construction of offshore photovoltaic fields in ultra-shallow water, tidal level prediction is required to ensure the safety of construction vessels and the smooth progress of the project. In this study, continuous tidal level observations were conducted for over three months at the HG14 offshore photovoltaic field off the Yellow River estuary. Based on the measured tidal data, tidal harmonic analysis was performed, and tidal harmonic analysis prediction at the observation station was conducted. Numerical prediction of tidal level was conducted based on the establishment of the hydrodynamic model of the Bohai Sea and validation of the model. The measured data of the tidal level indicate that the tides in the photovoltaic field are irregular semi-diurnal mixed tides, with significant diurnal inequality and maximum tidal range of approximately 2.0 m. Harmonic analysis of the 11 major tidal constituents indicates that their amplitudes from large and small are M₂, K₁, O₁, S₂, K₂, P₁, N₂, M₄, Q₁, MS₄, and M₆, with respective amplitudes of 62.28, 26.27, 22.06, 20.87, 7.49, 6.64, 6.36, 5.11, 4.28, 1.47, and 0.65 cm. The amplitude of M₂ is 62.28 cm, approximately 2.37 times that of the second-largest constituent K₁ (26.27 cm). The amplitude of the semi-diurnal constituent S₂ is 20.87 cm, which is smaller than those of the diurnal constituents K₁ and O₁. Among the three shallow-water tidal constituents, M₄ is the largest, while MS₄ and M₆ are significantly smaller than M₄. After obtaining the harmonic constants of the major tidal constituents, harmonic analysis tidal predictions were conducted at the observation station. The results show that the consistency between the harmonic analysis predicted tidal level and measured tidal level is very good. The technical scores of the predicted tidal level by harmonic analysis and the numerical simulated tidal level between the measured tidal level are 0.96 and 0.97, respectively, and both can predict the tidal level with high accuracy. The validated numerical model was applied to simulate and predict tidal levels at the model output point in the photovoltaic field. Temporal variation figures of tidal level and tide tables in each month were presented. The diurnal inequality in the photovoltaic field is particularly distinct during neap tides, with low tide levels noticeably higher than those during spring tides. The tide tables provide hourly tidal levels for each day at the output point in three dates of Gregorian, lunar, and weekday, as well as the two daily high- and low-tide levels and their corresponding times. This study indicated the tidal characteristics in the offshore photovoltaic field HG14. The predicted tidal levels can provide scientific guidance for construction vessels to avoid shallow grounding.

Key words: Yellow River estuary, photovoltaic field area, tidal harmonic analysis, tidal level prediction, tide table

中图分类号:

P731.2

叶灿胜, 翟鸣皋, 朱建荣. 黄河口海上光伏场区潮位高精度预报[J]. 华东师范大学学报（自然科学版）, 2025, 2025(4): 158-169.

Cansheng YE, Minggao ZHAI, Jianrong ZHU. High-precision tidal level prediction in the photovoltaic field offshore the Yellow River estuary[J]. J* E* C* N* U* N* S*, 2025, 2025(4): 158-169.

图/表 10

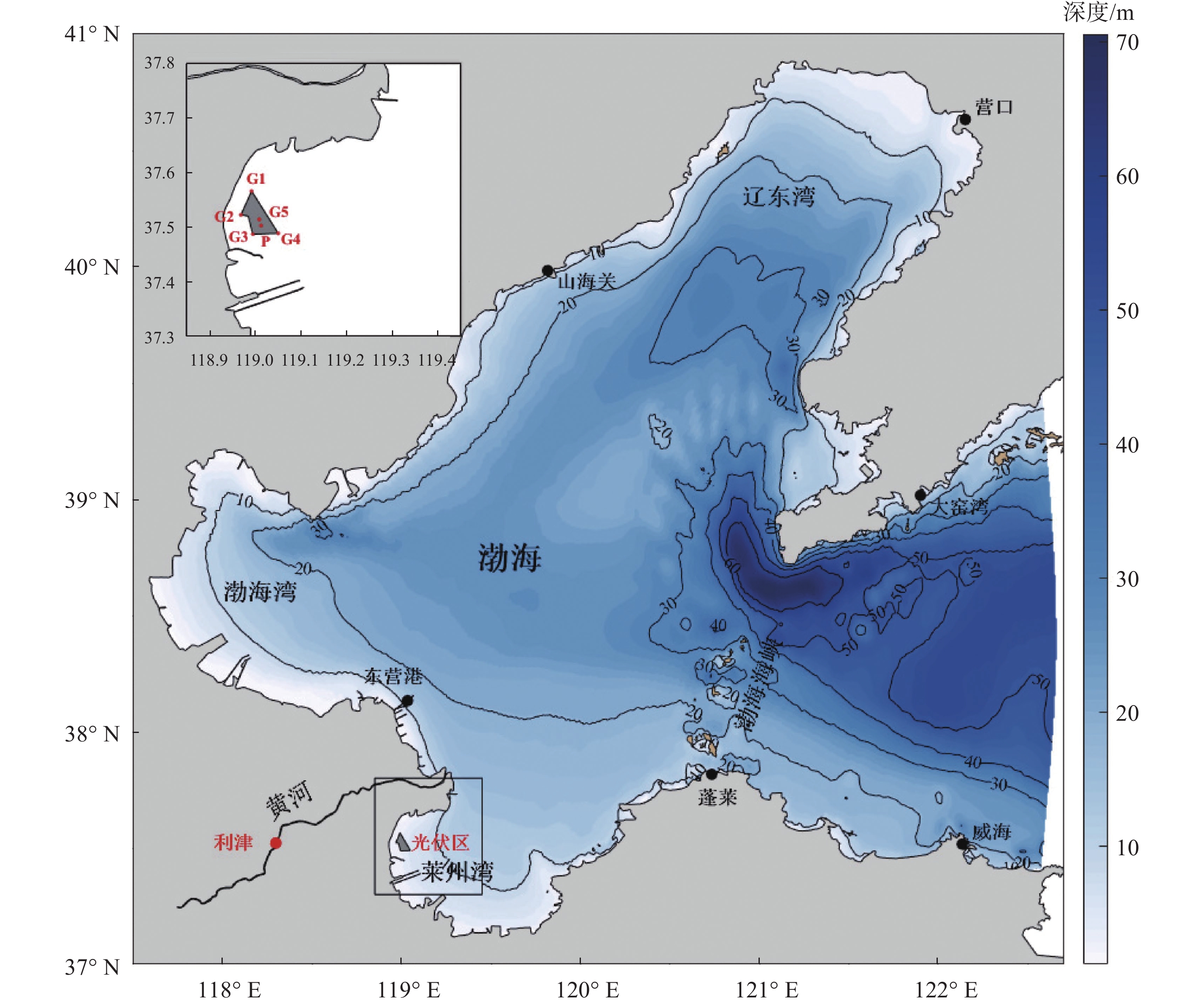

图1

图2

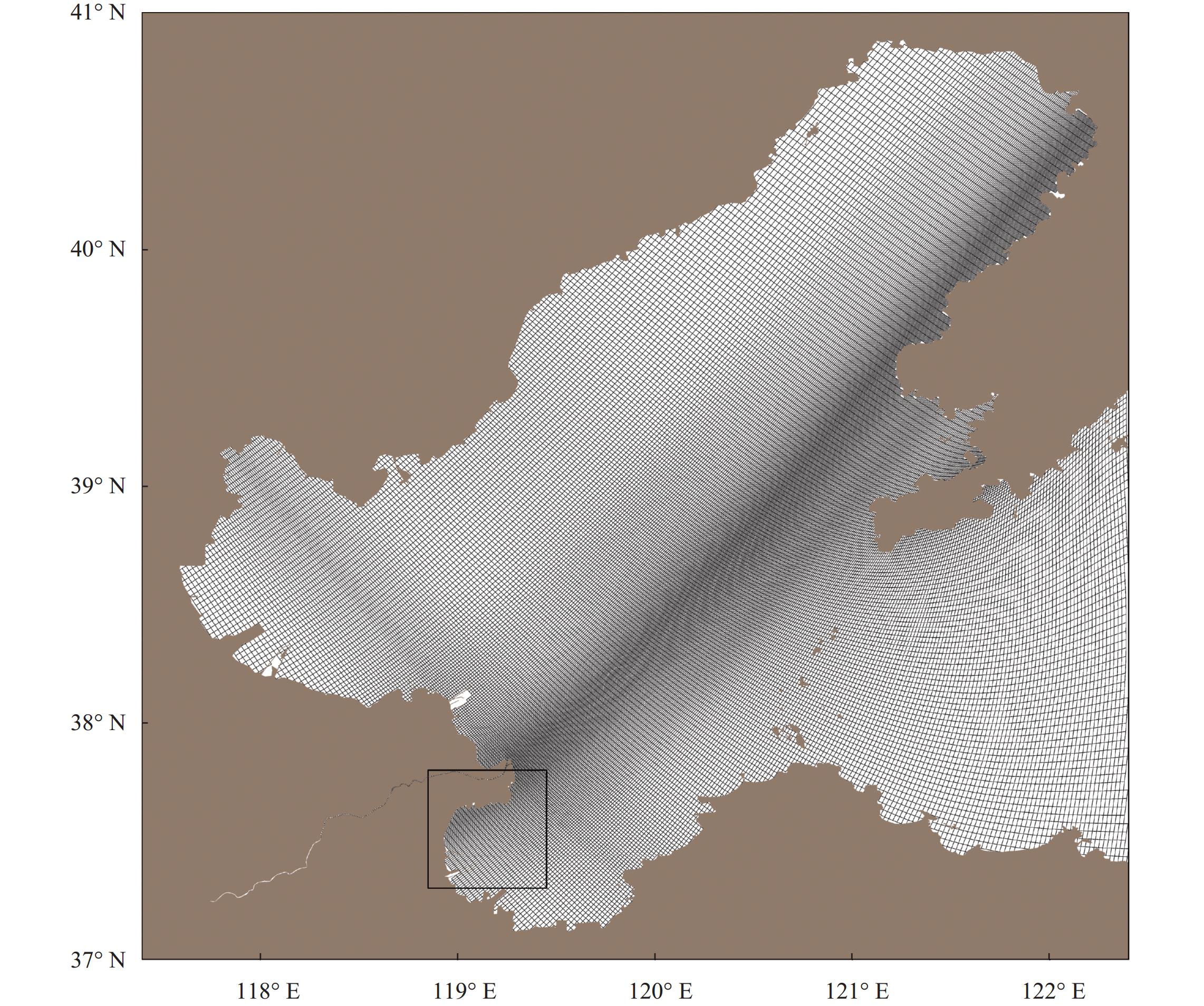

图3

图4

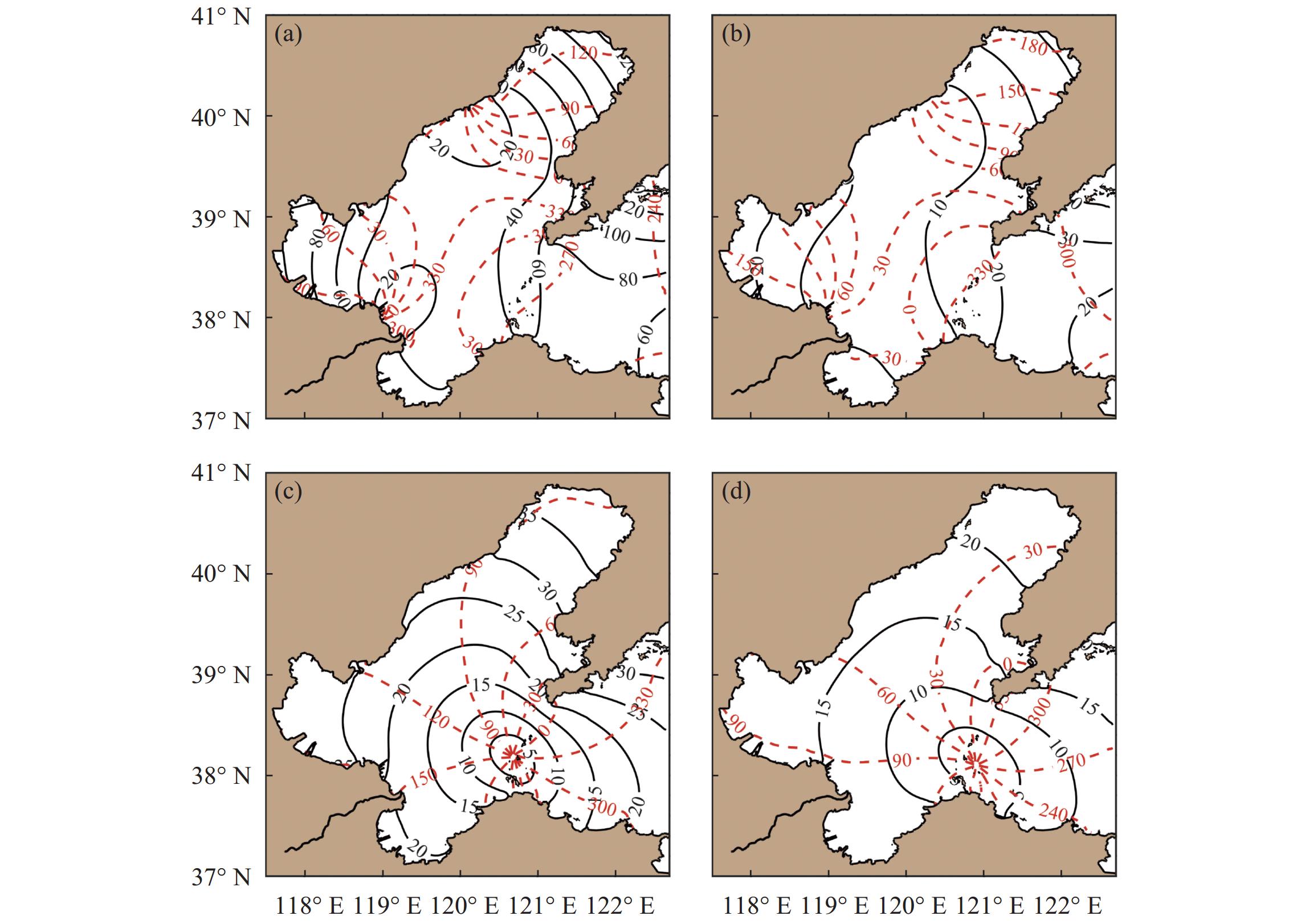

图5

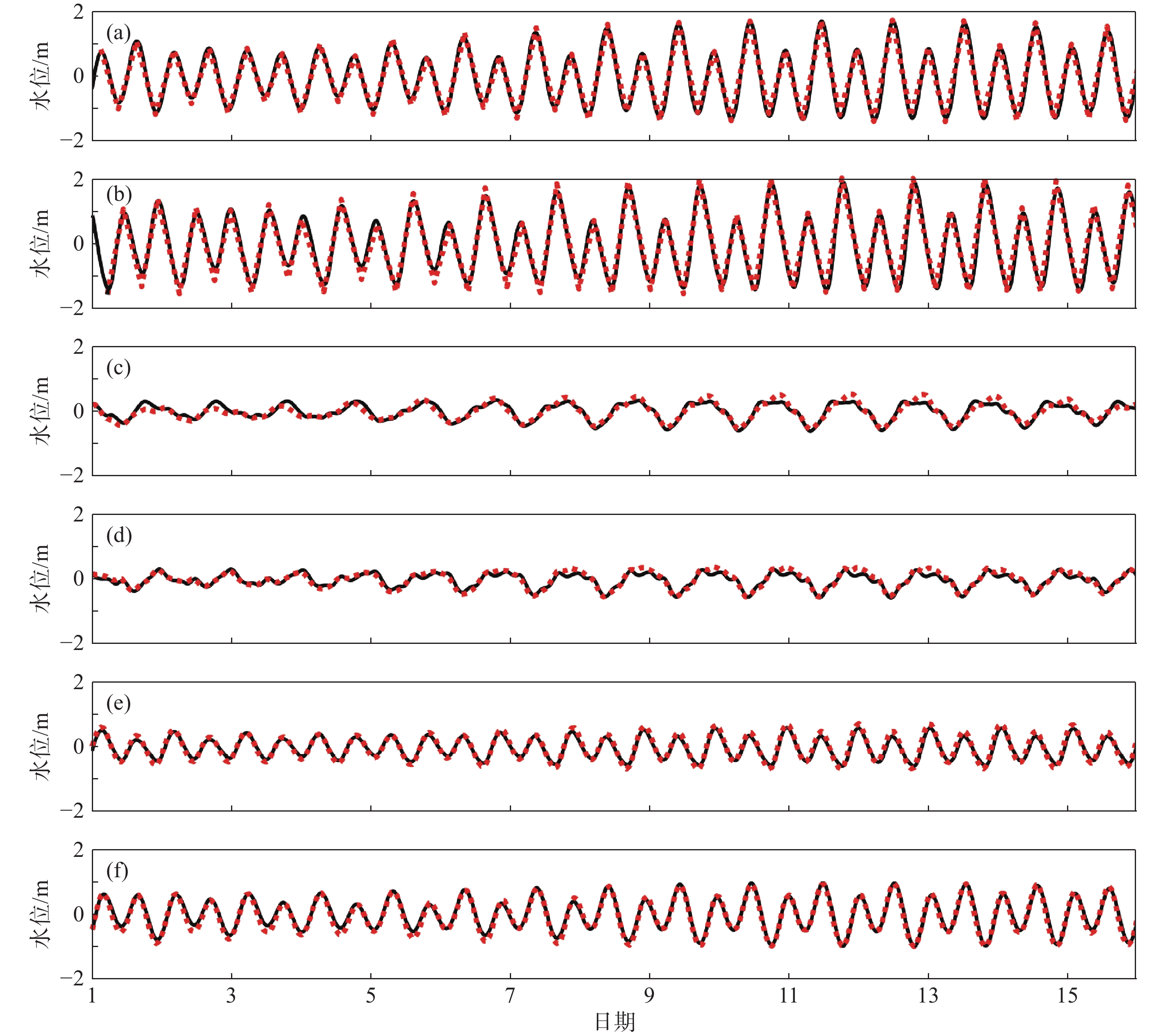

图6

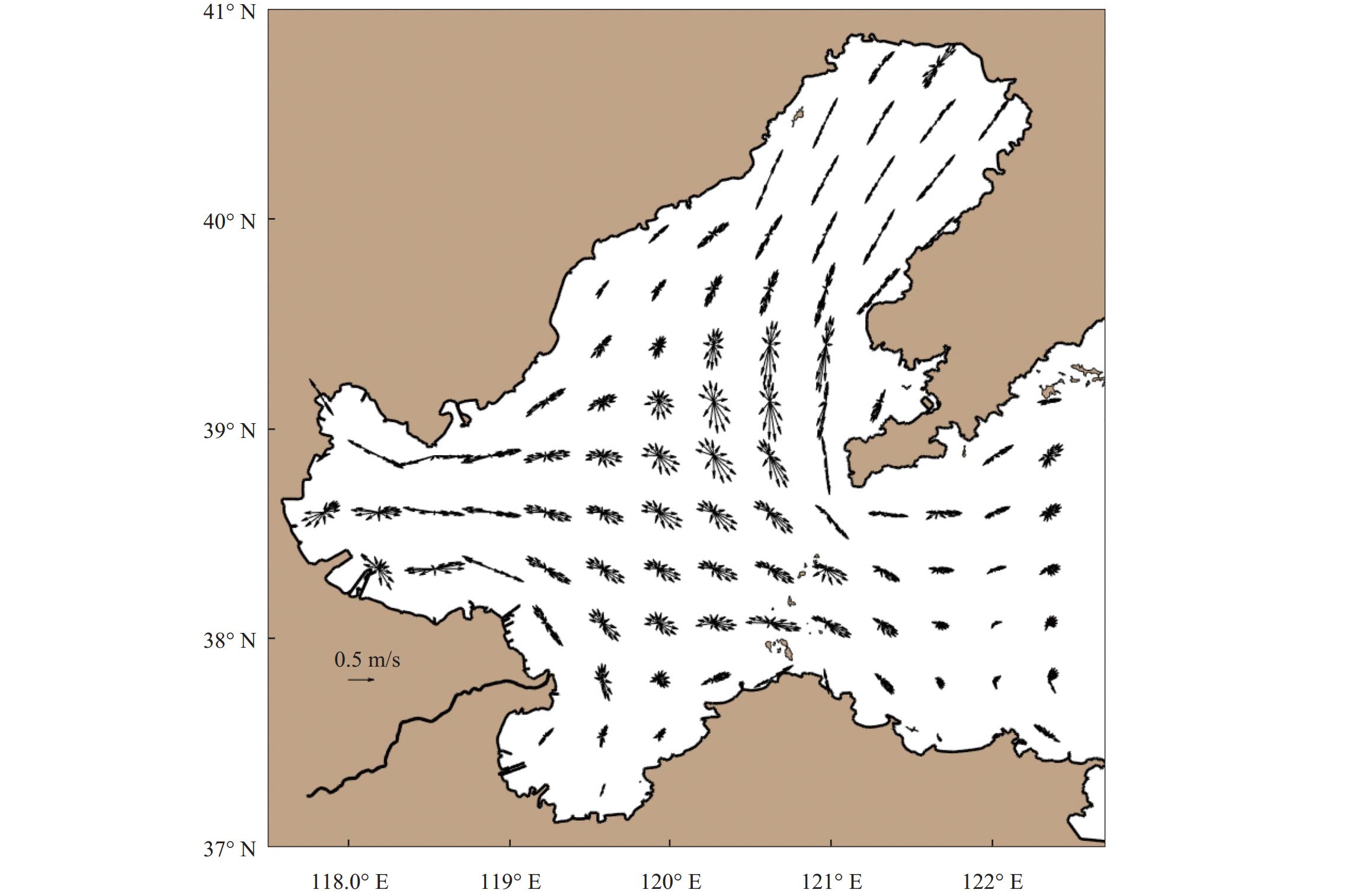

图7

表1

图8

图9

参考文献 38

1	赵保仁, 庄国文, 曹德明, 等.. 渤海的环流、潮余流及其对沉积物分布的影响. 海洋与湖沼, 1995, 26 (5): 466- 473.
2	胡春宏, 吉祖稳, 王涛.. 黄河口海洋动力特性与泥沙的输移扩散. 泥沙研究, 1996, 21 (4): 1- 10.
3	胡春宏, 曹文洪.. 黄河口水沙变异与调控Ⅰ——黄河口水沙运动与演变基本规律. 泥沙研究, 2003, (5): 1- 8.
4	FAN H, HUANG H J.. Changes in Huanghe (Yellow) River estuary since artificial re-routing in 1996. Chinese Journal of Oceanology and Limnology, 2005, 23 (3): 299- 305.
5	FAN H, HUANG H J, ZENG T Q, et al.. River mouth bar formation, riverbed aggradation and channel migration in the modern Huanghe (Yellow) River delta, China. Geomorphology, 2006, 74 (1/2/3/4): 124- 136.
6	BLUMBERG A F. A primer for ECOM-si [R]. Technical Report of HydroQual, Mahwah, NJ, 1994: 66.
7	朱建荣, 杨陇慧, 朱首贤.. 预估修正法对河口海岸海洋模式稳定性的提高. 海洋与湖沼, 2002, 33 (1): 15- 22.
8	朱建荣. 海洋数值计算方法和数值模式 [M]. 北京: 海洋出版社, 2003.
9	吴辉. 长江河口盐水入侵研究 —— 北支倒灌、深水航道工程和冬季季风的影响 [D]. 上海: 华东师范大学, 2006.
10	WU H, ZHU J R, CHOI B H.. Links between saltwater intrusion and subtidal circulation in the Changjiang Estuary: A model-guided study. Continental Shelf Research, 2010, 30 (17): 1891- 1905.
11	ARAKAWA A, LAMB V R. Computational design of the basic dynamical processes of the UCLA general circulation model [M]// CHANG J. General Circulation Models of the Atmosphere. Amsterdam: Elsevier, 1977: 173-265.
12	CHEN C S, ZHU J R, ZHENG L Y, et al.. A non-orthogonal primitive equation coastal ocean circulation model: Application to lake superior. Journal of Great Lakes Research, 2004, 30, 41- 54.
13	MELLOR G L, YAMADA T.. A hierarchy of turbulence closure models for planetary boundary layers. Journal of the Atmospheric Sciences, 1974, 31 (7): 1791- 1806.
14	MELLOR G L, YAMADA T.. Development of a turbulence closure model for geophysical fluid problems. Reviews of Geophysics, 1982, 20 (4): 851- 875.
15	SMAGORINSKY J.. General circulation experiments with the primitive equations. Monthly Weather Review, 1963, 91 (3): 99- 164.
16	LYU H H, ZHU J R.. Impact of the bottom drag coefficient on saltwater intrusion in the extremely shallow estuary. Journal of Hydrology, 2018, 557, 838- 850.
17	WU H, GU J H, ZHU P.. Winter counter-wind transport in the inner southwestern Yellow Sea. Journal of Geophysical Research: Oceans, 2018, 123 (1): 411- 436.
18	WU T N, WU H.. Tidal mixing sustains a bottom-trapped river plume and buoyant coastal current on an energetic continental shelf. Journal of Geophysical Research: Oceans, 2018, 123 (11): 8026- 8051.
19	ZHU J R, CHENG X Y, LI L J, et al.. Dynamic mechanism of an extremely severe saltwater intrusion in the Changjiang estuary in February 2014. Hydrology and Earth System Sciences, 2020, 24 (10): 5043- 5056.
20	李志鹏, 朱建荣.. 2007—2016年北支河势变化对长江口盐水入侵影响数值研究. 华东师范大学学报(自然科学版), 2022, (3): 109- 124.
21	仇威, 朱建荣.. 持续强北风天气下长江口盐水入侵对径流量的响应. 华东师范大学学报(自然科学版), 2023, (3): 132- 146.
22	WU T, ZHU J R, MA R, et al.. Freshwater resources around the reclaimed new land on the Eastern Hengsha Shoal in the Changjiang estuary. Frontiers in Marine Science, 2023, 10, 1302091.
23	YANG Y D, ZHU J R, CHEN Z B, et al.. The impact of sluice construction in the north branch of the Changjiang Estuary on saltwater intrusion and freshwater resources. Journal of Marine Science and Engineering, 2023, 11 (11): 2107.
24	金智, 朱建荣, 仇威.. 长江流域梯级水库夏末秋初蓄水对河口盐水入侵和淡水资源的影响. 华东师范大学学报(自然科学版), 2024, (1): 90- 103.
25	CHENG X Y, ZHU J R, CHEN S L.. Dynamics of the extension of the Yellow River plume in the Bohai Sea. Continental Shelf Research, 2021, 222, 104438.
26	CHENG X Y, ZHU J R, CHEN S L.. Extensions of the river plume under various Yellow River courses into the Bohai Sea at different times. Estuarine, Coastal and Shelf Science, 2021, 249, 107092.
27	OGURA S. The tides in the seas adjacent to Japan [R]. The Hydrographic Department, Imperial Japanese Navy, 1933: 1-189.
28	NISHIDA H. Improved tidal charts for the western part of the north Pacific Ocean [R]. Report of Hydraulic Research, 1980: 55-70.
29	海洋图集委员会. 渤海黄海东海海洋图集(水文) [M]. 北京: 海洋出版社, 1993.
30	AN H S.. A numerical experiment of the M2 tide in the Yellow sea. Journal of the Oceanographical Society of Japan, 1977, 33 (2): 103- 110.
31	CHOI B. A tidal model of the Yellow Sea and the Eastern China sea [R]. Korea Ocean Research and Development Institute, 1980.
32	GUO X Y, YANAGI T.. Three-dimensional structure of tidal current in the East China Sea and the Yellow Sea. Journal of Oceanography, 1998, 54 (6): 651- 668.
33	KANG S K, LEE S R, LIE H J.. Fine grid tidal modeling of the yellow and East China Seas. Continental Shelf Research, 1998, 18 (7): 739- 772.
34	FANG G H, YANG J F.. A two-dimensional numerical model of the tidal motions in the Bohai Sea. Chinese Journal of Oceanology and Limnology, 1985, 3 (2): 135- 152.
35	LEE J C, JUNG K T.. Application of eddy viscosity closure models for the M2 tide and tidal currents in the Yellow Sea and the East China Sea. Continental Shelf Research, 1999, 19 (4): 445- 475.
36	LEFÈVRE F, LE PROVOST C, LYARD F H.. How can we improve a global ocean tide model at a regional scale? A test on the Yellow Sea and the East China Sea. Journal of Geophysical Research: Oceans, 2000, 105 (C4): 8707- 8725.
37	ALLEN J I, SOMERFIELD P J, GILBERT F J.. Quantifying uncertainty in high-resolution coupled hydrodynamic-ecosystem models. Journal of Marine Systems, 2007, 64 (1/2/3/4): 3- 14.
38	PAWLOWICZ R, BEARDSLEY B, LENTZ S.. Classical tidal harmonic analysis including error estimates in MATLAB using T_TIDE. Computers & Geosciences, 2002, 28 (8): 929- 937.
