Analog-baseband circuit with large dynamic range and fine-grained gain control for 77-GHz millimeter-wave radar systems

doi:10.3969/j.issn.1000-5641.2026.02.013

Abstract

Abstract:

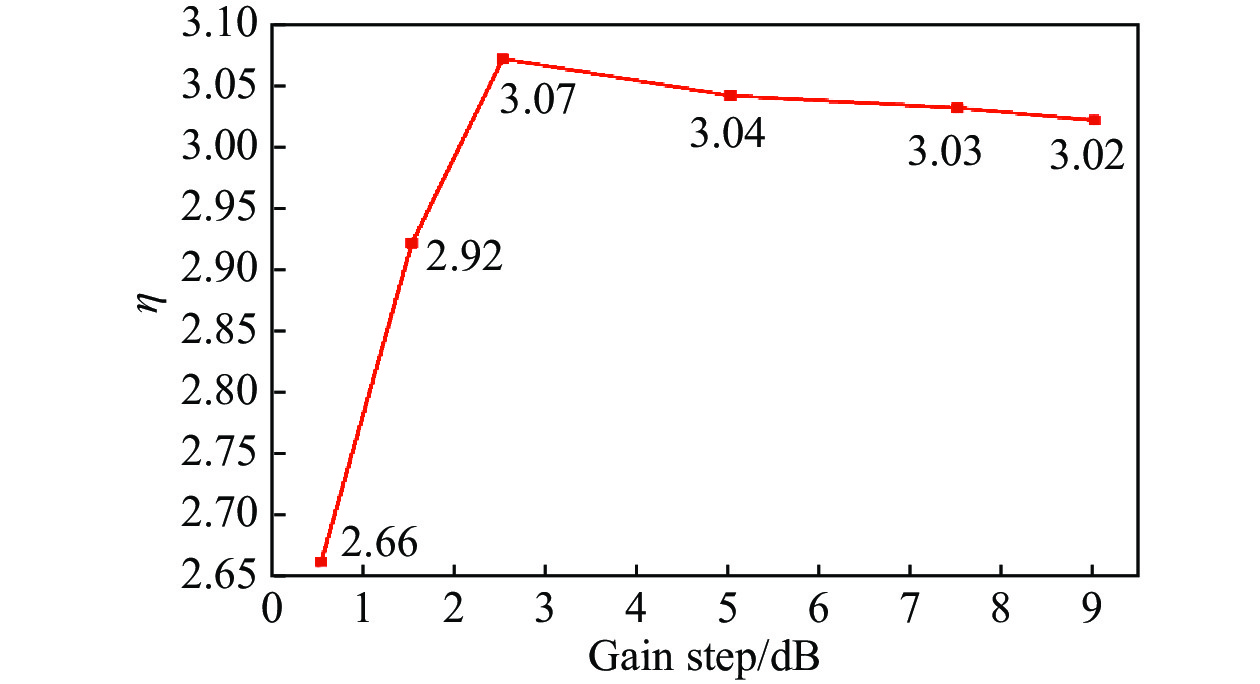

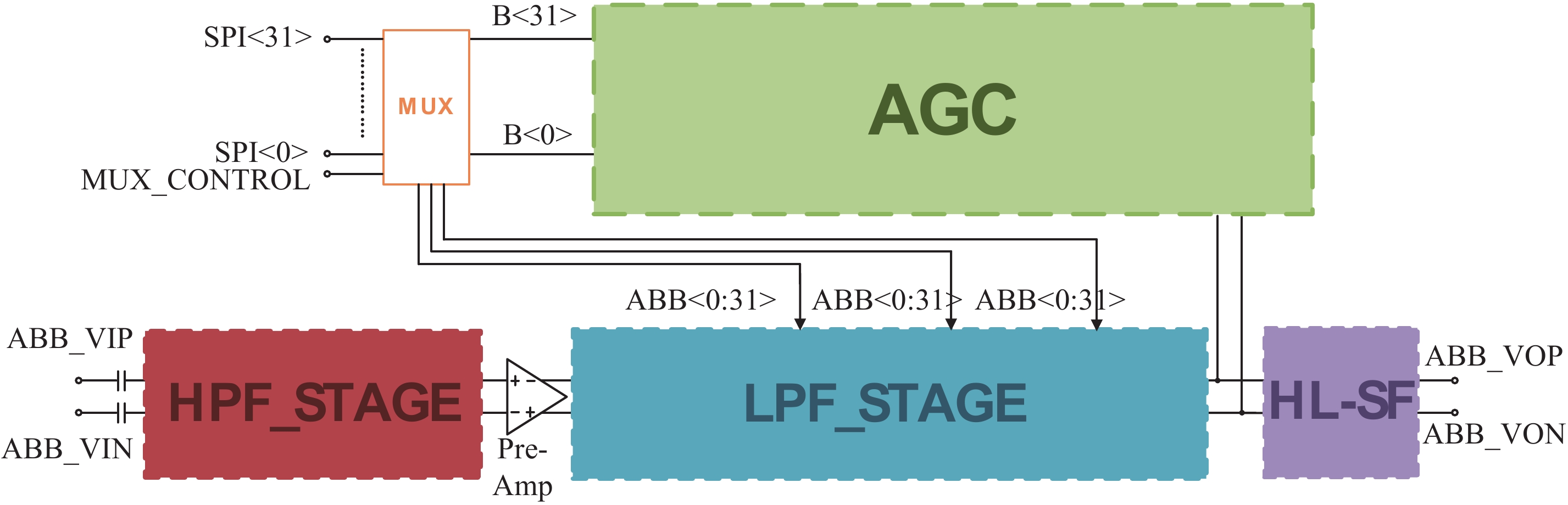

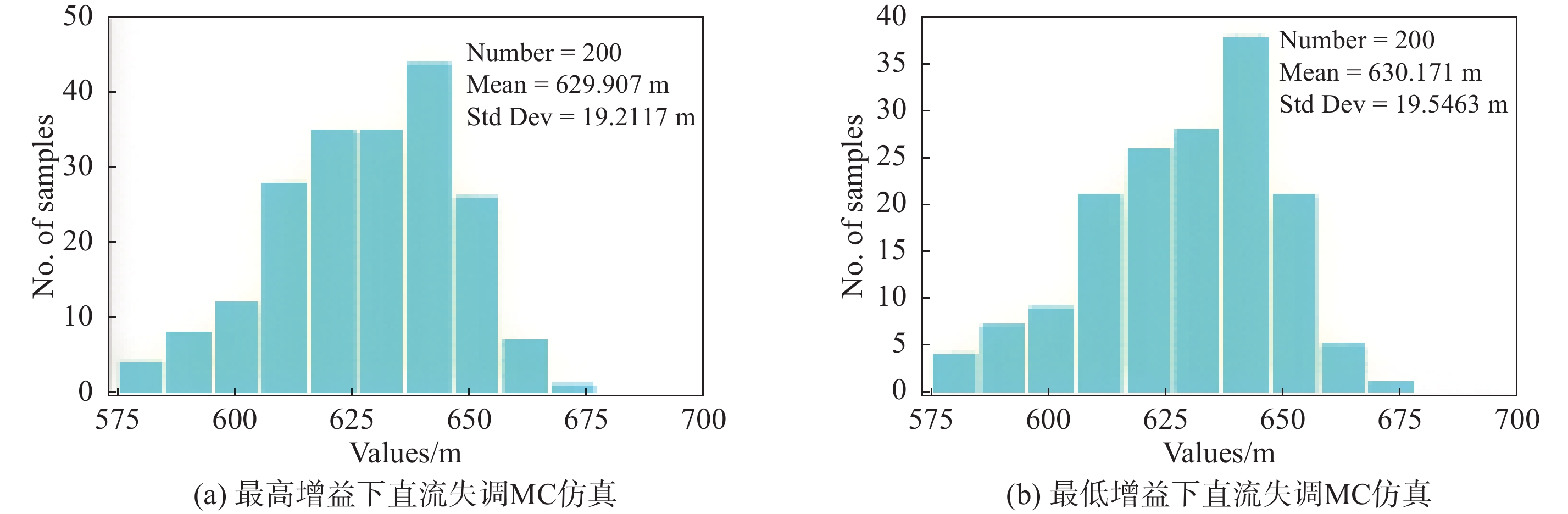

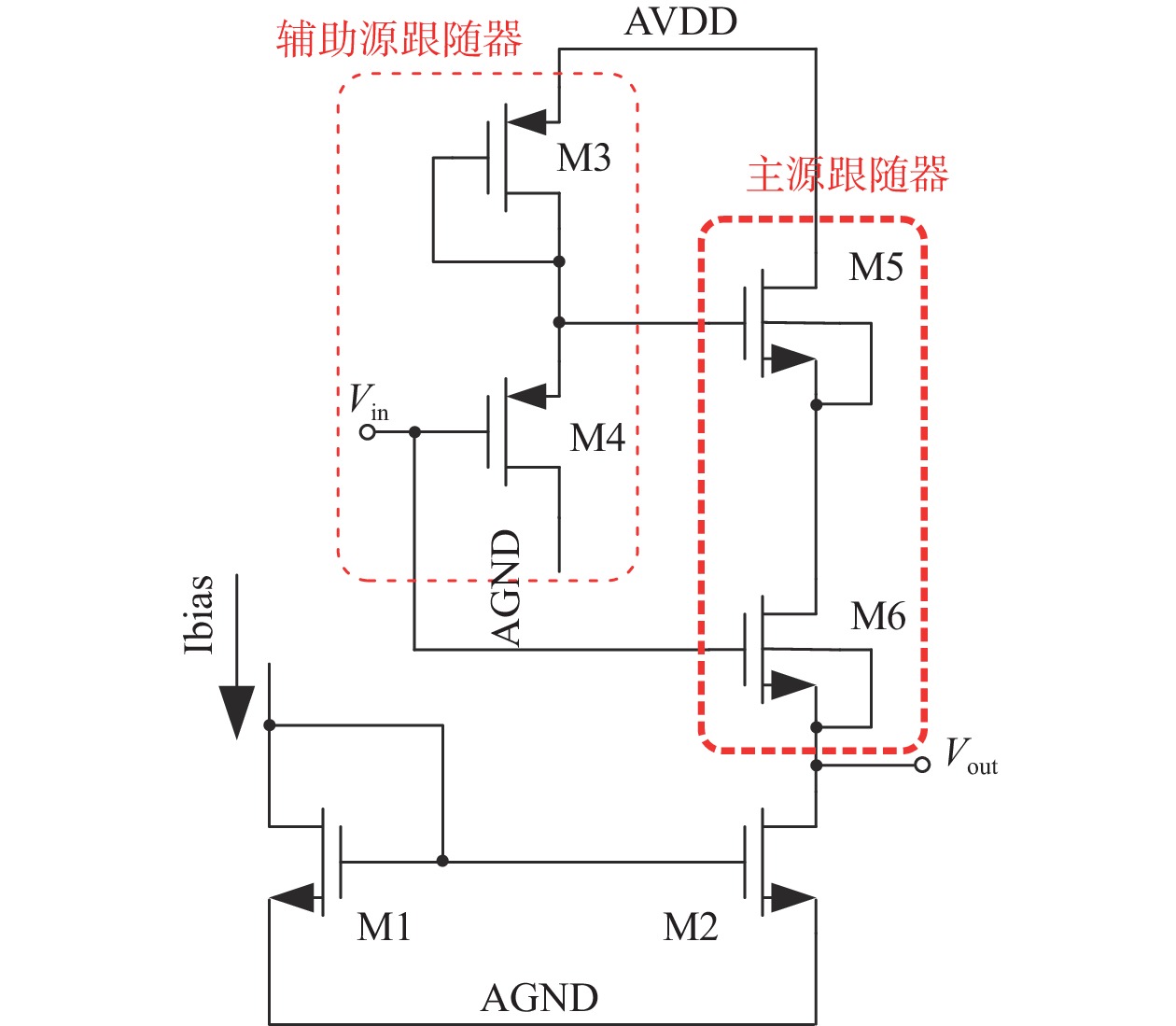

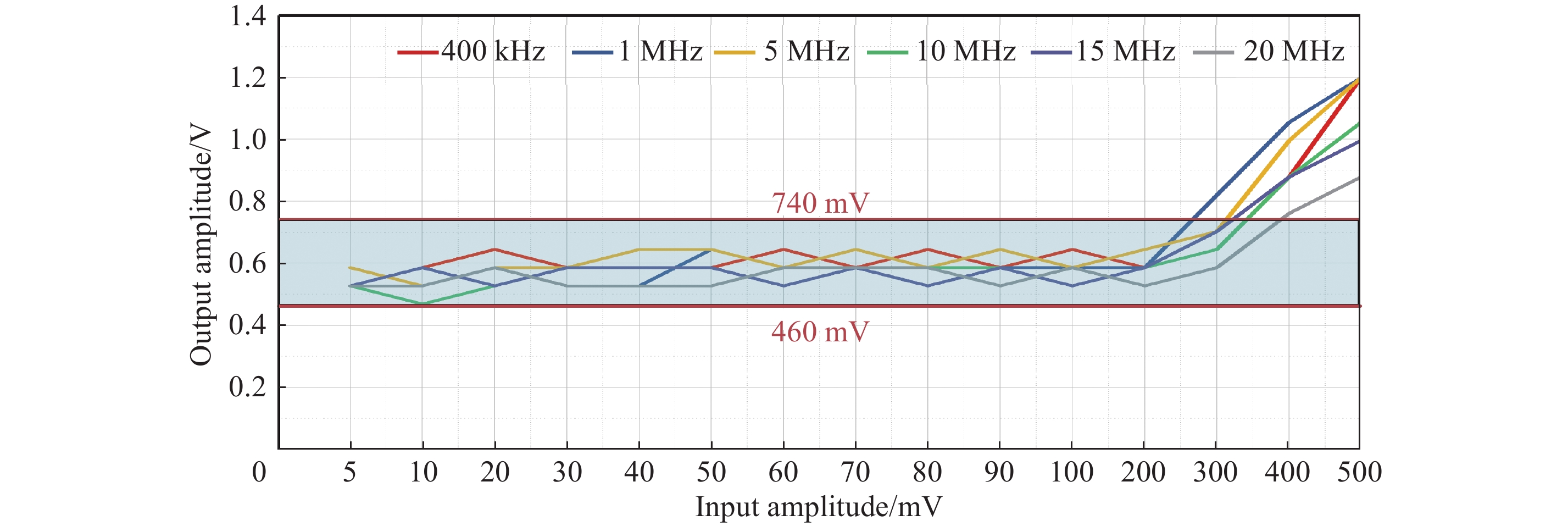

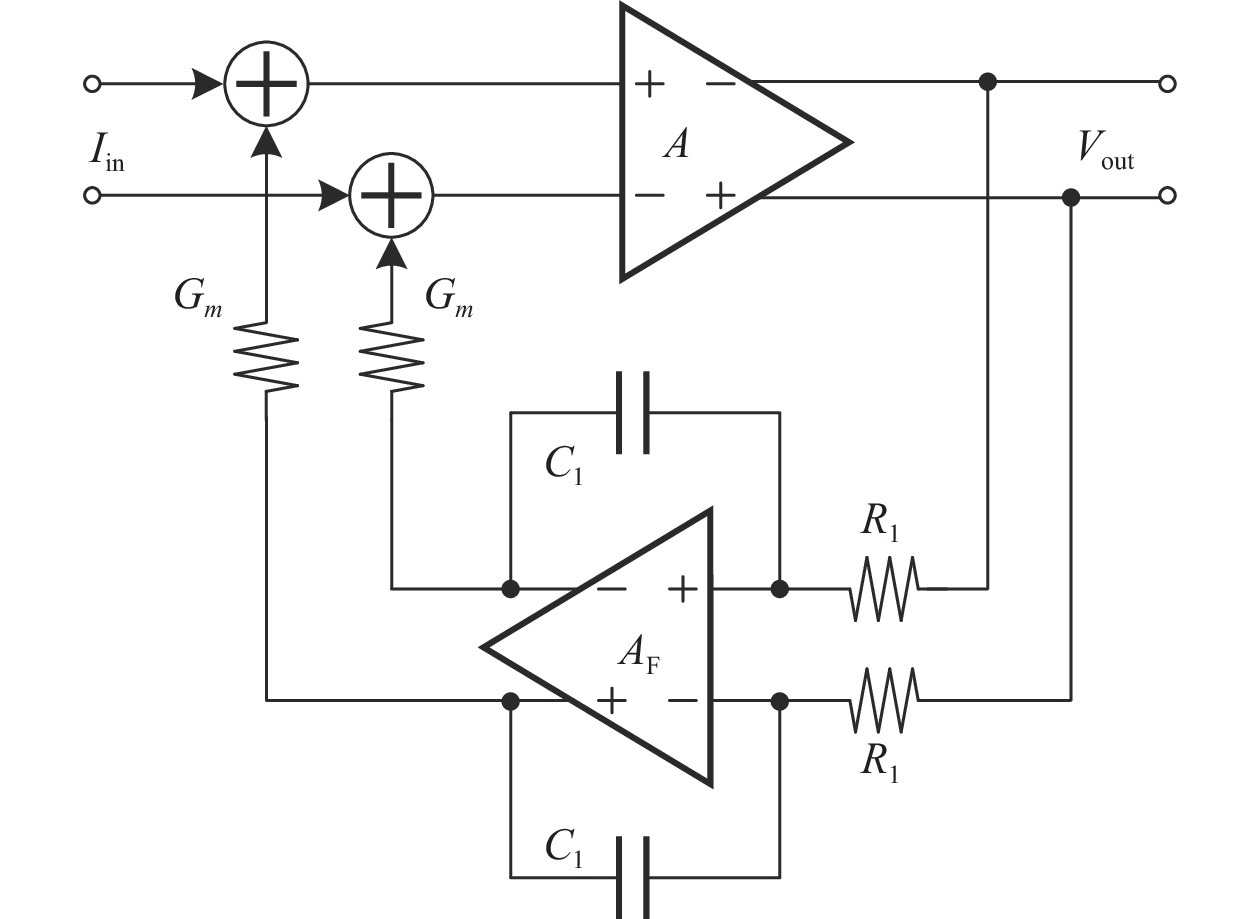

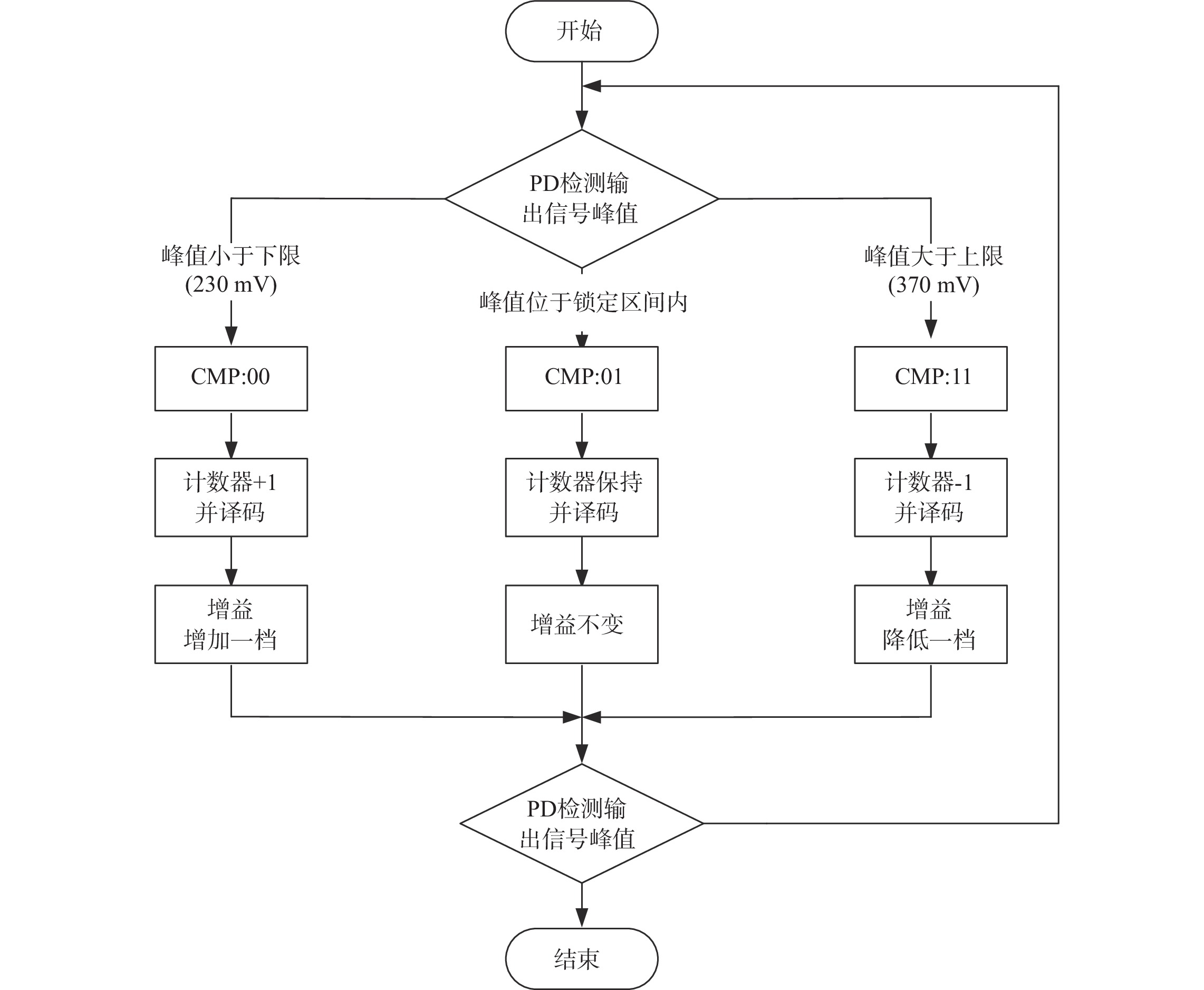

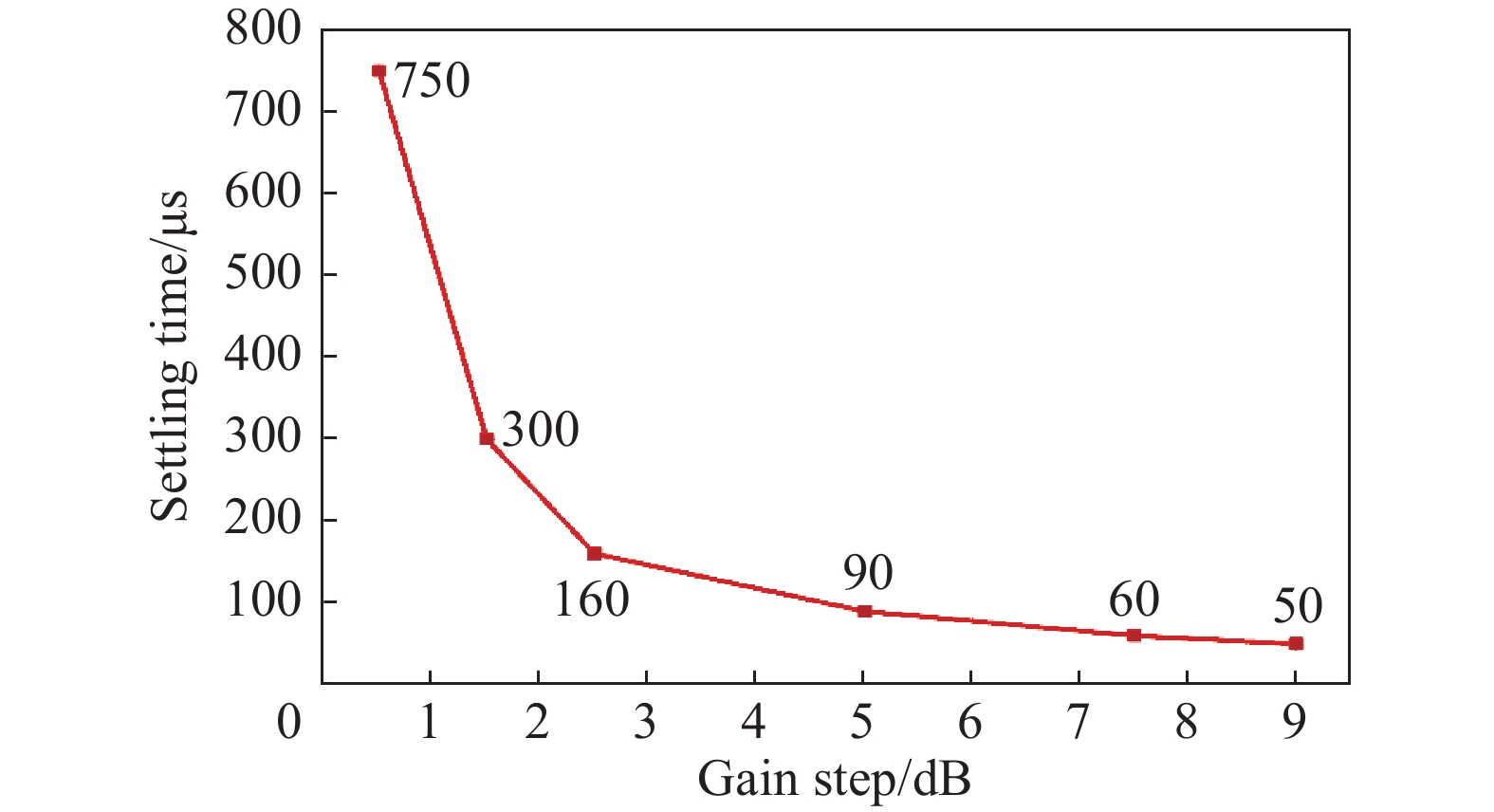

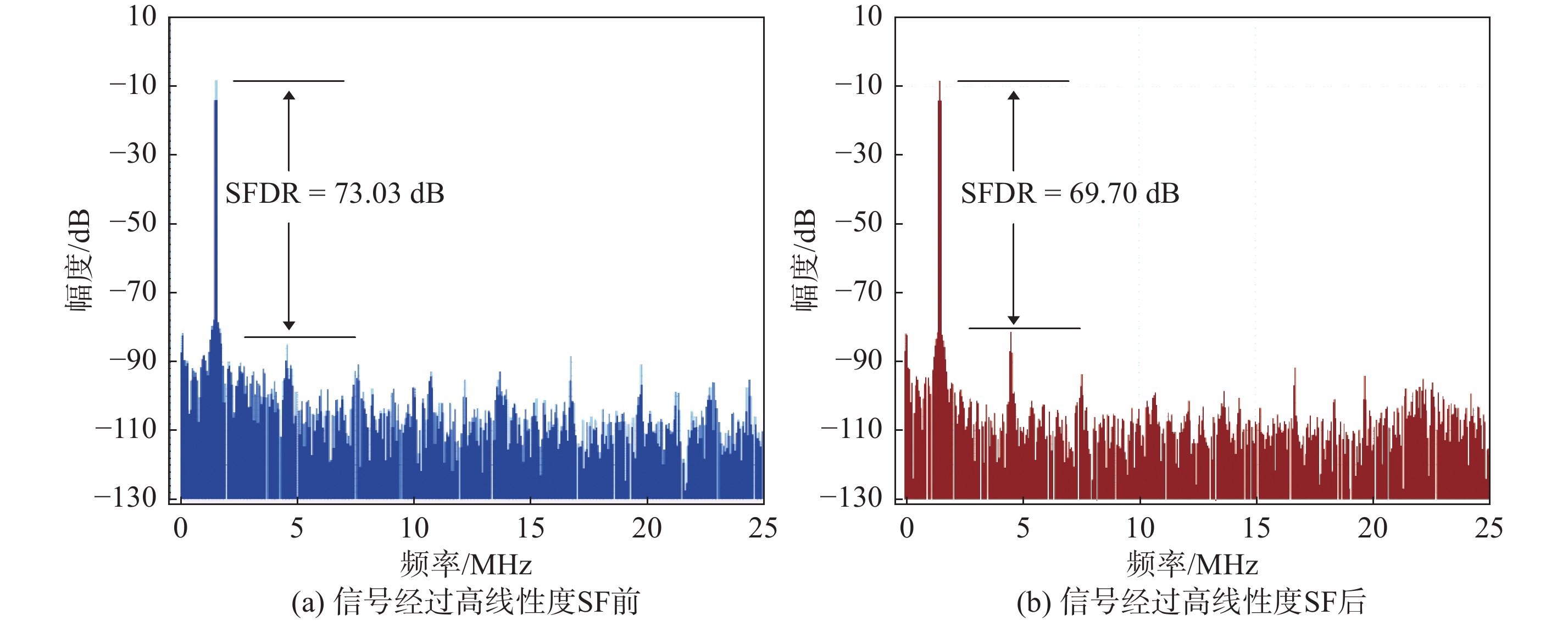

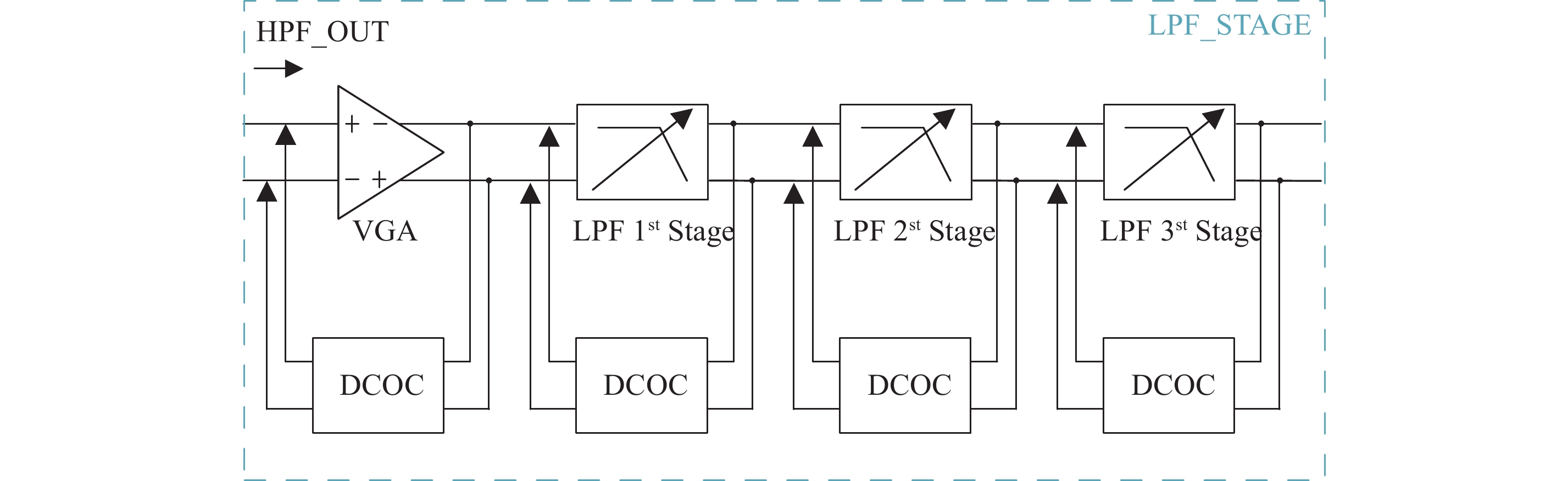

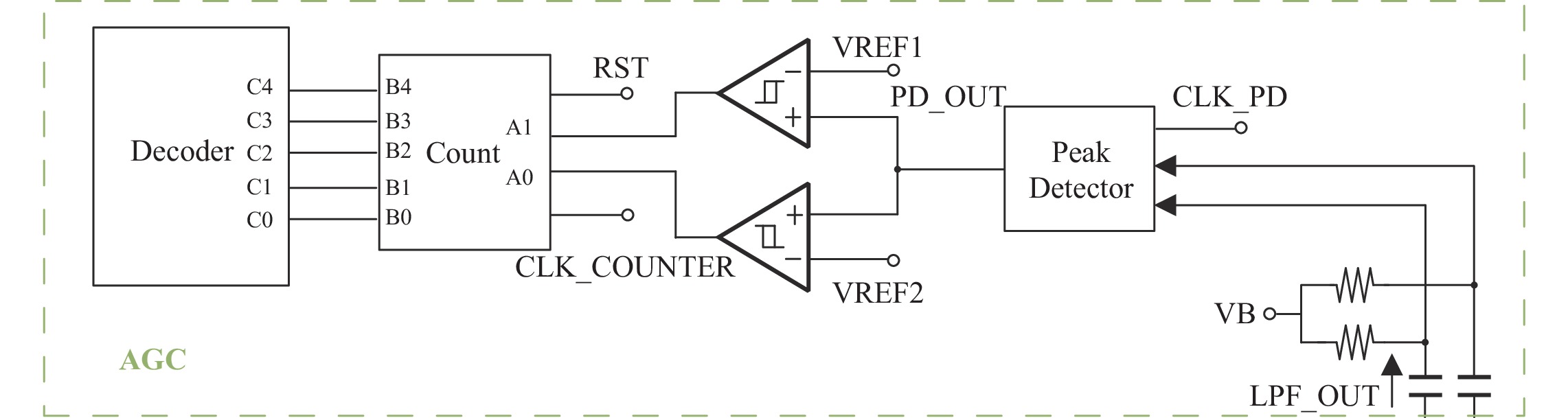

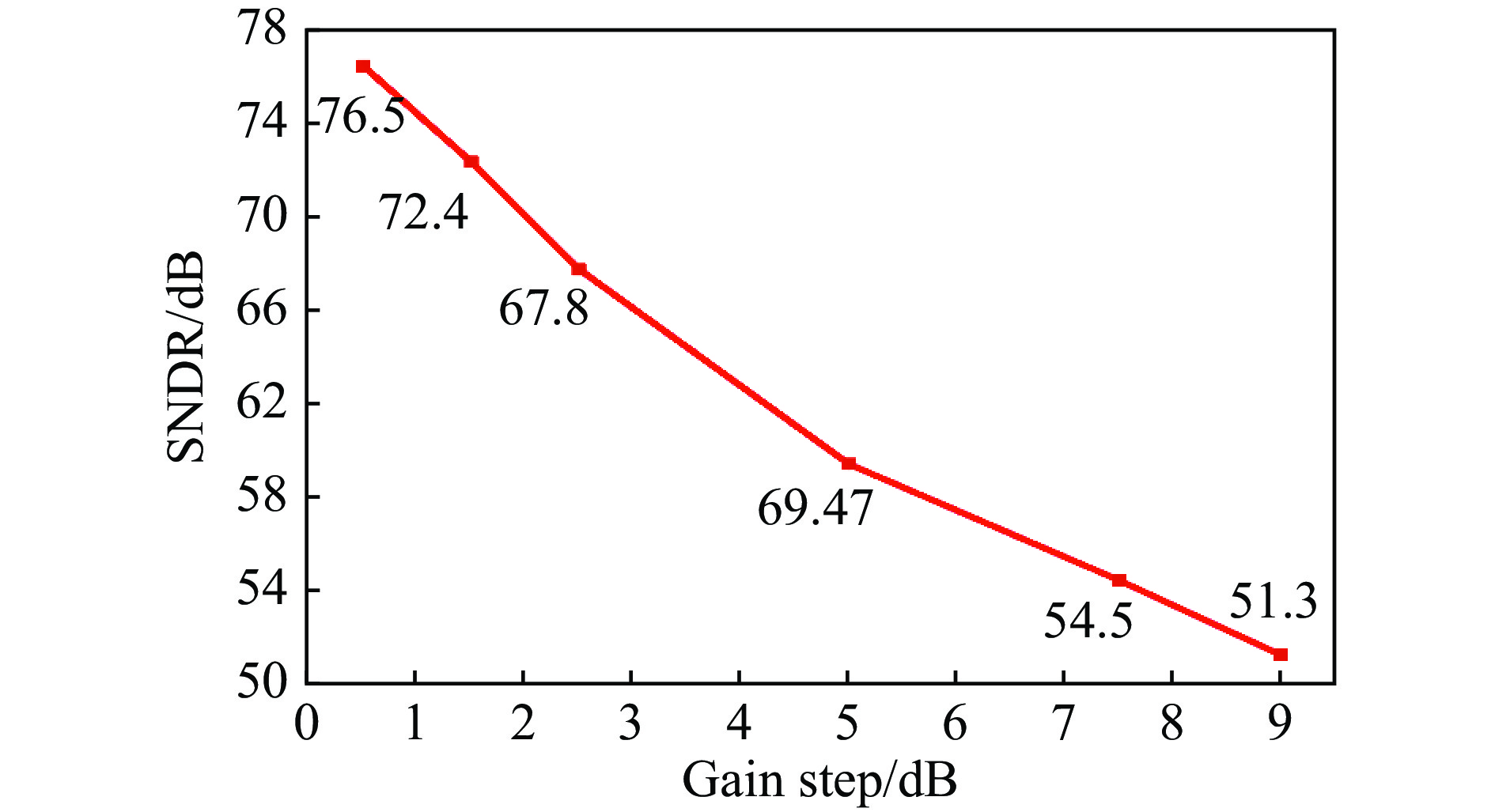

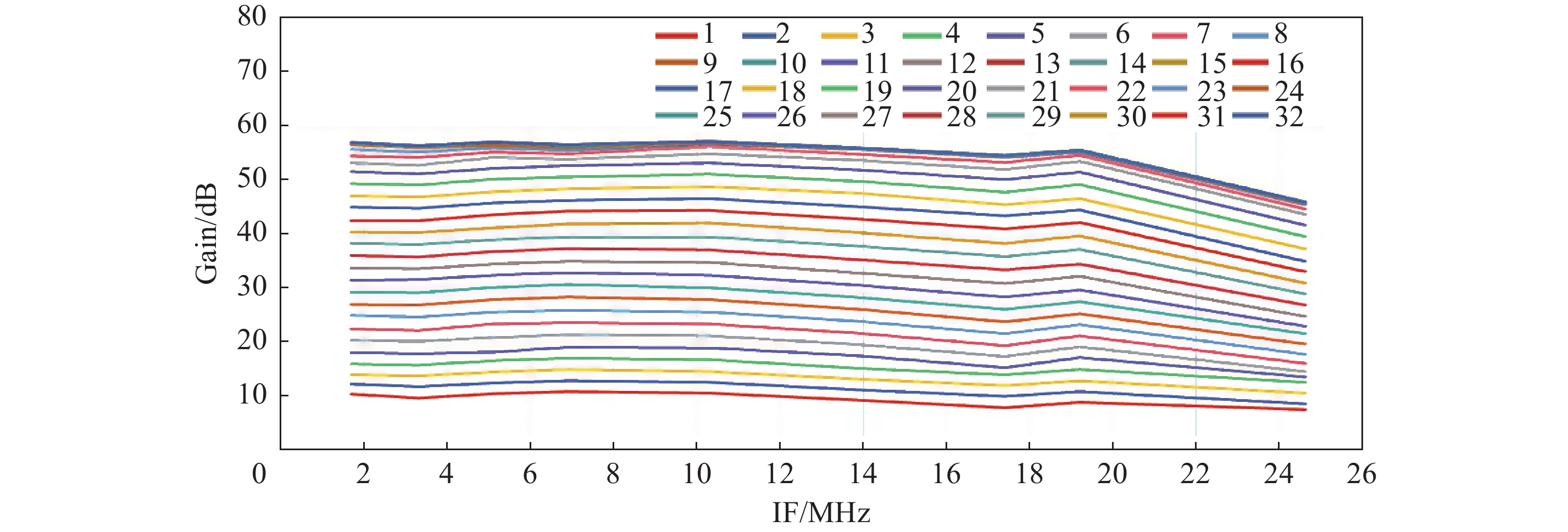

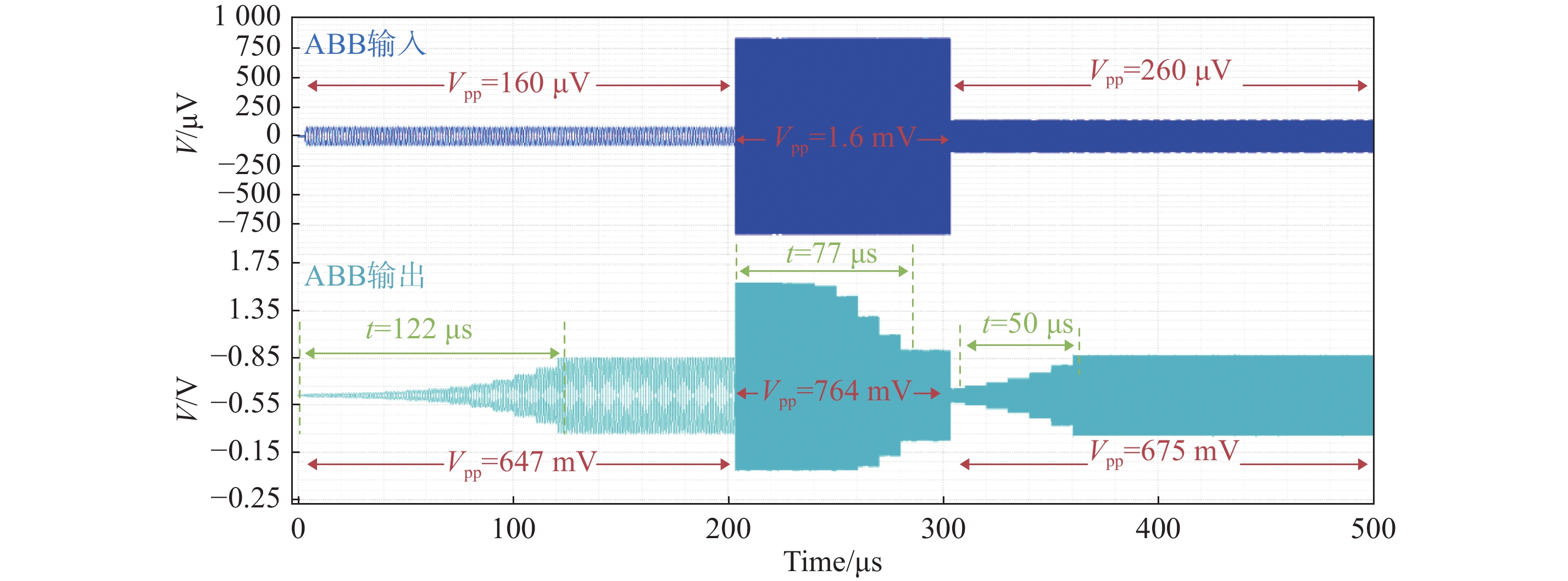

In this study, an analog-baseband (ABB) circuit for 77 GHz automotive radar transceivers, which features a large dynamic range and fine-grained gain control, is proposed and implemented. To accommodate various detection ranges from short (15 m) to long distance (250 m), the circuit employs a Butterworth filter supporting a signal bandwidth of 400 kHz to 20 MHz with a continuously tunable gain of 10 to 57 dB. A precision gain control strategy is proposed, which enables 2.5 dB/step gain adjustments to precisely maintain the output amplitude within 460–740 mV. A feedback-based direct current (DC) offset cancellation loop effectively suppresses residual DC offsets. The hybrid digital-analog feedback automatic gain control ensures a settling time of less than 160 μs during rapid signal amplitude variations. At the output stage, a highly linear source-follower structure is implemented to minimize signal distortion while enhancing the ABB’s driving capability. Measured results indicate that under a 2.5 V power supply, the analog baseband affords a wide range of automatic gain tuning from 10 to 57 dB across the full operating bandwidth (400 kHz–20 MHz). At the maximum gain, the circuit exhibits noise figures of 42.4 and 33.1 dB at 400 kHz and 20 MHz, respectively.

Key words: 77-GHz band, automotive millimeter-wave radar, fine-grained gain control, analog-baseband (ABB)

CLC Number:

TN432

Zihao REN, Cong ZHANG, Yang YANG, Chunqi SHI. Analog-baseband circuit with large dynamic range and fine-grained gain control for 77-GHz millimeter-wave radar systems[J]. J* E* C* N* U* N* S*, 2026, 2026(2): 139-150.

Figures/Tables 20

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

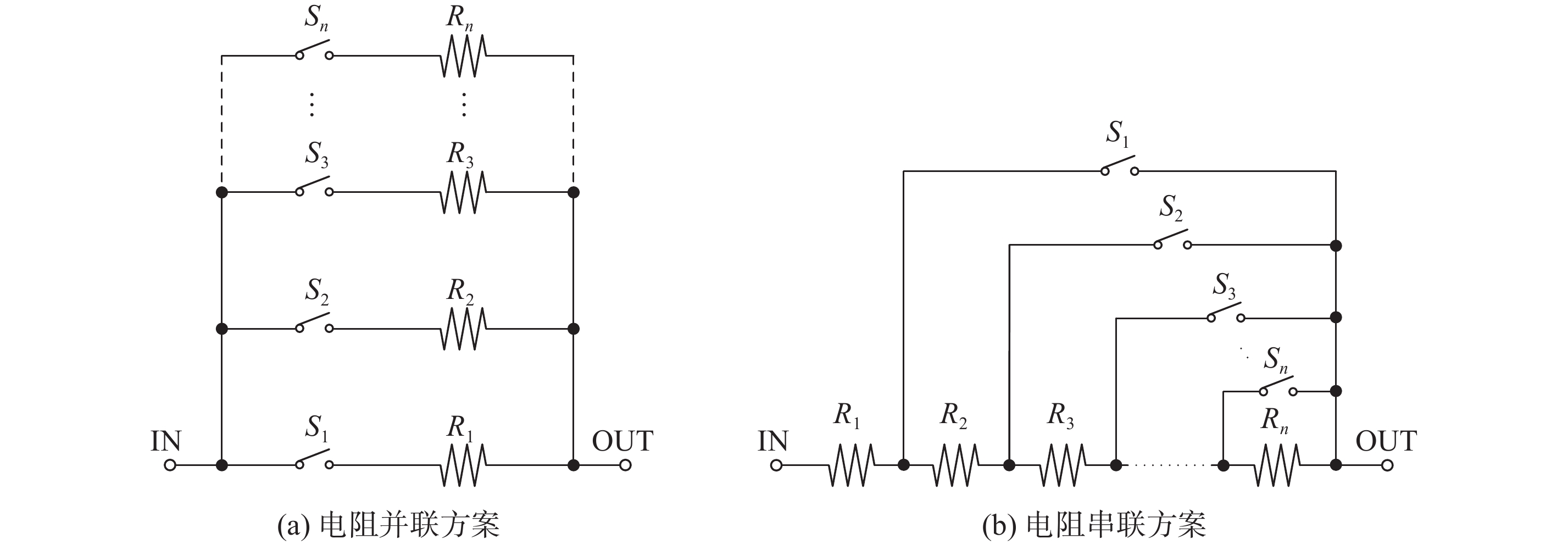

Fig.6

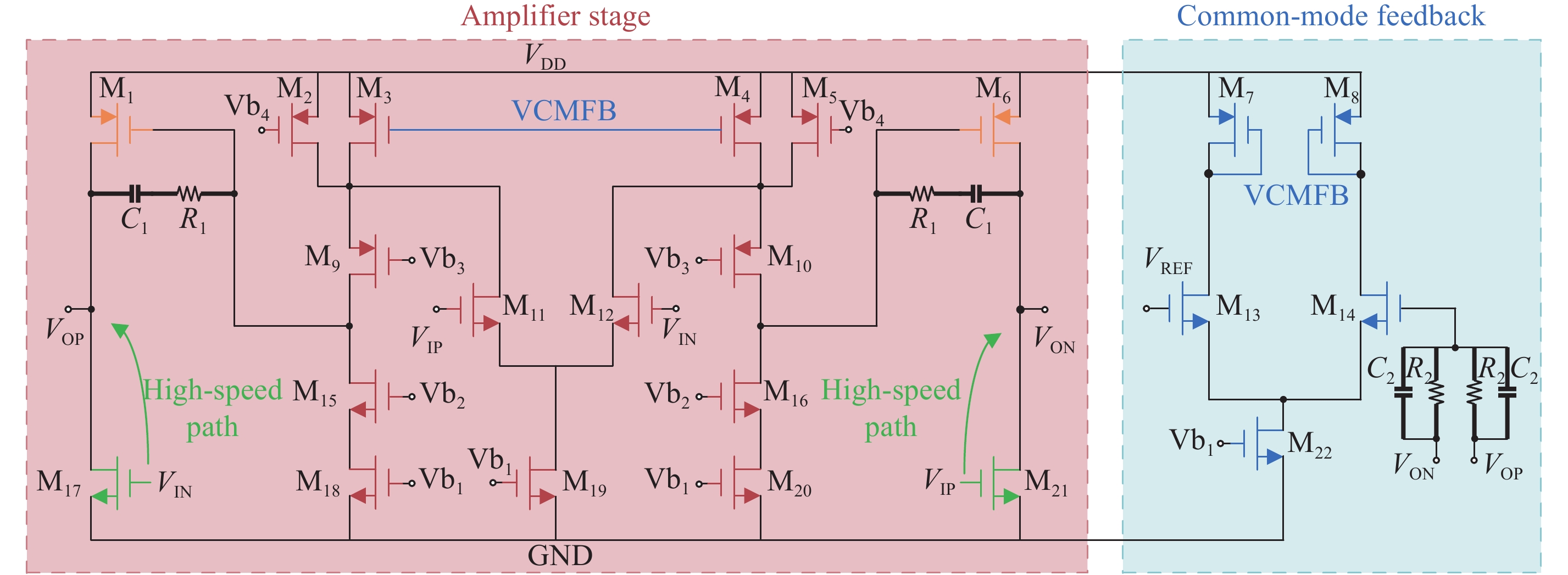

Fig.7

Fig.8

Fig.9

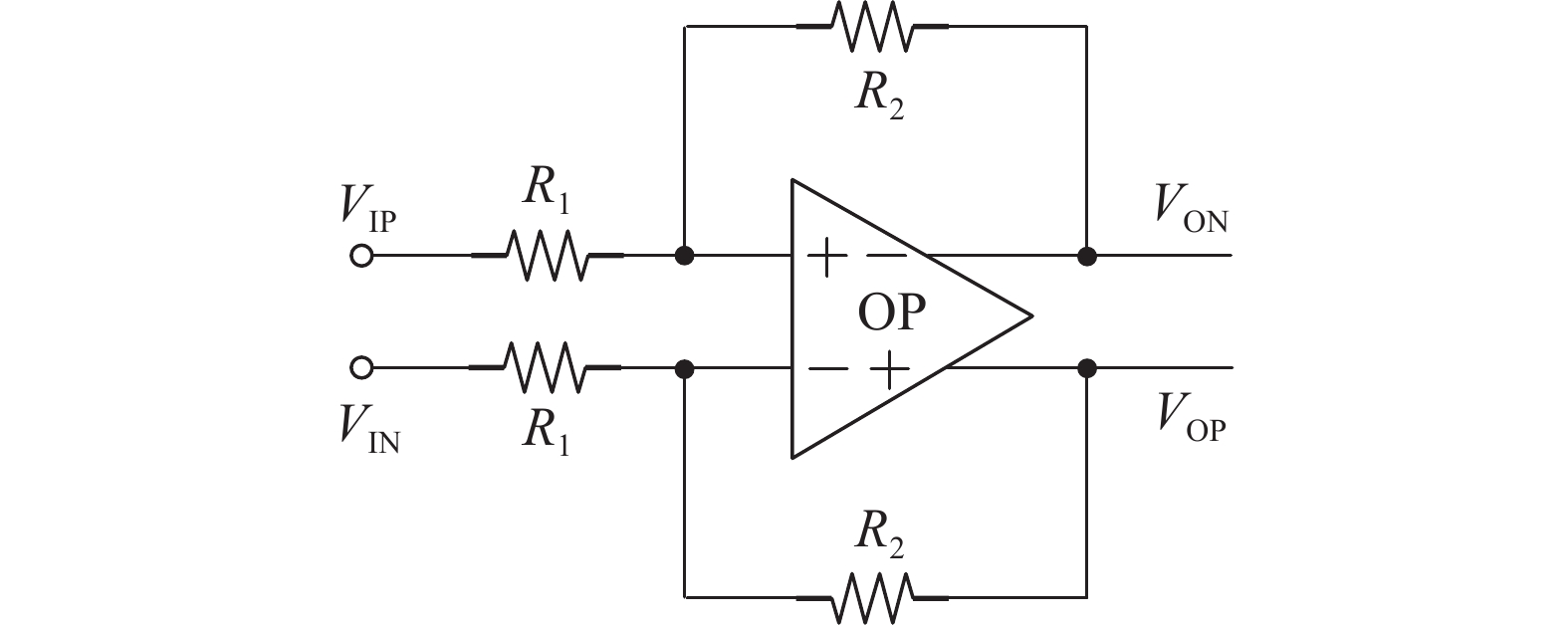

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

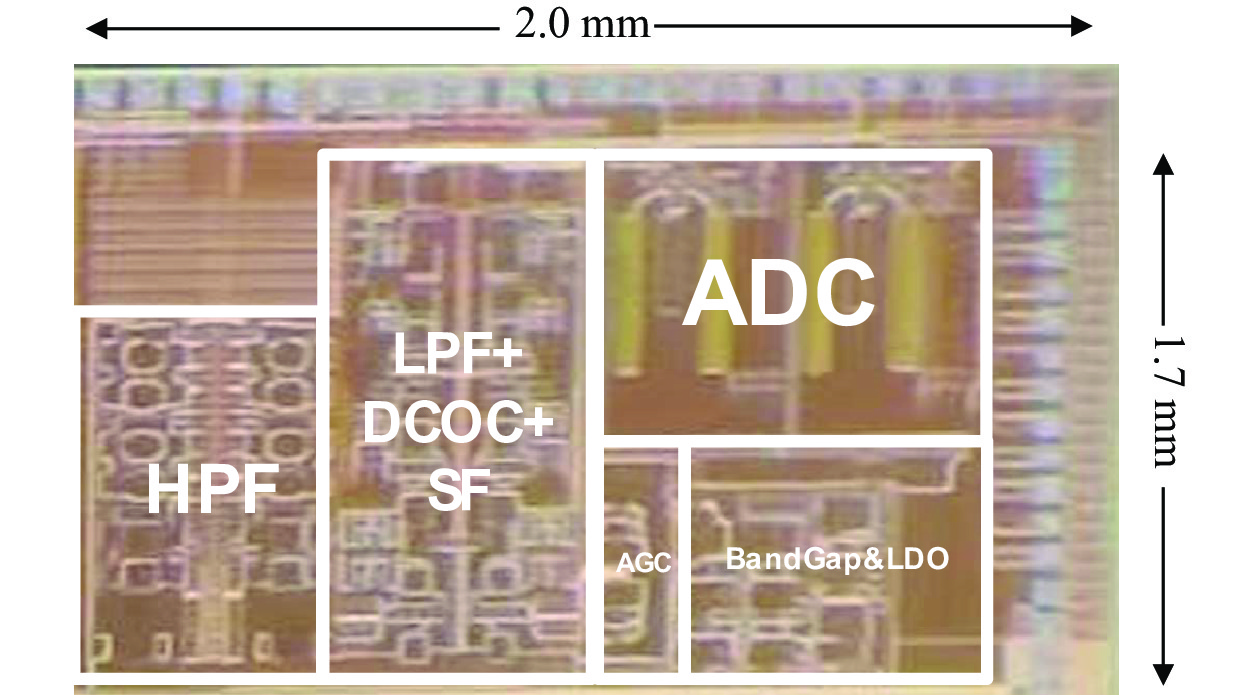

Fig.16

Fig.17

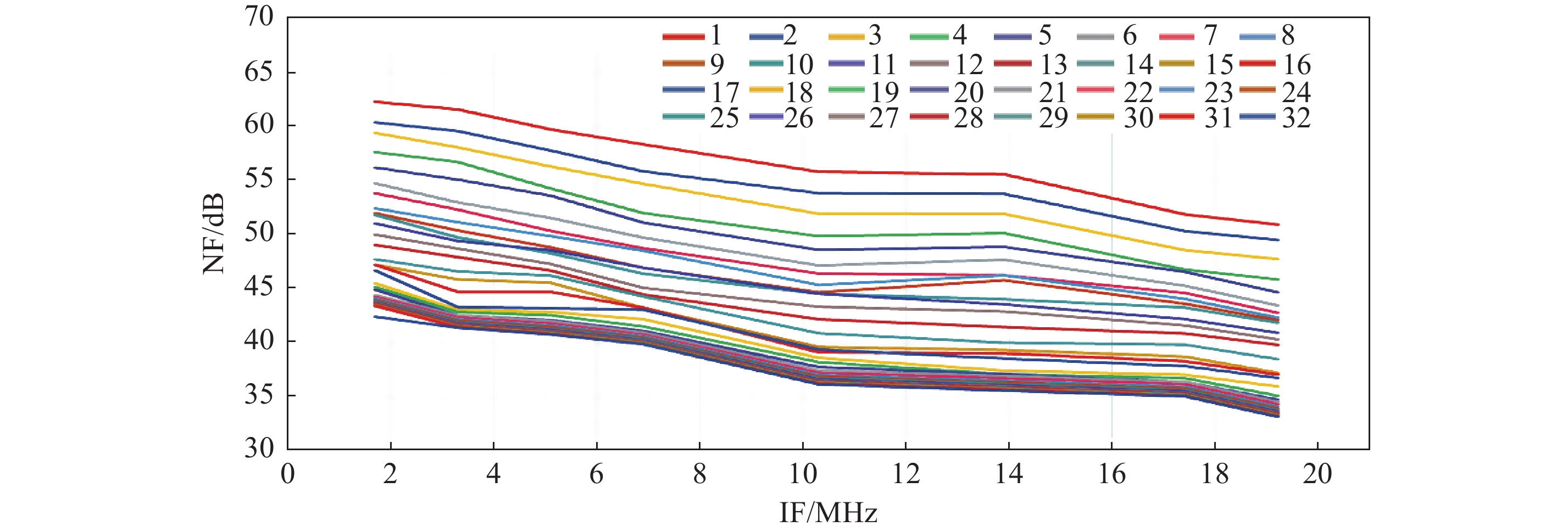

Fig.18

Fig.19

Table 1

References 13

1	MA T K, DENG W, CHEN Z P, et al.. A CMOS 76–81-GHz 2-TX 3-RX FMCW radar transceiver based on mixed-mode PLL chirp generator. IEEE Journal of Solid-State Circuits, 2020, 55 (2): 233- 248.
2	MITOMO T, ONO N, HOSHINO H, et al.. A 77 GHz 90 nm CMOS transceiver for FMCW radar applications. IEEE Journal of Solid-State Circuits, 2010, 45 (4): 928- 937.
3	RETZ G, SHANAN H, MULVANEY K, et al.. Radio transceivers for wireless personal area networks using IEEE802.15.4. IEEE Communications Magazine, 2009, 47 (9): 150- 158.
4	WU B W, DUAN Z M, PAN D F, et al. A high-linearity CMOS analog baseband circuit with reconfigurable gain and bandwidth for 76-81GHz automotive radar [C]// 2018 14th IEEE International Conference on Solid-State and Integrated Circuit Technology (ICSICT). IEEE, 2018: 1-3.
5	WU B W, DUAN Z M, WANG Y, et al. A digitally controlled CMOS analog baseband circuit with low noise for 76-81GHz automotive radar [C]// 2019 IEEE 4th International Conference on Integrated Circuits and Microsystems (ICICM). IEEE, 2020: 20-23.
6	JIN J, LIU X M, ZHOU J J.. A 0.25-dB-step, 68-dB-dynamic range analog baseband with digitally assisted DCOC and AGC for multi-standard TV applications. IEEE Transactions on Circuits and Systems Ⅱ: Express Briefs, 2019, 66 (10): 1623- 1627.
7	MAK P I, SENG-PAN U, MARTINS R P.. On the design of a programmable-gain amplifier with built-in compact DC-offset cancellers for very low-voltage WLAN systems. IEEE Transactions on Circuits and Systems Ⅰ: Regular Papers, 2008, 55 (2): 496- 509.
8	THANDRI B K, SILVA-MARTINEZ J.. A robust feedforward compensation scheme for multistage operational transconductance amplifiers with no Miller capacitors. IEEE Journal of Solid-State Circuits, 2003, 38 (2): 237- 243.
9	MOHYELDEEN R, SAEED A. Design and simulation of a feedforward AGC loop for bluetooth-low-energy receiver [C]// 2023 5th Novel Intelligent and Leading Emerging Sciences Conference (NILES). IEEE, 2023: 322-326.
10	GUO H W, LI Z Q, MIAO A Y, et al. An automatic gain control amplifier with linear-in-dB gain in 22nm CMOS [C]// 2021 6th International Conference on Integrated Circuits and Microsystems (ICICM). IEEE, 2021: 272-275.
11	SHIN S H, KWEON S J, JO S H, et al.. A 0.7-MHz–10-MHz CT+DT hybrid baseband chain with improved passband flatness for LTE application. IEEE Transactions on Circuits and Systems Ⅰ: Regular Papers, 2015, 62 (1): 244- 253.
12	WU W P, ZHANG L, WANG Y.. A PVT-robust analog baseband with DC offset cancellation for FMCW automotive radar. IEEE Access, 2019, 7, 43249- 43257.
13	LEO C J, KUMARASAMY RAJA M, ZHONG Z G. Analog baseband for a 76-81 GHz FMCW automotive radar receiver [C]// IECON 2020 The 46th Annual Conference of the IEEE Industrial Electronics Society. IEEE, 2020: 2007-2010.

参考文献	工艺尺寸/nm	增益调谐范围/dB	中频带宽/MHz	噪声系数/dB	增益步长/dB	稳定时间/μs
[4]	65	0~42	0.1~5	18.9@5 MHz	/	/
[5]	65	10~52	0.15~15	15.3@15 MHz	6	100
[10]	22	3~45	800~1000	/	/	200
[11]	65	0~53.5	0.7~10	35.5@10 MHz	0.5	800
[12]	65	18.2~70.6	0.2~10	/	5.8	/
[13]	40	24~50	0.175~10/15	18.26@5 MHz	2	/
本文	55	10~57	0.4~20	42.4@0.4MHz 33.1@20MHz	2.5	≤160
