A high-power wideband digital Doherty power amplifier for Wi-Fi 6

doi:10.3969/j.issn.1000-5641.2026.02.004

Abstract

Abstract:

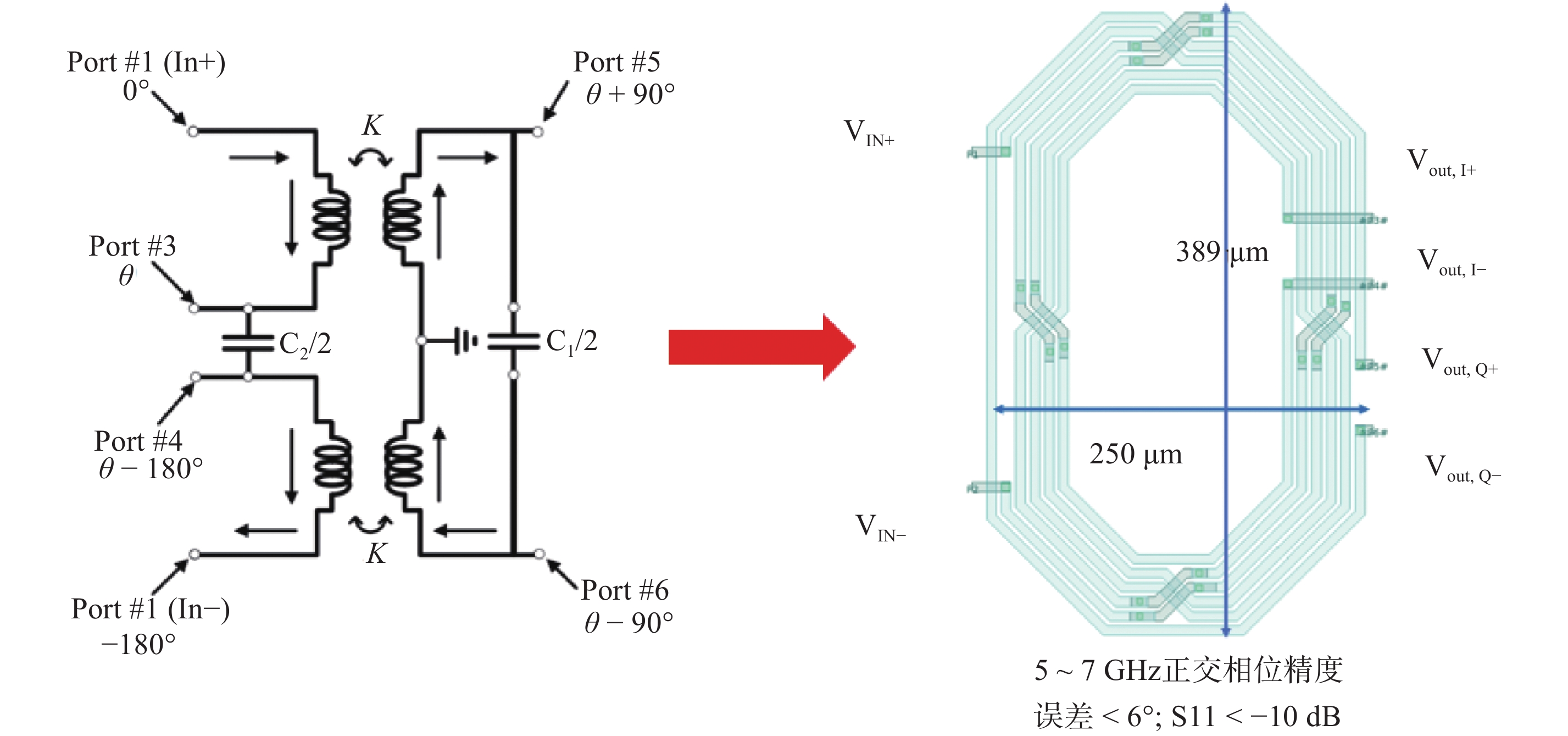

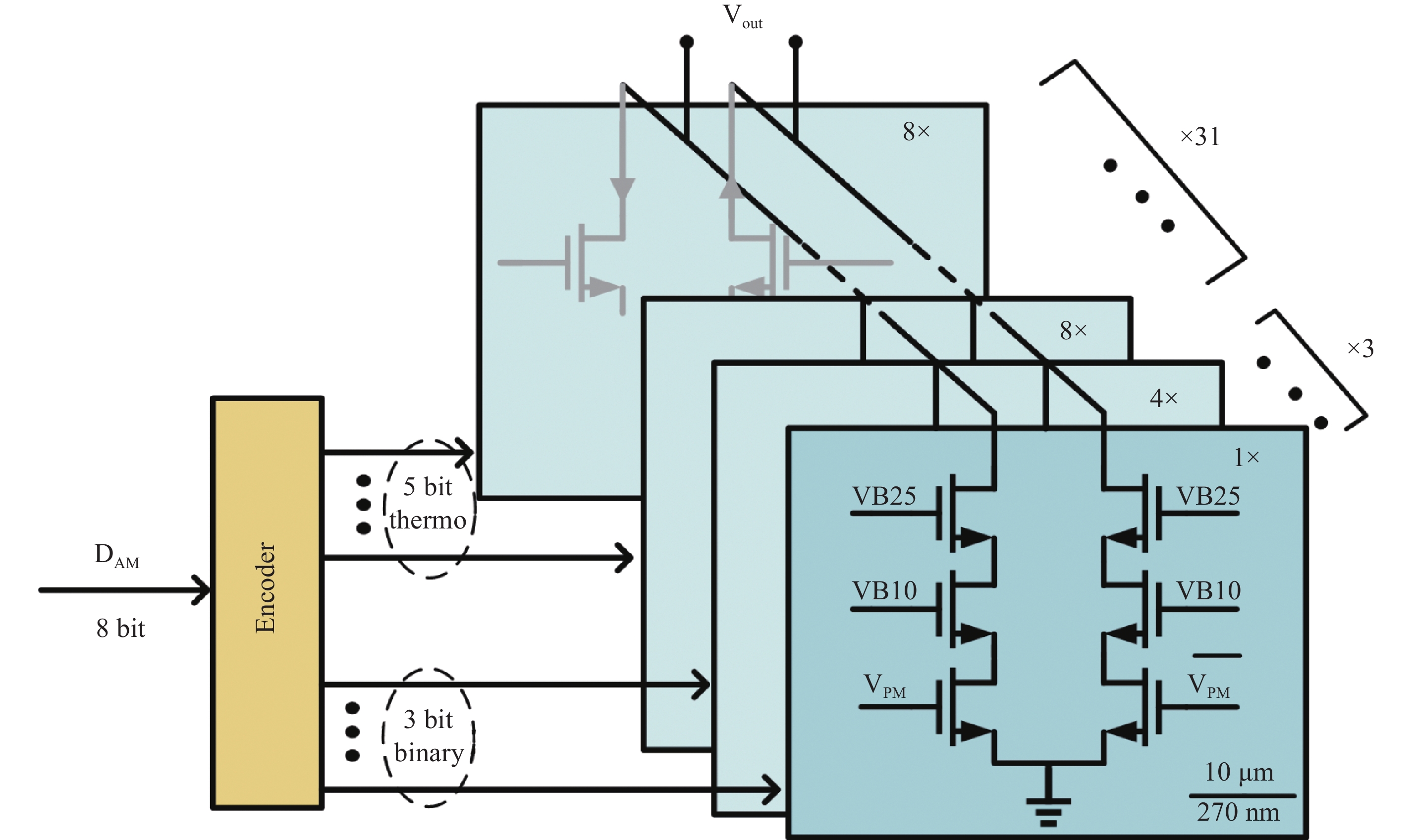

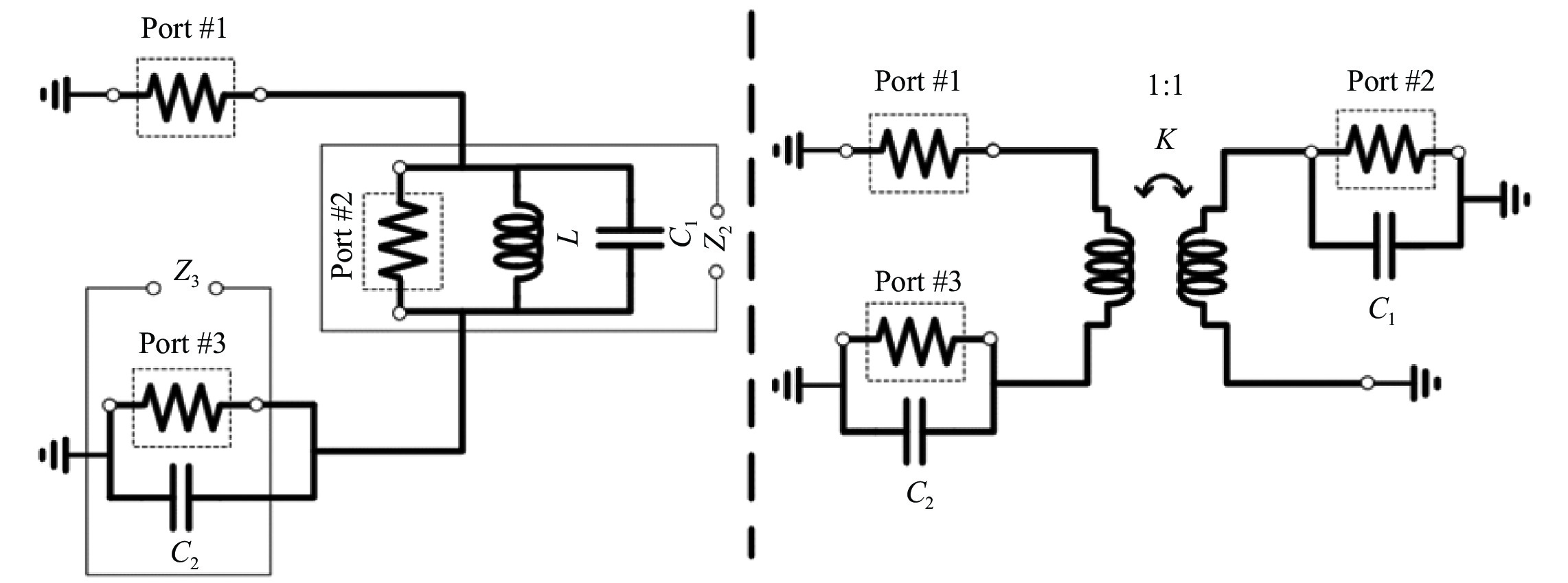

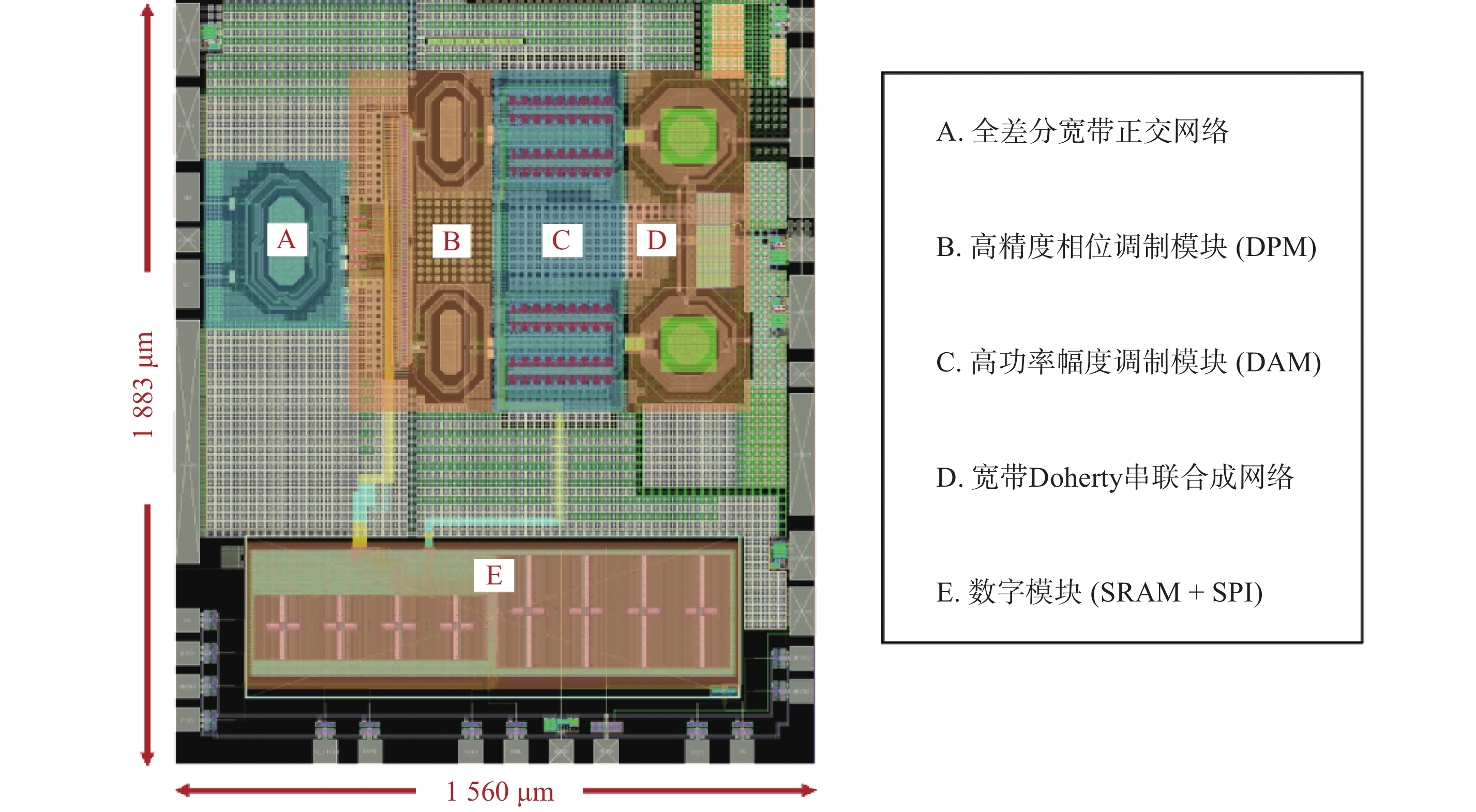

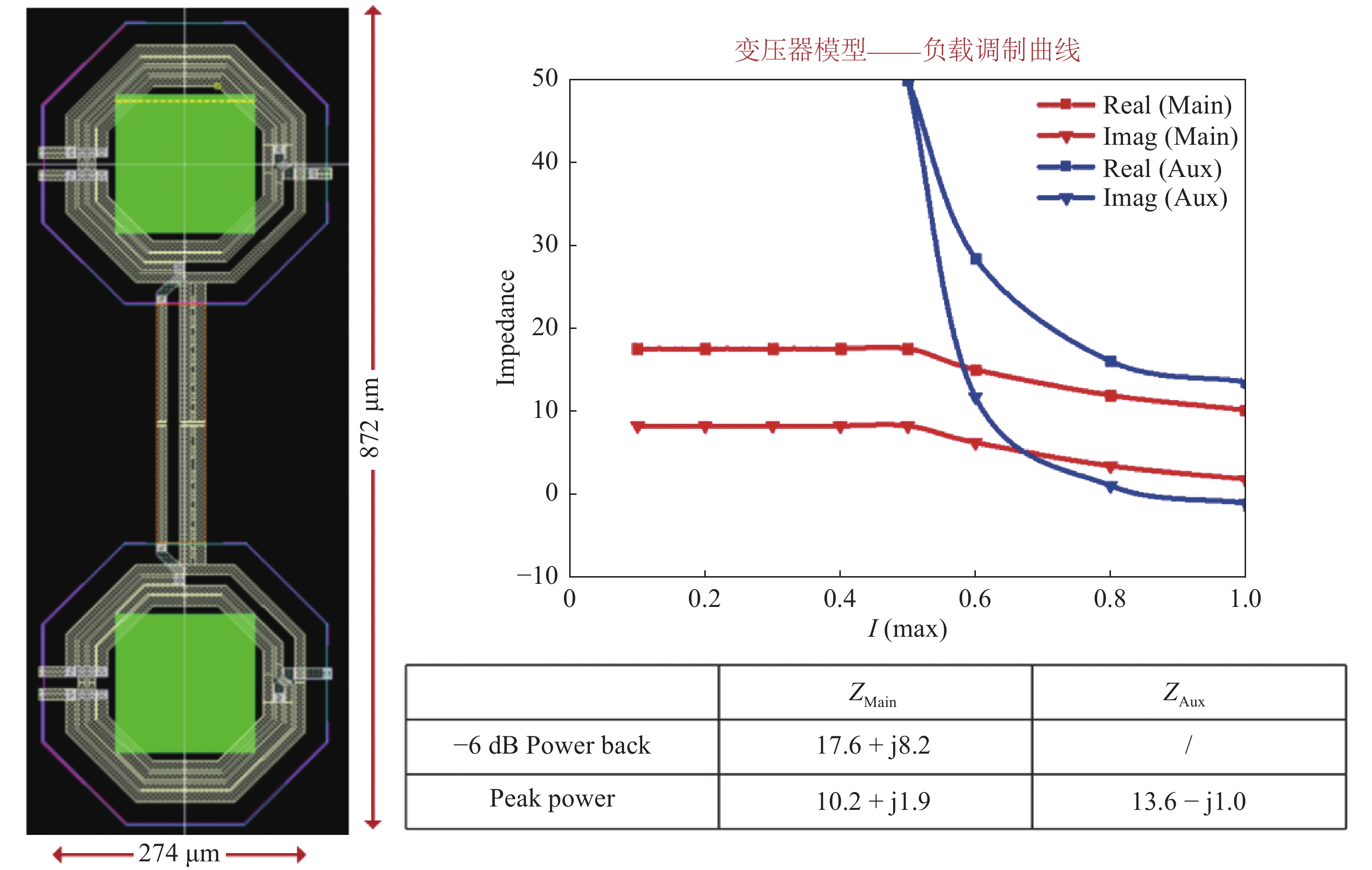

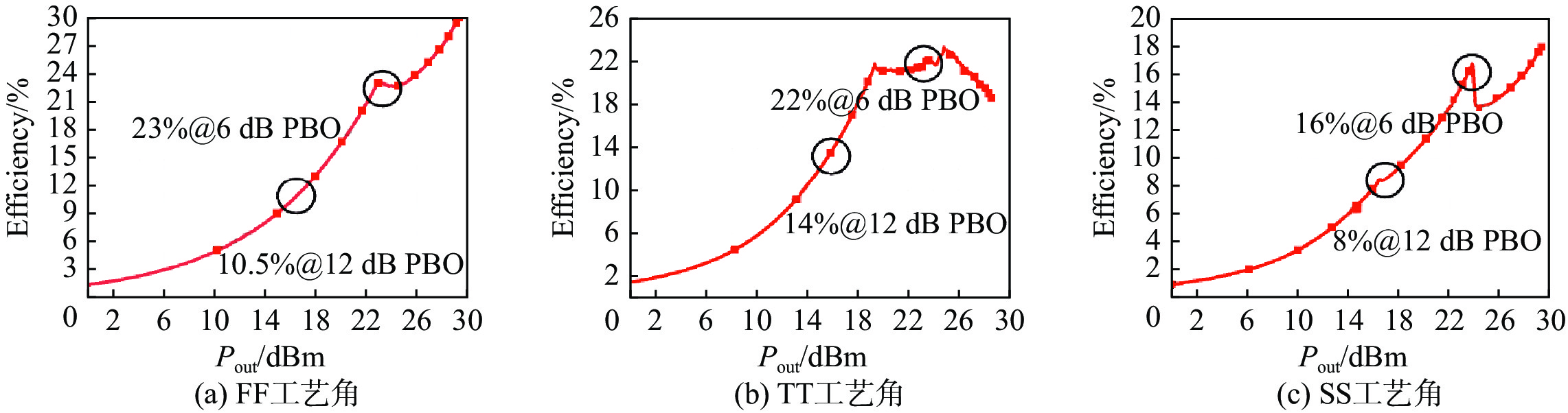

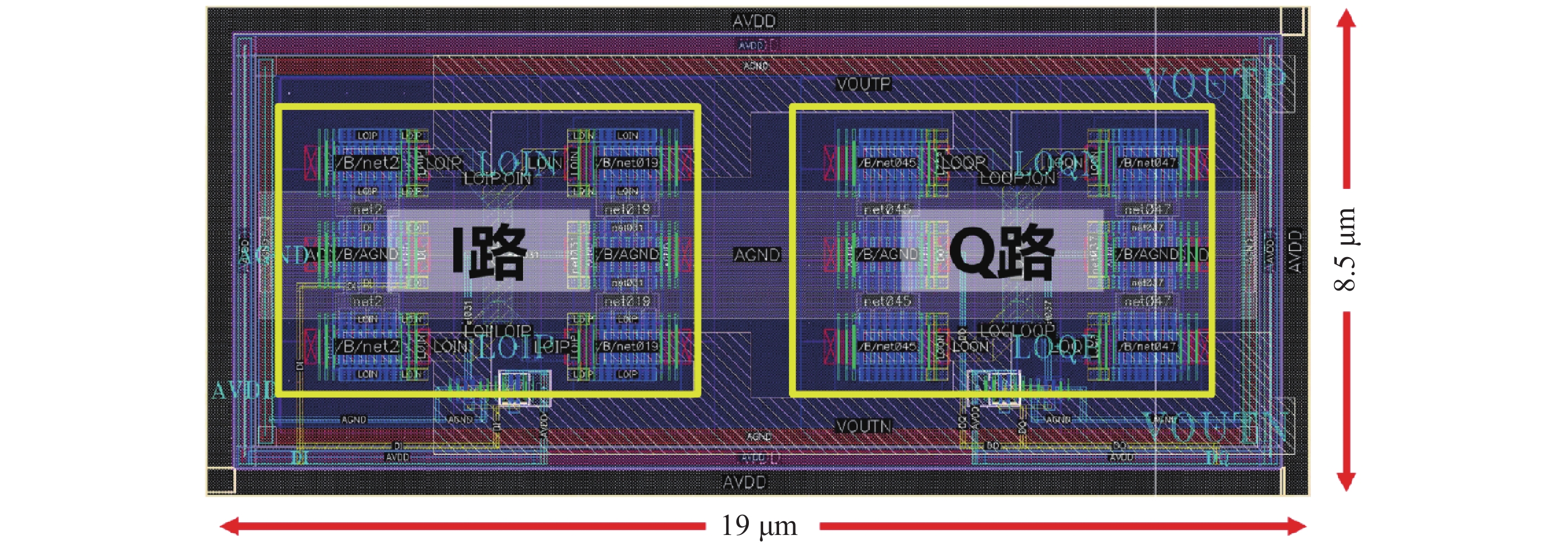

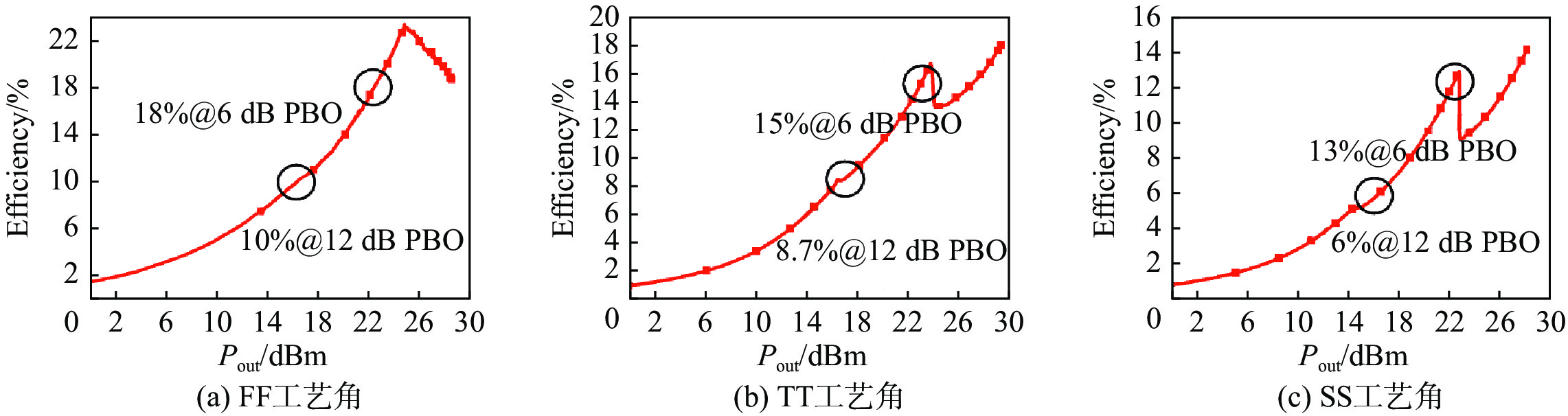

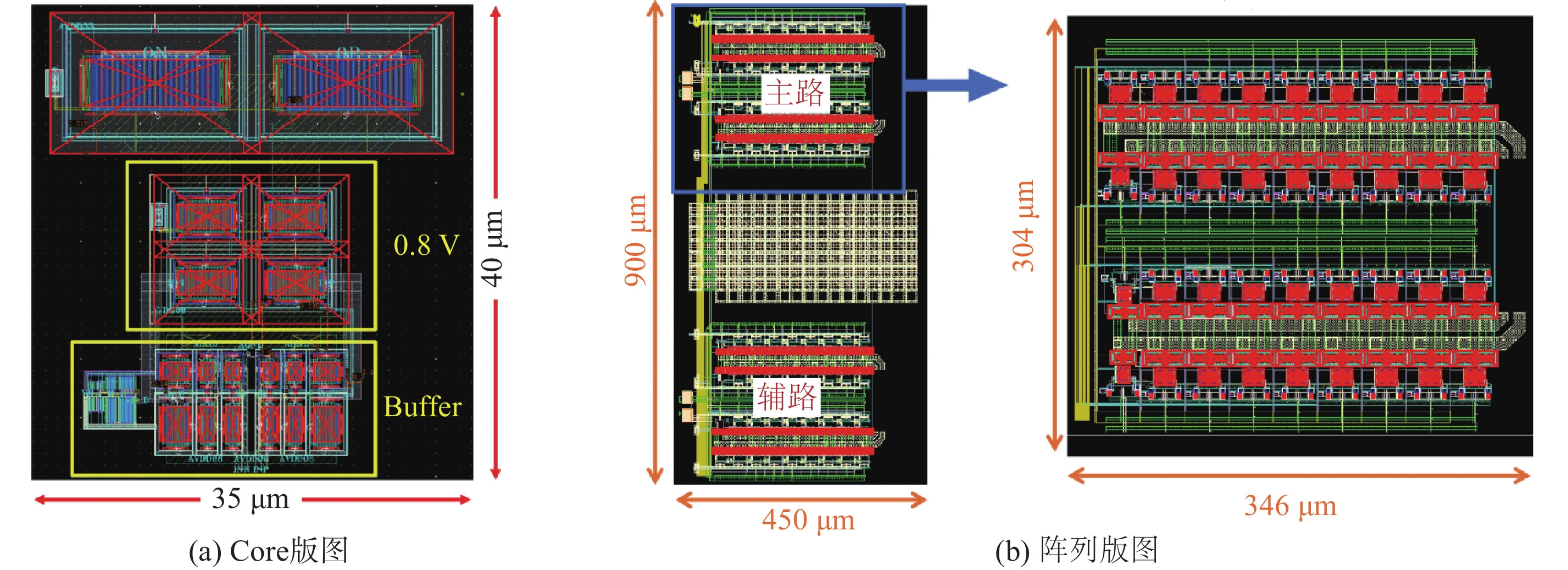

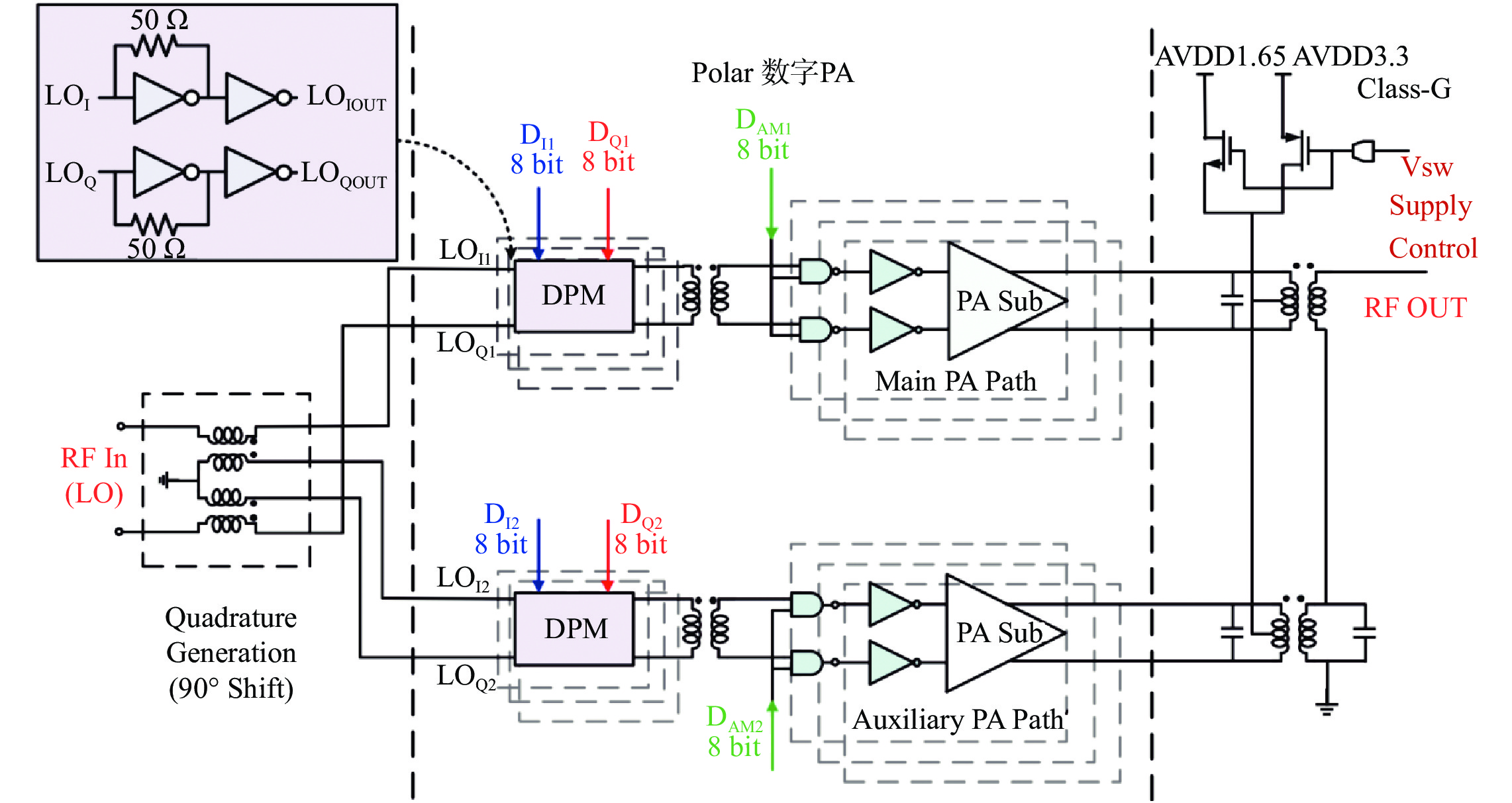

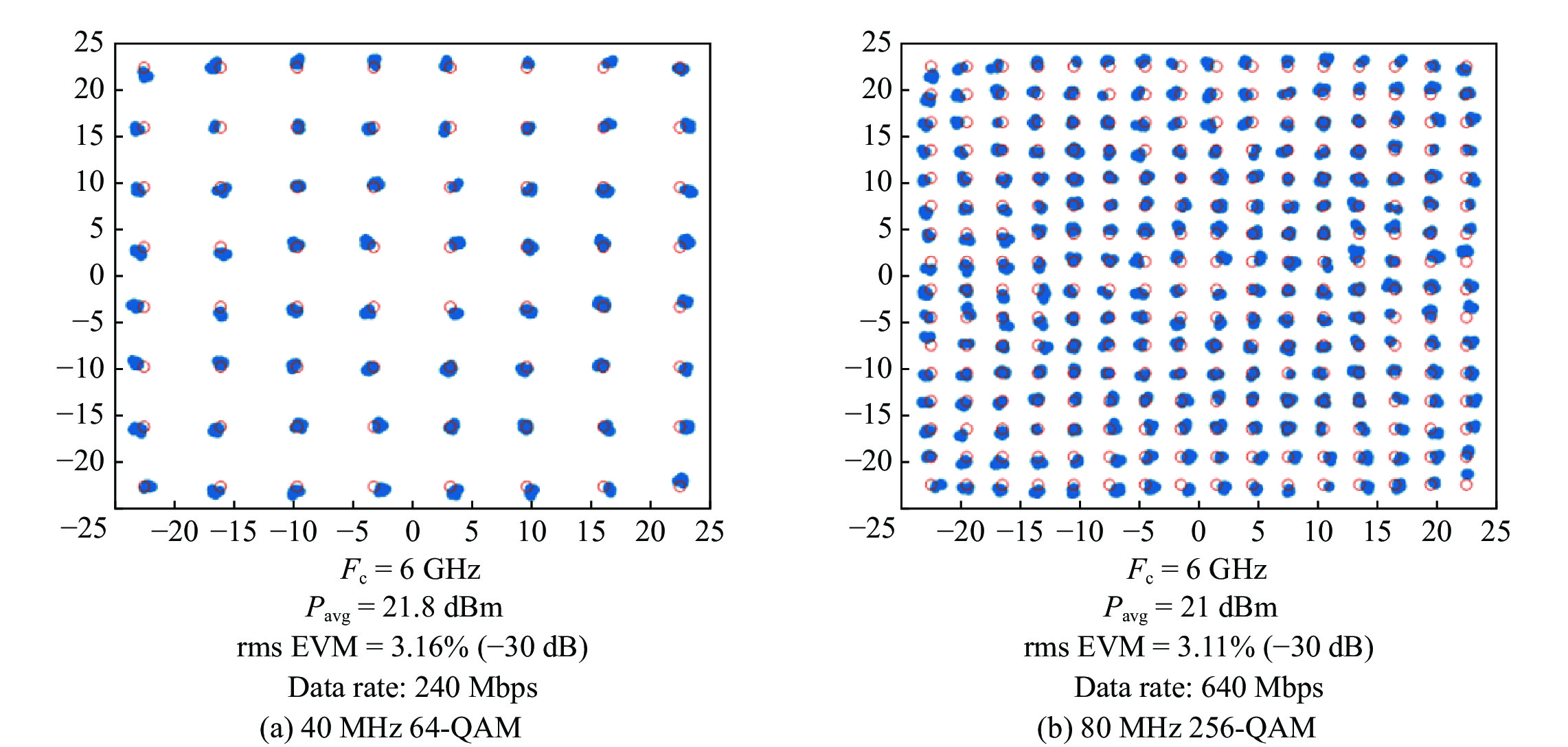

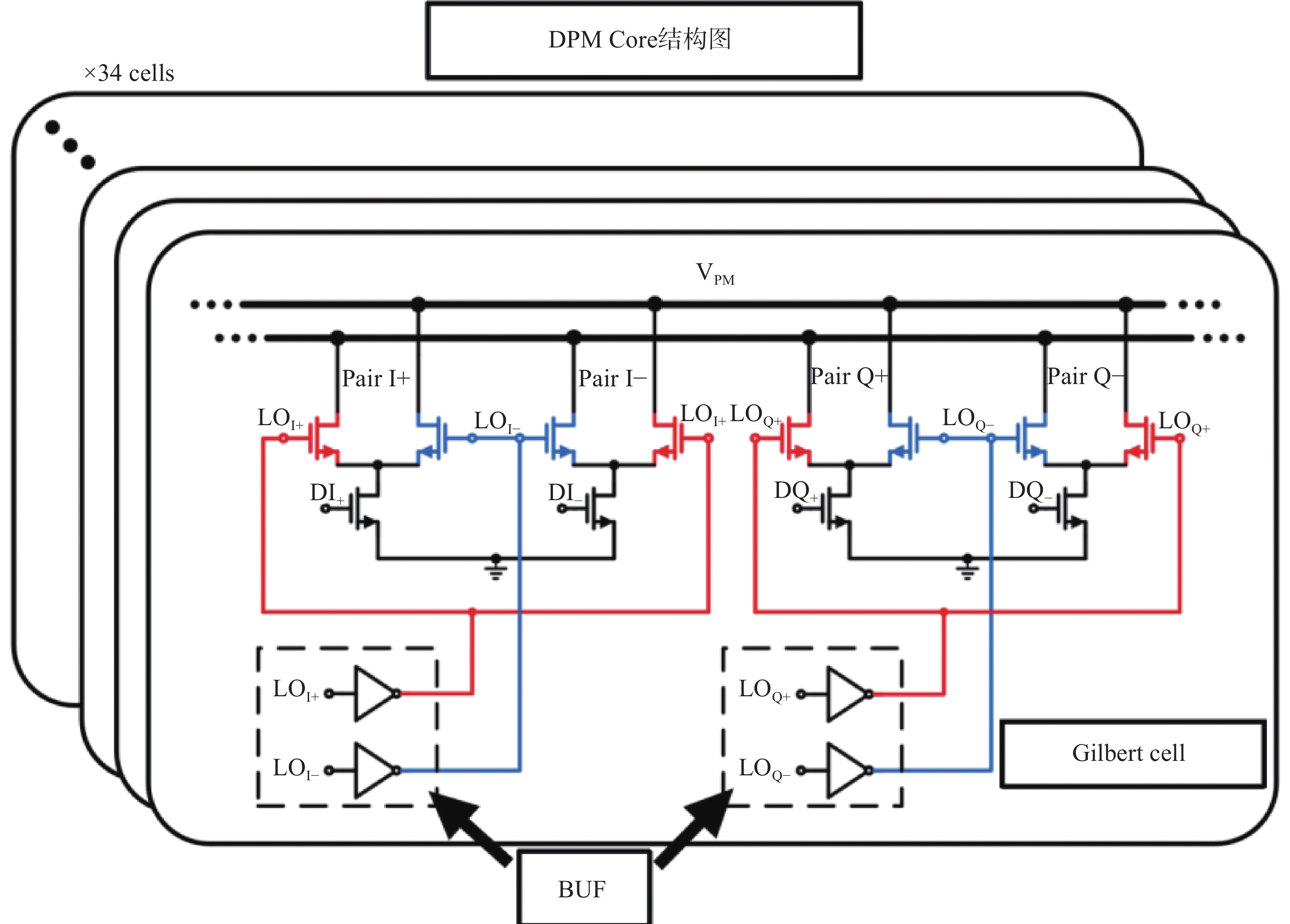

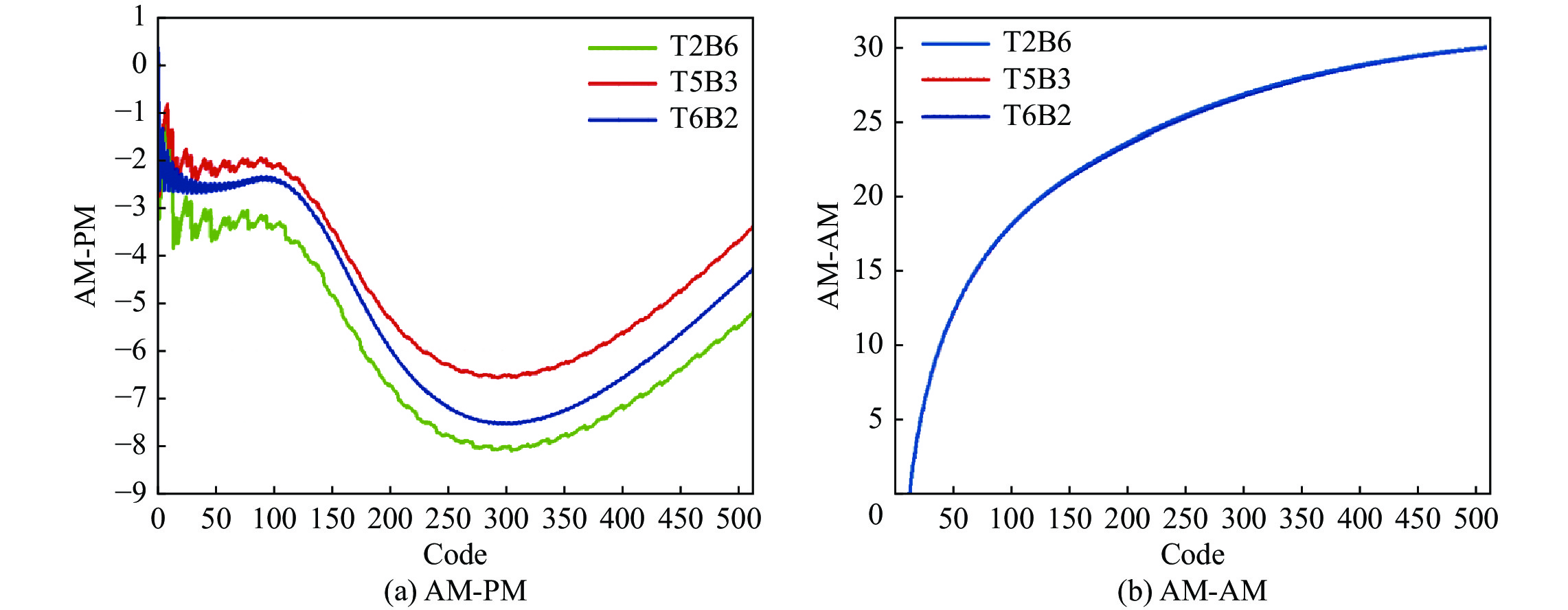

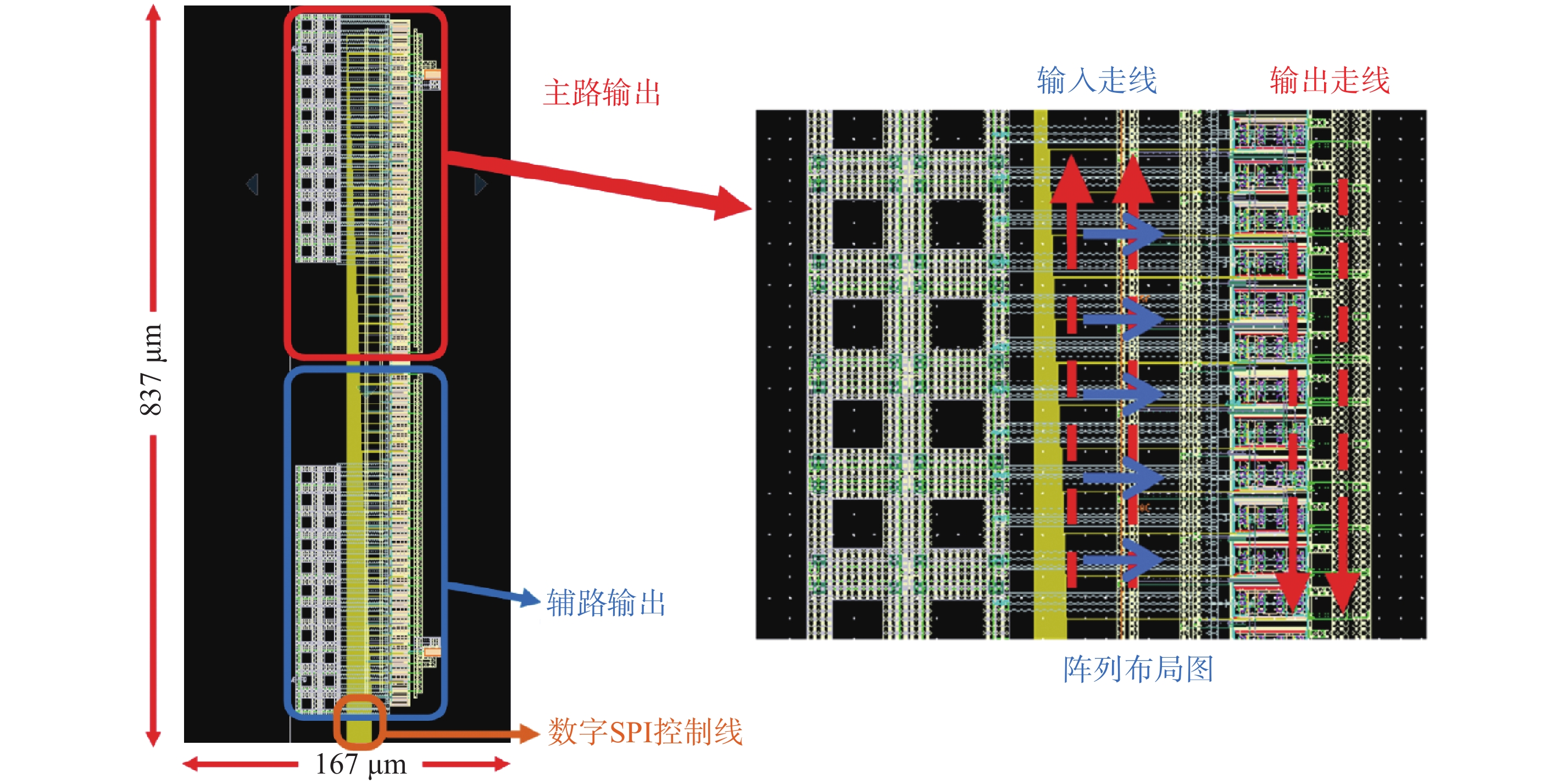

In this study, we propose a class-G high-power broadband digital Doherty power amplifier (DPA) for Wi-Fi 6 applications, operating from 5.125 to 7.125 GHz. The proposed DPA is based on a polar architecture that combines Doherty load modulation with class-G amplification to achieve optimal efficiency, and it is fabricated using a 22-nm complementary metal-oxide-semiconductor (CMOS) process. At the output, a λ/4 transmission line-integrated transformer-based combining network minimizes insertion loss and enables watt-level output with an 8-bit amplitude modulation module. The results of post-layout simulations showed a saturated output power of 29 dBm, a peak power-added efficiency (PAE) of 23%, and 6- and 12-dB back-off PAEs of 22% and 13%, respectively. For an 80-MHz 256-quadrature amplitude modulation (256-QAM) signal, the DPA delivers an average output power of 21 dBm with an error vector magnitude (EVM) of –30 dB. It also achieves a phase error of less than 6° across a 2-GHz bandwidth via a compact fully differential broadband quadrature input network with an 8-bit phase modulation module. Thus, the proposed DPA meets the wideband, high-efficiency and high-linearity requirements of Wi-Fi 6 systems.

Key words: digital power amplifier, Doherty, power combiner, power back-off (PBO) efficiency, Wi-Fi 6

CLC Number:

TN432

Kangjie ZHAO, Can LIU, Runxi ZHANG. A high-power wideband digital Doherty power amplifier for Wi-Fi 6[J]. J* E* C* N* U* N* S*, 2026, 2026(2): 35-47.

Figures/Tables 15

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Table 1

References 14

1	华为技术有限公司. 华为Wi-Fi 6 (802.11ax) 技术白皮书 [R/OL]. 2019. https://e.huawei.com/cn/documents/products/enterprise-network/b3f46485597c4d72b43a6a27c6480646.
2	LIU B, QUAN X, BOON C C, et al.. Reconfigurable 2.4-/ 5-GHz dual-band transmitter front-end supporting 1024-QAM for WLAN 802.11ax application in 40-nm CMOS. IEEE Transactions on Microwave Theory and Techniques, 2020, 68 (9): 4018- 4030.
3	BEN-BASSAT A, GROSS S, LANE A, et al.. A fully integrated 27-dBm dual-band all-digital polar transmitter supporting 160 MHz for Wi-Fi 6 applications. IEEE Journal of Solid-State Circuits, 2020, 55 (12): 3414- 3425.
4	LU E, LI W K, DENG Z M, et al. A 4×4 dual-band dual-concurrent WiFi 802.11ax transceiver with integrated LNA, PA and T/R switch achieving +20dBm 1024-QAM MCS11 P_out and –43dB EVM floor in 55nm CMOS [C]// 2020 IEEE International Solid- State Circuits Conference (ISSCC). IEEE, 2020: 178-180.
5	KHAMAISI B, BEN-HAIM D, NAZIMOV A, et al. A 16nm, +28dBm dual-band all-digital polar transmitter based on 4-core digital PA for Wi-Fi6E applications [C]// 2022 IEEE International Solid-State Circuits Conference (ISSCC). IEEE, 2022: 324-326.
6	CHEE Y H, GOLCUK F, MATSUURA T, et al. 17.1 A digitally assisted CMOS WiFi 802.11ac/11ax front-end module achieving 12% PA efficiency at 20dBm output power with 160MHz 256-QAM OFDM signal [C]// 2017 IEEE International Solid-State Circuits Conference (ISSCC). IEEE, 2017: 292-293.
7	LU Y. Design and analysis of digitally modulated transmitters for efficiency enhancement [D]. Berkeley, CA, USA: University of California, Berkeley, 2013: 77-79.
8	RAZAVI B. RF Microelectronics(射频微电子) [M]. 北京: 清华大学出版社, 2012: 128-180.
9	YOO S M, WALLING J S, WOO E C, et al.. A switched-capacitor RF power amplifier. IEEE Journal of Solid-State Circuits, 2011, 46 (12): 2977- 2987.
10	YOO S M, WALLING J S, DEGANI O, et al.. A class-G switched-capacitor RF power amplifier. IEEE Journal of Solid-State Circuits, 2013, 48 (5): 1212- 1224.
11	LI J X, LI Z M, YIN Y, et al. 4.4 a highly-integrated 6-phase cell-reused digital transmitter using 1/3 duty-cycle LO signals for harmonic rejection [C]// 2024 IEEE International Solid-State Circuits Conference (ISSCC). IEEE, 2024: 82-84.
12	BEVILACQUA A.. Fundamentals of integrated transformers: From principles to applications. IEEE Solid-State Circuits Magazine, 2020, 12 (4): 86- 100.
13	MIN B W, REBEIZ G M.. Single-ended and differential Ka-band BiCMOS phased array front-ends. IEEE Journal of Solid-State Circuits, 2008, 43 (10): 2239- 2250.
14	YANG B Z, QIAN H J, LUO X. 26.5 a watt-level quadrature switched/floated-capacitor power amplifier with back-off efficiency enhancement in complex domain using reconfigurable self-coupling canceling transformer [C]// 2021 IEEE International Solid-State Circuits Conference (ISSCC). IEEE, 2021: 362-364.

Reference	Process/ nm	Architecture	Freq./GHz	PSat/ dBm	Peak SE/%	PBO SE	P_avg/dBm	Modulation	EVM/dB	VDD/V
This work	22	Digital IQ Doherty	5.125~7.125	29	23	22% @6dB/ 13% @12dB	21 @256-QAM/ 21.8 @64-QAM	64-QAM/ 256-QAM	–30	0.9/3.3
JSSC 2020^[3]	28	Digital Polar	5~6	27	–	26% @6dB	21 @1024-QAM	1024-QAM	–35	1.4
ISSCC 2020^[4]	55	Analog	2.4/5~6	28.5/29	–	–	20	1024-QAM	–35	3.3
ISSCC 2022^[5]	40	Digital IQ	5~7.125	28	28.5	15% @6dB	17.8 @5G 1024-QAM	1024-QAM	–35	1.2
ISSCC 2024^[11]	28	Digital IQ	0.8~2.4	28.3	41	–	24.2 @64-QAM 22.5 @64-QAM	64-QAM	–28	1.1/2.2
